3.10 SituProbe
For complete information on SituProbe methods, see Chapter 14, SituProbe . For
instructions on setting up the SituProbe, refer to Section 2.7, SituProbe, on page
2-24 .
3.10.1 Procedure for SituProbe Operation
1 Verify that the desired sample configuration is installed (i.e., Concentrator).
2 Make sure that the Transfer Line is installed.
3 When powered on or taken out of Extended Standby, the HAPSITE will
automatically start preparing a SituProbe method. If the SituProbe method that
the HAPSITE begins preparing is not the desired one, refer to
Section 3.2,
Selecting a Different Method Using the SELECT METHOD Icon, on page 3-13 .
4 The HAPSITE will display the progress of its preparation. Refer to section
Chapter 3 , Step 5 for more information.
5 If using the water vessel, fill the vessel to the top of the outlet connection. See
Figure 3-120 .

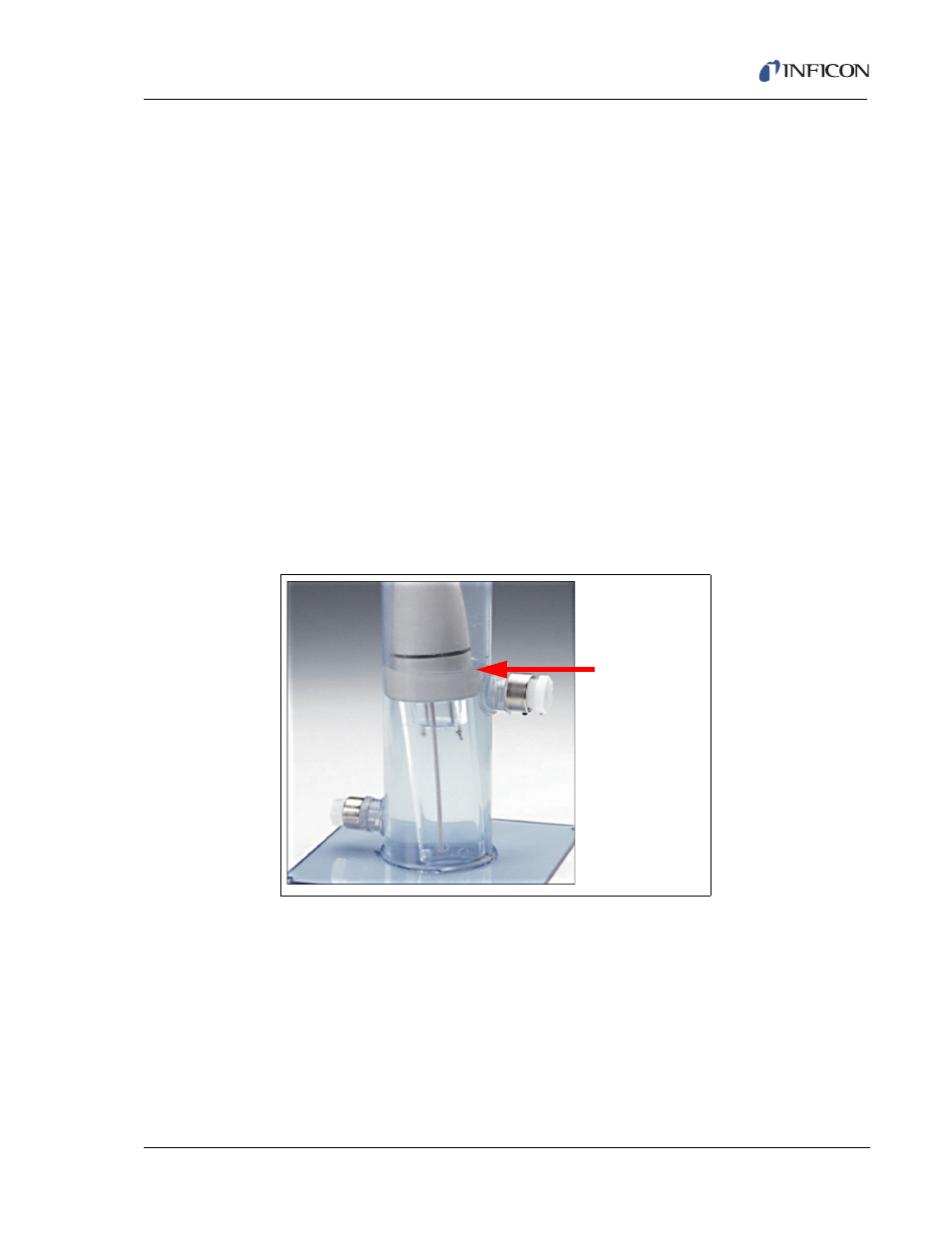

Figure 3-120 SituProbe Vessel
6 Insert probe into vessel or water source.
6a If running a SituProbe method that requires a Concentrator, the HAPSITE will
run a Concentrator Cleanout. Its progress will be shown by a bar graph. If the
Concentrator Cleanout is not successful, refer to
section 3.1.3 on page 3-11 .
7 When the HAPSITE has finished preparing, a SYSTEM IS READY message
will appear with a prompt to press Survey or Analyze to begin sampling.
NOTE: A blank run is recommended before running a sample.
Top Of Outlet
Connection
