HAPSITE ER Operating Manual
3.7.1.5.1 TUNE REPORTS
When the TUNE STATUS icon has been touched, see Figure 3-93 , a button, TUNE
REPORT, will be shown at the bottom of the screen. This button accesses data
from the last Tune Report. See
Figure 3-94 . For more information on Tune Reports,
see Chapter 6, Tune .

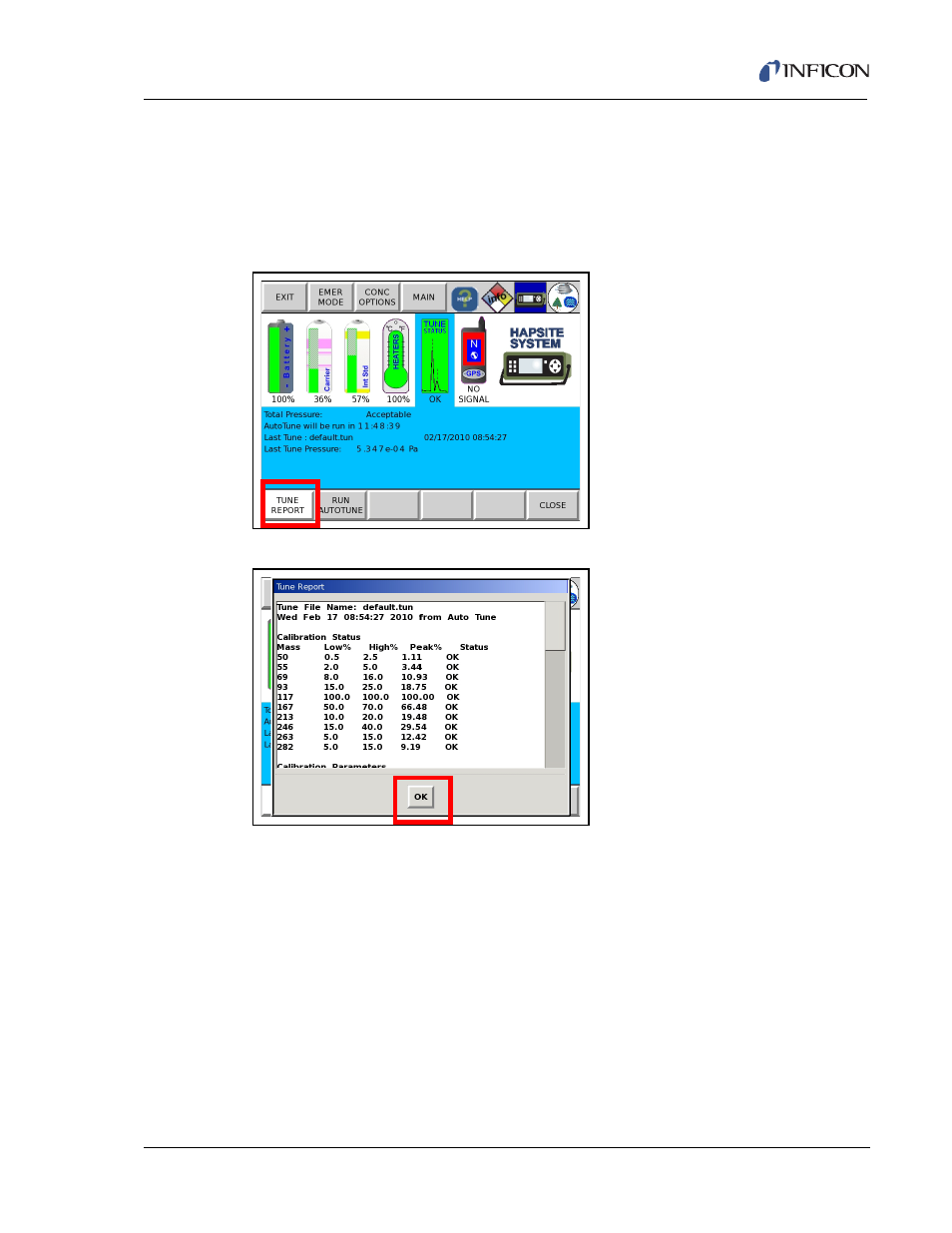

Figure 3-93 Tune Status Icon
Figure 3-94 Tune Report
