HAPSITE ER Operating Manual
3.5.1 View Results/View Reports
Data files and reports can be viewed from the main front panel screen or from the
sample analysis screen. Follow the instructions below to

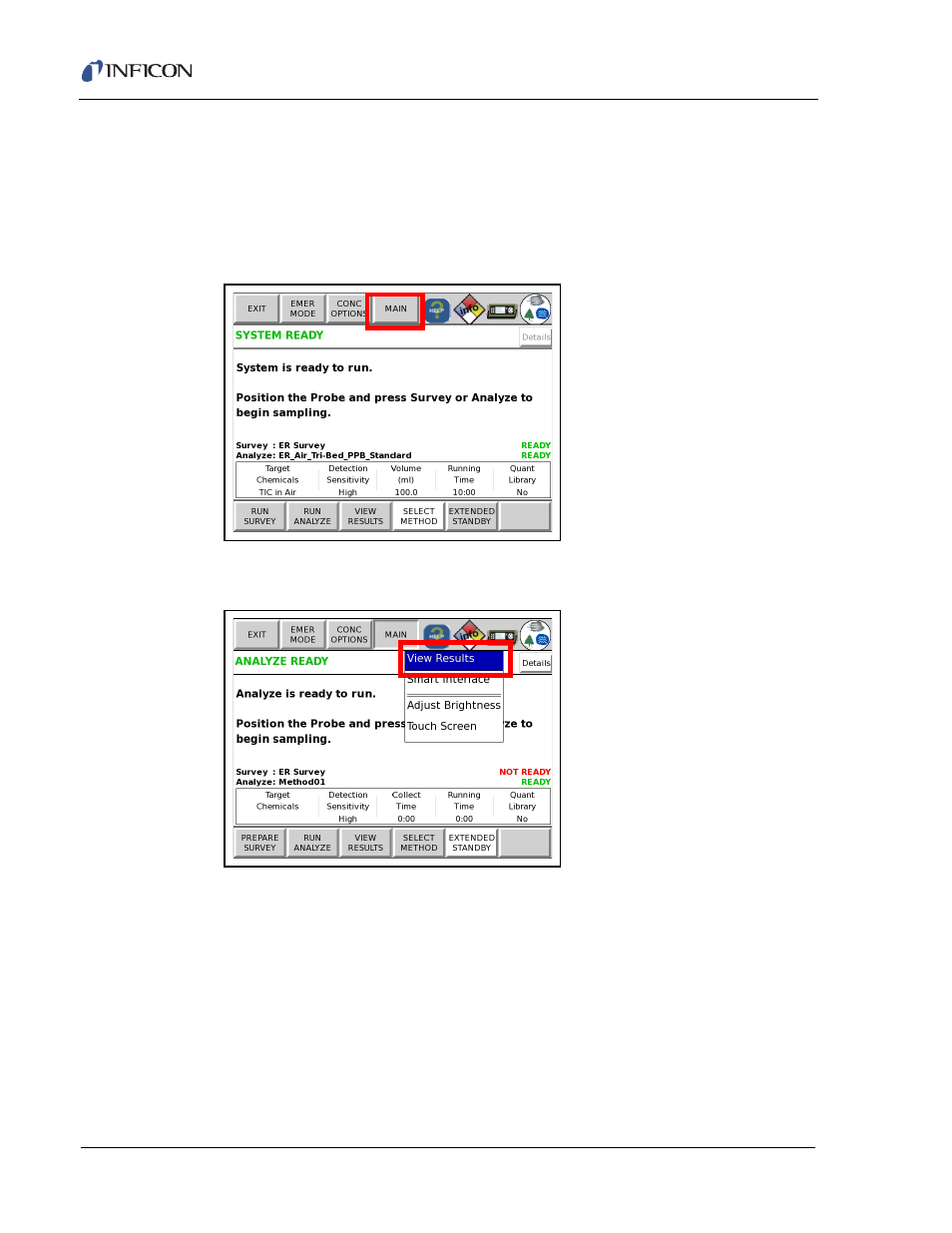

1 To access data files and reports from the main screen, touch MAIN. See Figure
3-51 .
Figure 3-51 MAIN
2 Touch View Results. See Figure 3-52 .
Figure 3-52 View Results
3 The most recent file for the selected method will appear on the screen. Use the
black, touch screen arrow keys to access other data files from the same
method. See
Figure 3-55 . If using the push buttons, use the front panel arrow
keys. The left arrow key will access earlier files. The right arrow key will
access later ones. See
Figure 3-53 .
