HAPSITE ER Operating Manual
7.5.8 Right Mouse Button (RMB) Menus
In addition to the functions described above, the following menu items are available
by pressing the Right Mouse Button (RMB).
7.5.8.1 RMB in Scan Window
Placing the Mouse Cursor in the Peak Scan or Full Scan Window and pressing the
RMB displays the menu shown in
Figure 7-25 .

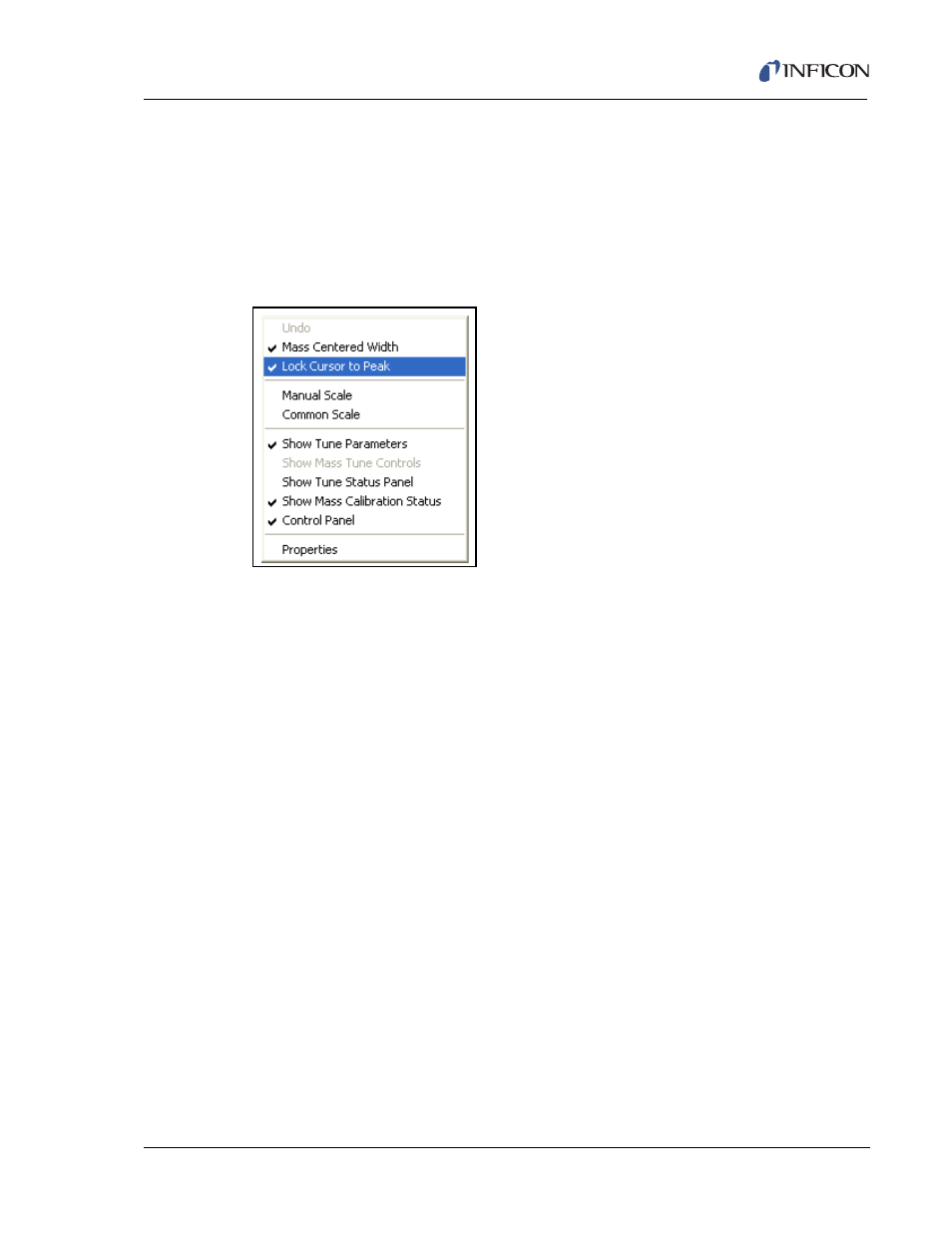

Figure 7-25 Scan Window Options
Undo . . . . . . . . . . . . . . . . . . . . . . . . Undoes the last function.
Mass Centered Width. . . . . . . . . . . Width in AMU that correctly aligns the
calibration peak with the correct position on
the mass axis.
Lock Cursor to Peak . . . . . . . . . . . Locks the cursor to the mass peak for
adjustment of mass position.
Manual Scale. . . . . . . . . . . . . . . . . . Allows the mass peak windows to be set to
user defined scale.
Common Scale . . . . . . . . . . . . . . . . Sets the mass peak scan windows to a
common scale based on mass 117.
Show Tune Parameters . . . . . . . . . Displays the EM voltage, Ionizer Control,
Baseline, Threshold and Rod Polarity
settings on the Control Panel.
Show Mass Tune Controls . . . . . . Displays the mass tune controls on the mass
peak scan windows.
Show Tune Status Panel . . . . . . . . Displays the Tune Status panel.
Show Mass Calibration Status . . . Displays the Mass Calibration Status control
panel.
Control Panel . . . . . . . . . . . . . . . . . Displays the Control Panel.
Properties . . . . . . . . . . . . . . . . . . . . Displays the Properties window.
