HAPSITE ER Operating Manual
12a The CMPD ID screen can also be accessed by using the arrow keys to
highlight CMPD ID and pushing OK SEL. See
Figure 3-116 .

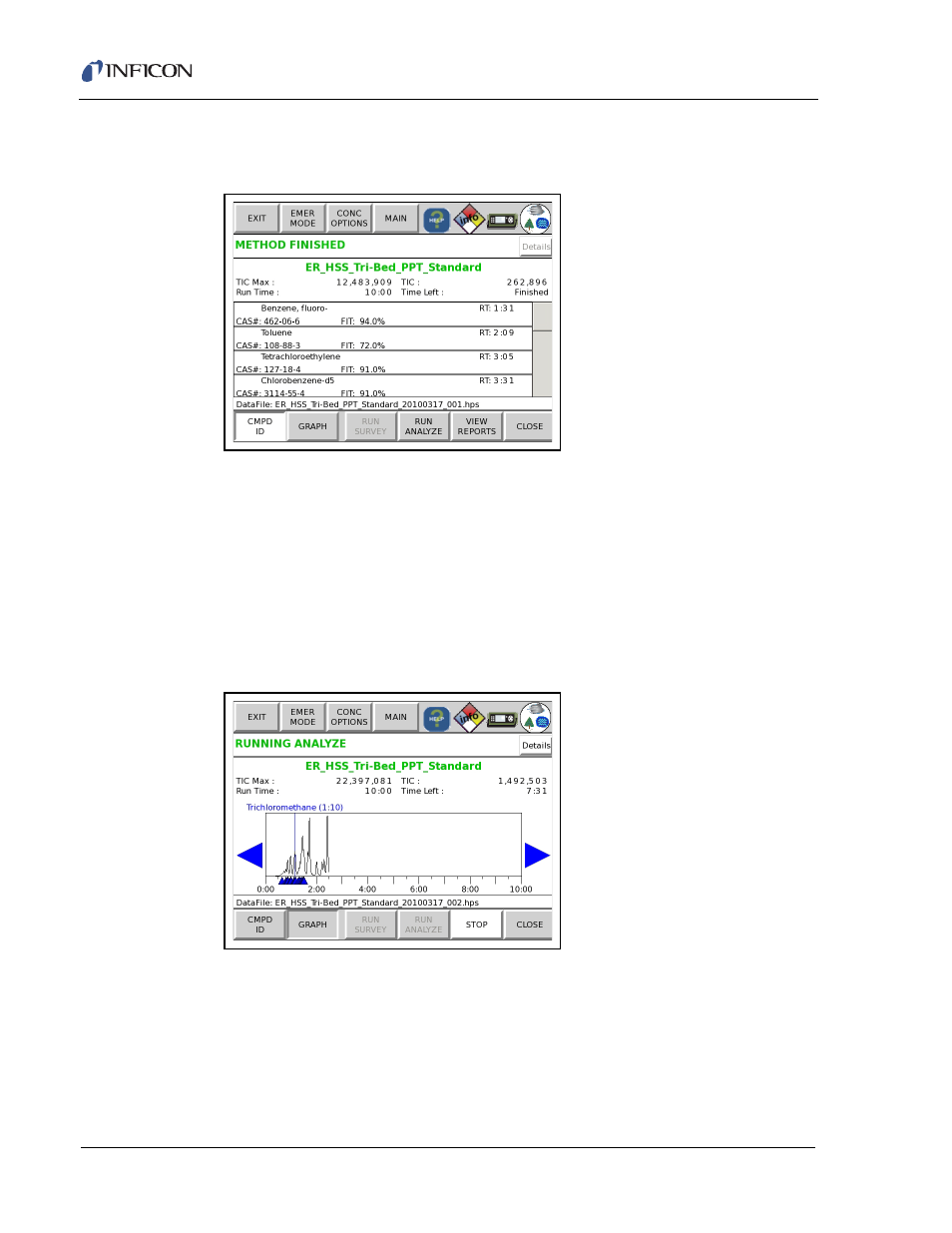

Figure 3-116 Sample Compound ID View for HSS
13 To view the chromatogram while the method is running, touch GRAPH. See
Figure 3-117 . Alternately, use the arrow keys to highlight GRAPH. Push OK
SEL.
NOTE: This screen will also state the TIC Max, the current TIC Count and the
time remaining.
NOTE: Touching the blue compound identification above the chromatogram
will display its NIOSH database information. Refer to Section 3.7, The
Info Icon, on page 3-42 .
Figure 3-117 Sample Chromatogram View for HSS
