HAPSITE ER Operating Manual
2.2.5 Connect Laptop (if desired)
The HAPSITE ER has two possible configurations for connecting to a Laptop
computer. The one configuration is via the black crossover cable and the other
configuration is the wireless connection.
2.2.5.1 Connect Laptop with Black Crossover Cable
Unscrew the cap on the port that is located on the top, left-hand side of the
HAPSITE. Plug in the black crossover cable into this port. The opposite end plugs
into the COM1 port on the Laptop computer. Once connected, the crossover cable
provides the communication connection between the HAPSITE and Laptop
computer. See
Figure 2-9
.

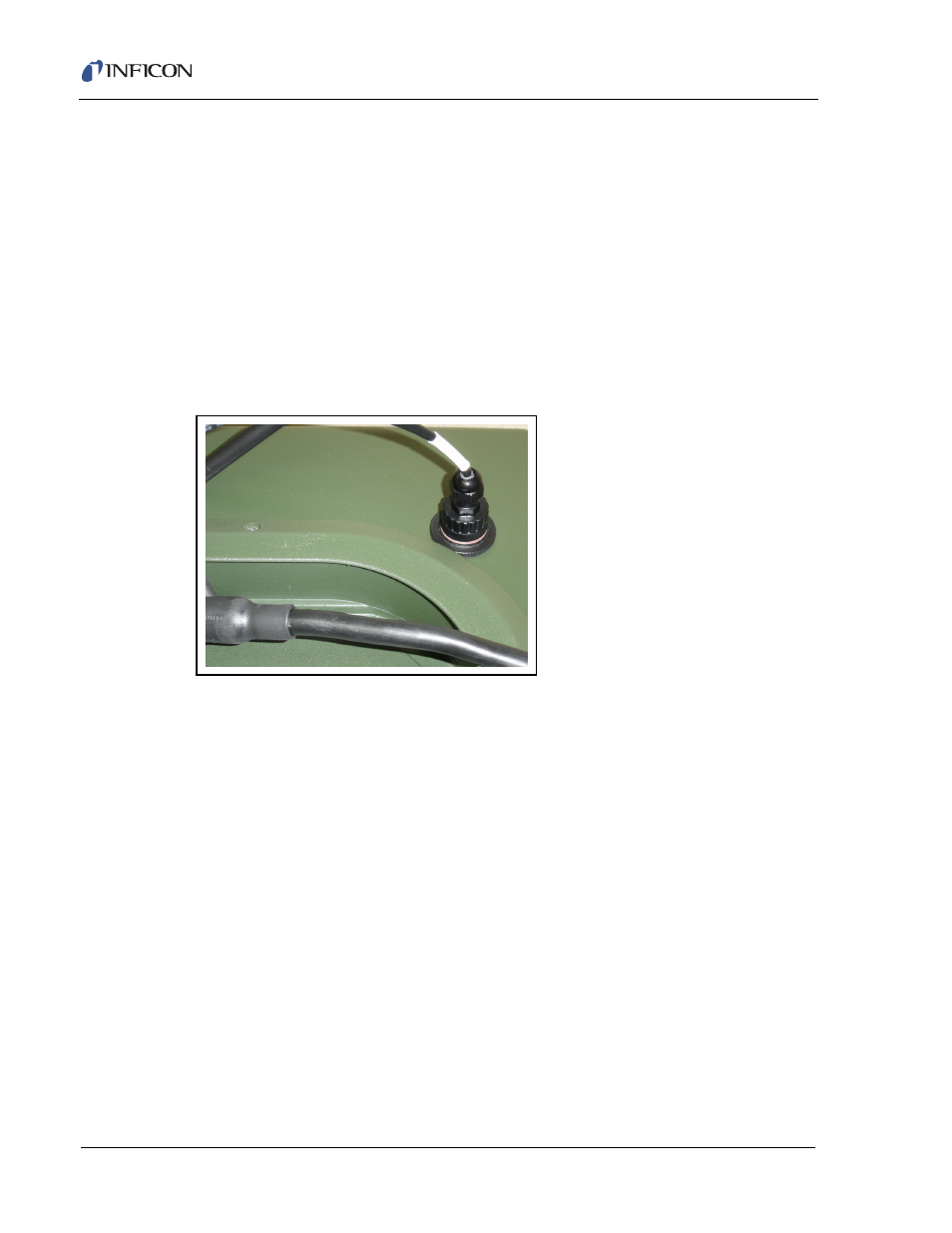

Figure 2-9 Crossover Connection to HAPSITE
2.2.5.2 Connect Laptop with Wireless Connection
Refer to
Chapter 4, Wireless and Touch Screen Options
for information on
enabling the wireless connection.
