HAPSITE ER Operating Manual
3 After the data has been collected, open the Calibration function which can be
accessed by clicking the Calibrate icon. See
Figure 12-10 .

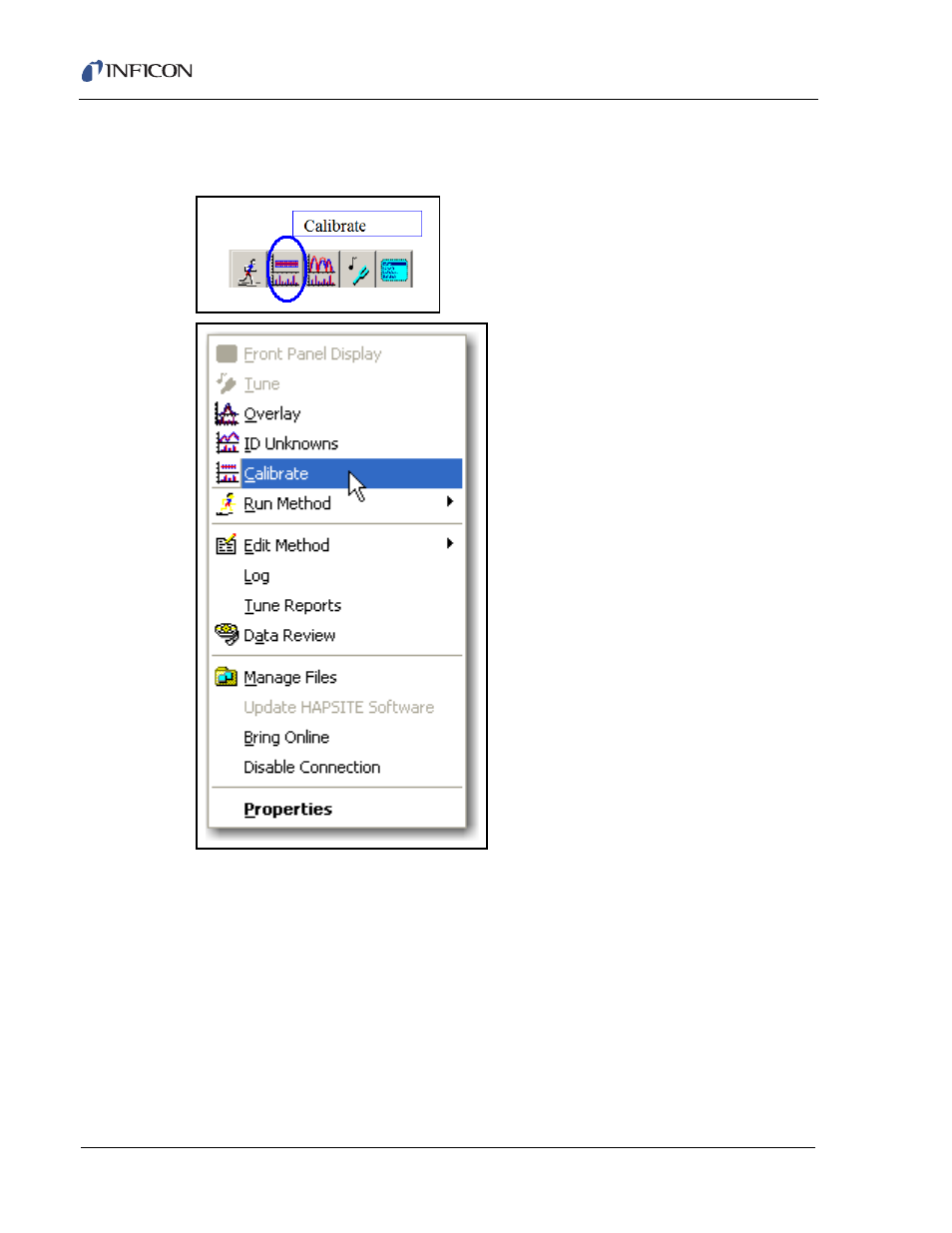

Figure 12-10 Accessing the Calibrate Function
3a Selecting the Calibrate function will display a dialog box used to select the type
of quantitative method being developed — Analyze (GC/MS) or Survey. See
Figure 12-11 .
NOTE: Methods can be built for Full Scan data or SIM (Selected Ion
Monitoring) data. Best practice is for the Select Method First box to
be checked, as the library is linked to the method.
