2 - 24
IP
N 07
4-
47
1-
P1
B
HAPSITE ER Operating Manual
2.6.3 Detaching the HAPSITE from the Service Module
Carefully follow the procedures starting with section 15.8, Detaching the HAPSITE,
on page 15-16 to detach the HAPSITE from the Service Module.
2.7 SituProbe
For complete assembly information on the SituProbe, see Chapter 14
1 After verifying that the battery in the HAPSITE is charged, disconnect the AC
to DC HAPSITE Adapter power supply.
2 Remove the probe.
3 Using a Y-Cable Power Splitter, connect the single connector end of the cable
to the AC to DC HAPSITE Adapter. Connect one of the split ends of the cable
to the left side of the HAPSITE and the other to the back of the SituProbe
accessory (IPN 932-220-G1). See
Figure 2-29 , Figure 2-30 and Figure 2-31 .

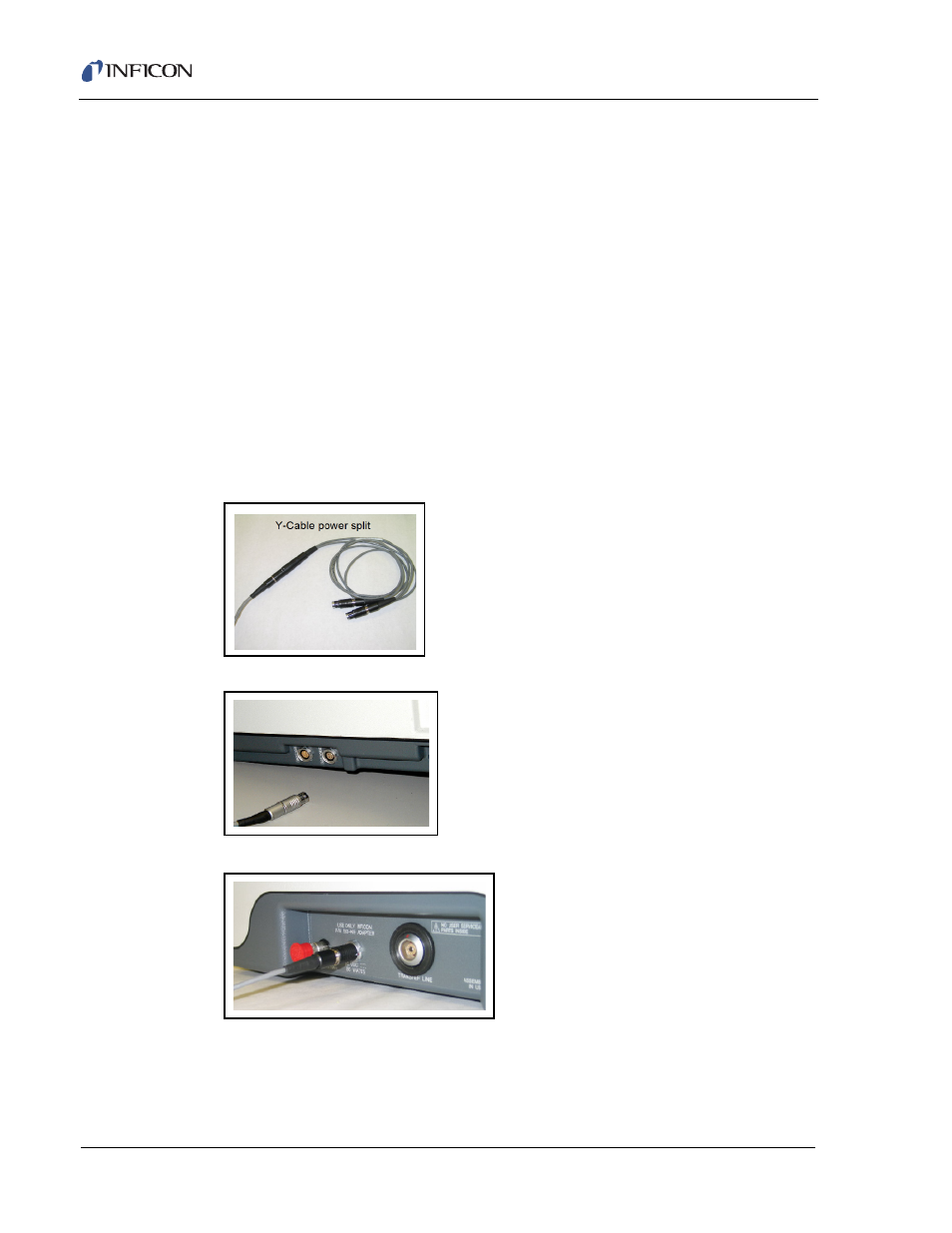

Figure 2-29 Y- Cable for SituProbe
Figure 2-30 Plugging Y-Cable Into HAPSITE
Figure 2-31 Plugging Y-Cable Into SituProbe
