7.5.3 Tune Control Panel

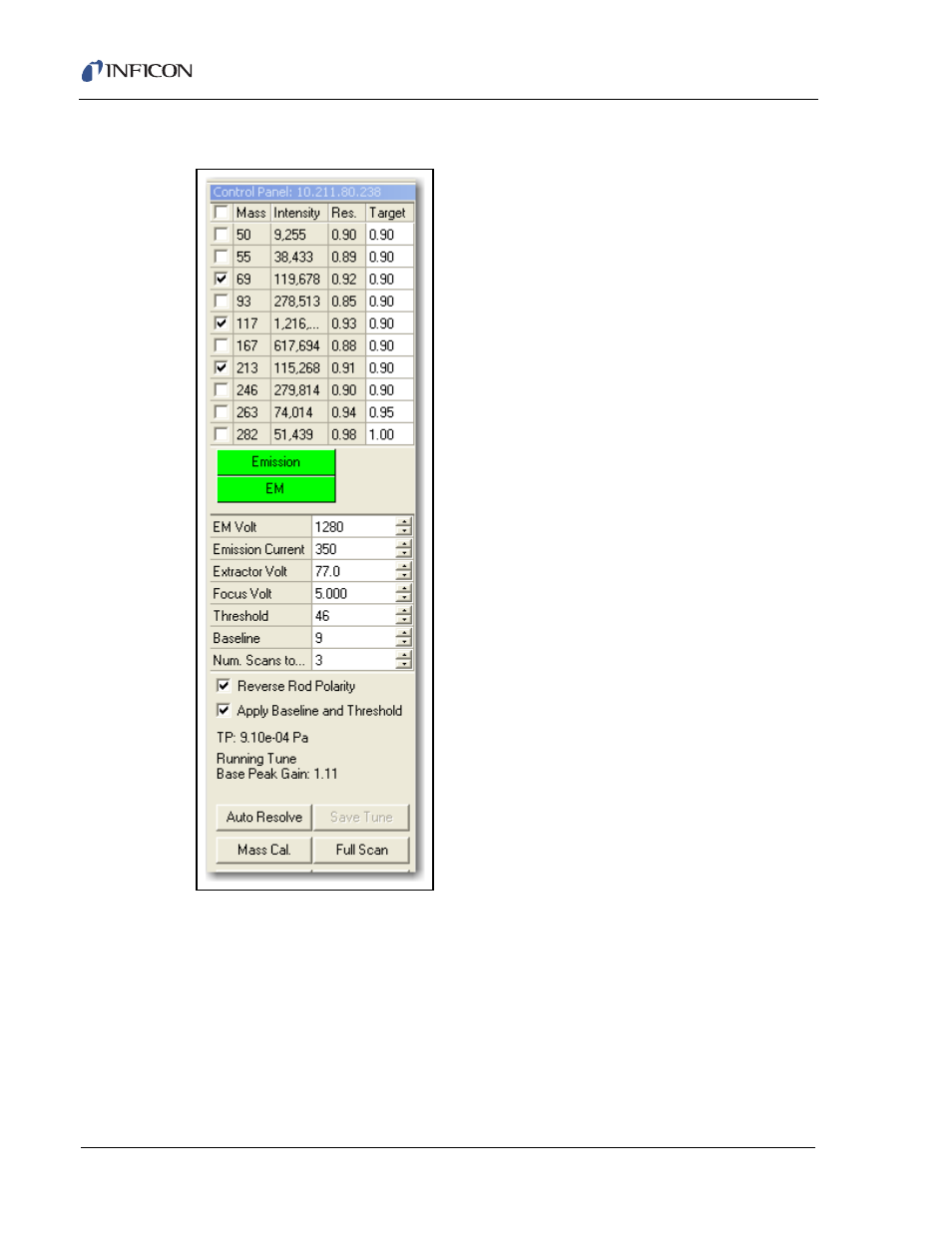

Figure 7-17 Tune Control Panel
The Tune Control Panel provides access to display individual mass peak scans by
selecting the check box next to the Mass. The measured intensity and resolution
are displayed. The Target Resolution is also displayed and can be modified.
Changing the Target Resolution will force an Auto Resolve. Decreasing the Target
Resolution narrows the peak, increasing the resolution and lowering the peak
percentage. Increasing the Target Resolution will widen the peak which decreases
the resolution and increases the peak percentage.
The Emission button turns the filament ON or OFF, the EM button turns the
Electron Multiplier ON or OFF. Green signifies ON and is the default condition when
the Tune window is opened.
