HAPSITE ER Operating Manual

To print a report of the results, click on the Report Preview button. This will result
in the following screen being displayed.

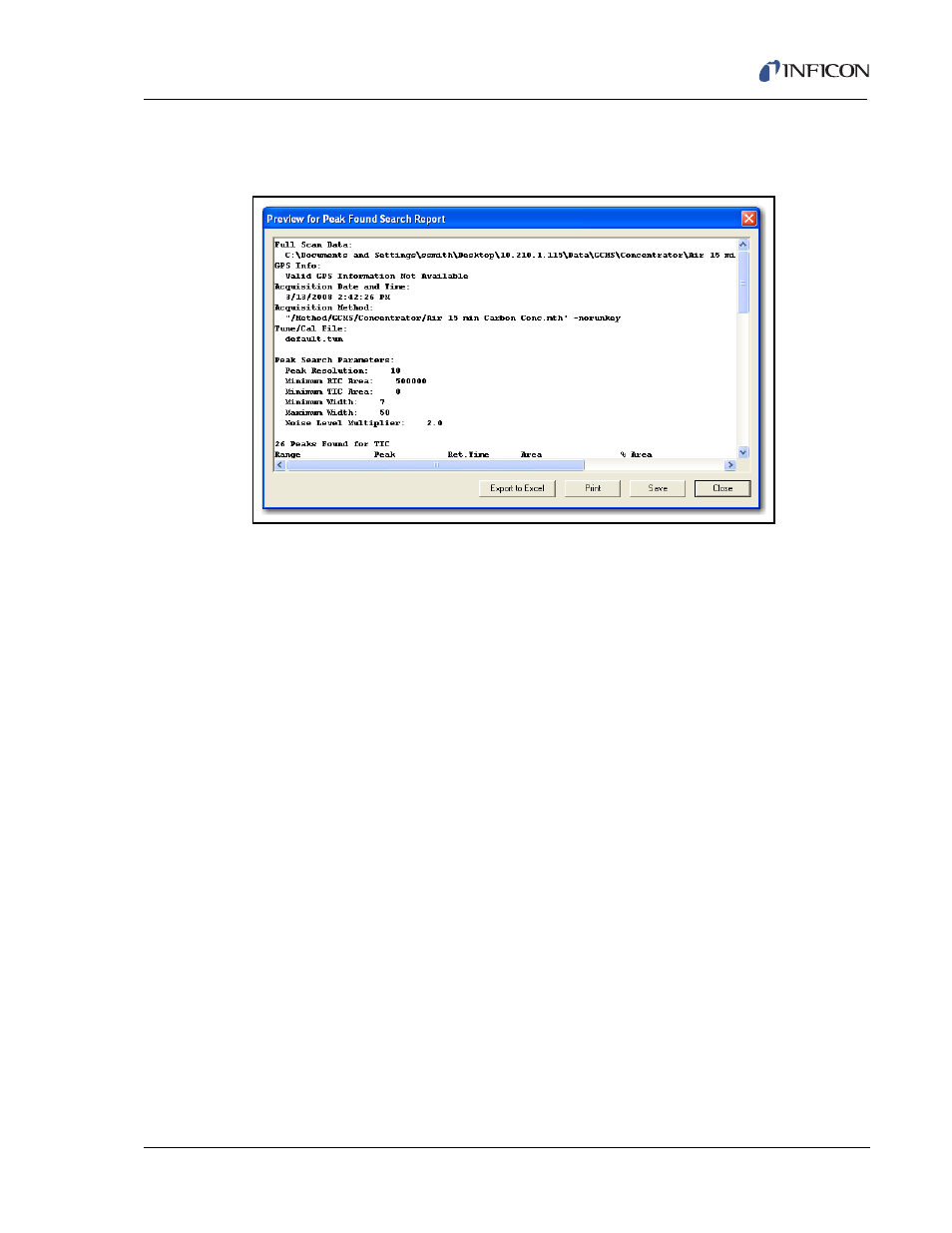

Figure 9-36 Preview Screen

The report is displayed, refer to

Figure 9-36

. Some options are:

Check the box that says Report as shown in the grid. This will only display
the first hit found for each peak. With the box unchecked, all hits for each peak
are displayed.

Export to Excel will create an Excel® text file, open Excel and display the file.

Print will print the report as displayed.

9.8.2 Analyzing Data Using AMDIS

AMDIS is an additional program provided by NIST and can be used to analyze data
generated by the HAPSITE ER IQ. AMDIS is the acronym for Automated Mass
Spectrum Deconvolution and Identification System.

AMDIS utilizes its own databases. ER IQ Laptop software utilizes the
HAPSITE.msl AMDIS library.

9.8.3 How To Access AMDIS

AMDIS can be accessed by the following methods:

Selecting the AMDIS button on the Function Toolbar, or

Right-click in the TIC window, then select Peaks. Click Switch to AMDIS, or

With the TIC window as the active window, press the Shift+F8 key.

NOTE: AMDIS only works on the TIC data. AMDIS does not use Spectrum

data.
