HAPSITE ER Operating Manual

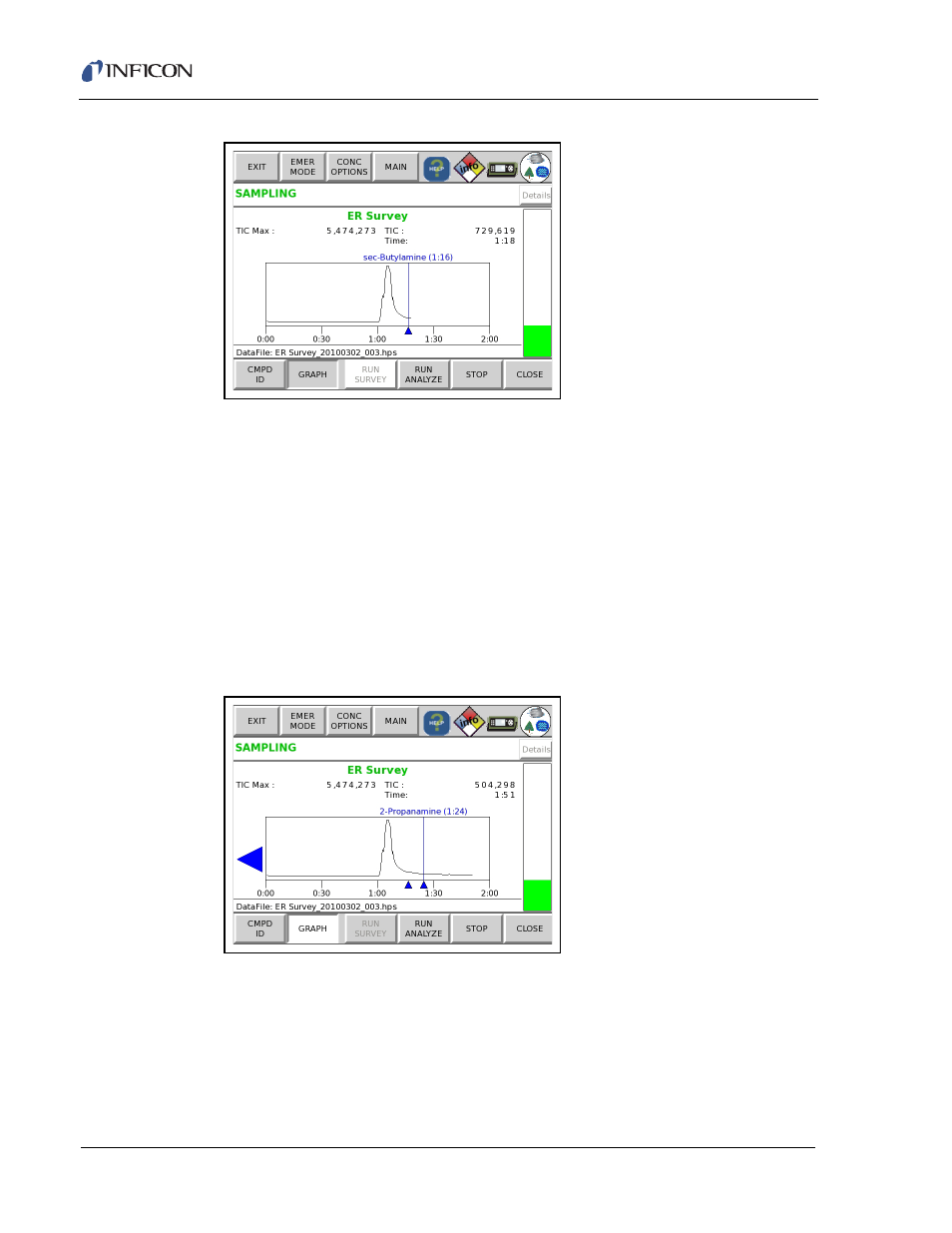

Figure 3-39 Sample GRAPH function
13
When the TIC begins to increase, move the probe away from the sample of
interest. Continue the run until the TIC level returns to the initial background
level that was noted in Step
8 on page 3-20
. See
Figure 3-40
.
NOTE: Monitor the probe distance bar on the HAPSITE screen for guidance.
The bar rises as the TIC increases and green signifies that the proper
sampling distance is being maintained. To avoid saturation, remove the
probe from the sample when the bar is high and turns yellow.
Remove
the probe from the sample to avoid saturation.
If saturation occurs, the side
bar will turn red and the TIC will be above 60 million.
Remove the probe
from the sample and continue to run Survey until the saturation is cleared
from the sample pathway.
Figure 3-40 Returning to Baseline
14
To confirm the Survey results with a GC/MS run, ANALYZE can be touched or
ANALYZE RUN can be pushed during the Survey run. See
Figure 3-41
.
NOTE: It is advised to begin an Analyze run either after a peak has been
displayed and/or Survey has been run for the full two minutes.
