HAPSITE ER Operating Manual

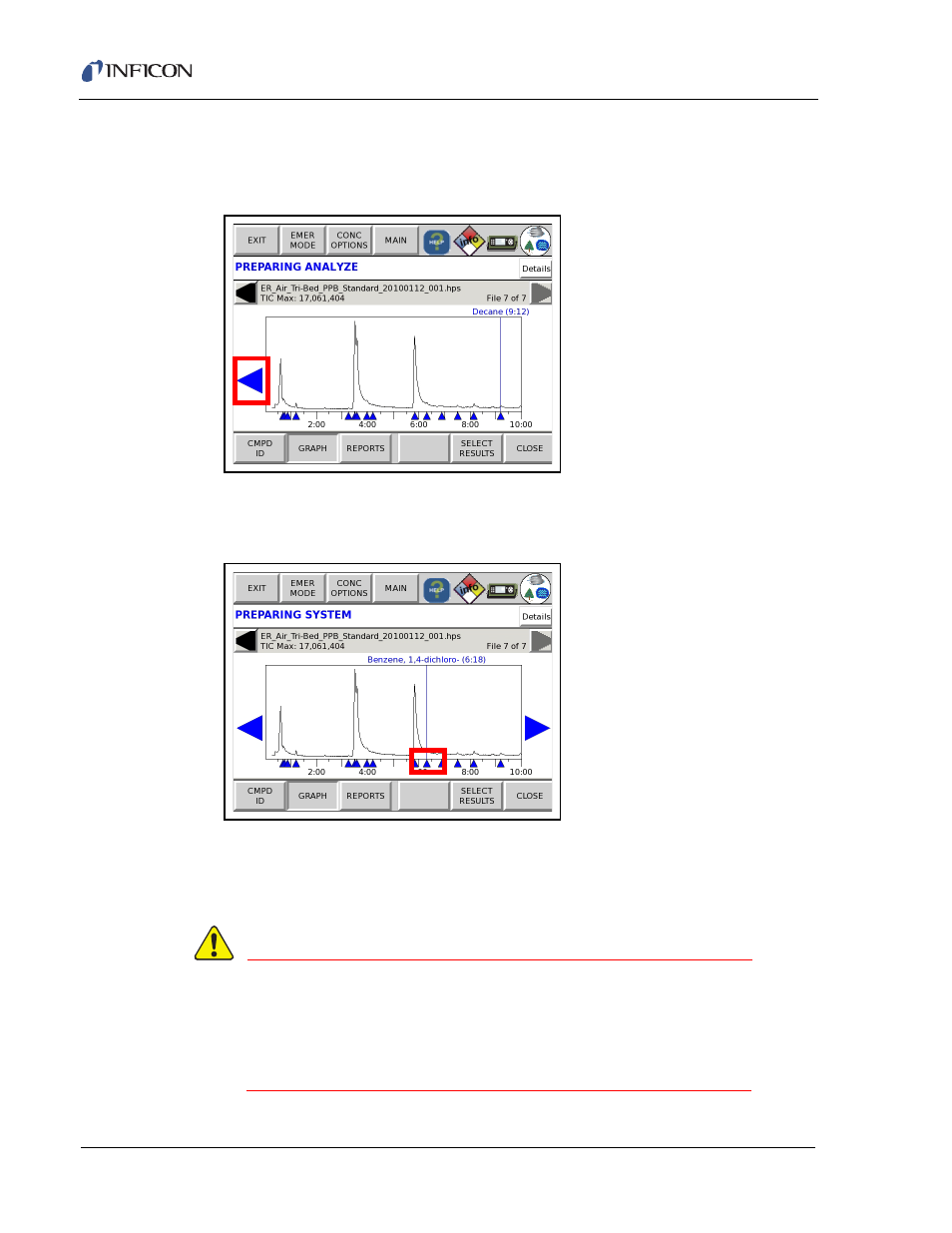

6 The big blue arrows are used to scroll through the peaks in the chromatogram.
The identified compound and its retention time will appear in the area below the
file name. See
Figure 3-56 .
Figure 3-56 Blue Arrows
7 Touch the small blue triangles to display the compound identification and
retention time for the compound directly above it. See
Figure 3-57 .
Figure 3-57 Small Blue Triangles
NOTE: Most functions can be accessed using the push buttons. However,
accessing the blue triangles and blue arrows are only available on the
touch screen.
DANGER
If a RED TRIANGLE is displayed, the HAPSITE has
detected a compound with a concentration that is 10% of
the IDLH level or it has detected a Chemical Warfare
Agent. Refer to
Section 3.5, Detecting Hazardous
Chemicals, on page 3-31 .
