HAPSITE ER Operating Manual
7.5 Manual Tune Settings and Controls
Manual Tune is run from the Laptop computer. The Manual Tune screen can be
accessed by selecting the Tune icon from the System Setup screen, or by
highlighting the HAPSITE icon, clicking the Right Mouse Button and selecting
Tune. When the Manual Tune screen is selected the system will initialize all of the
controls necessary to perform a Tune (e.g., turning on the filament, multiplier and
calibration/tune gas supply).
NOTE: Manual Tune is only available in Advanced user mode.
See
Figure 7-13
for a typical Manual Tune screen.

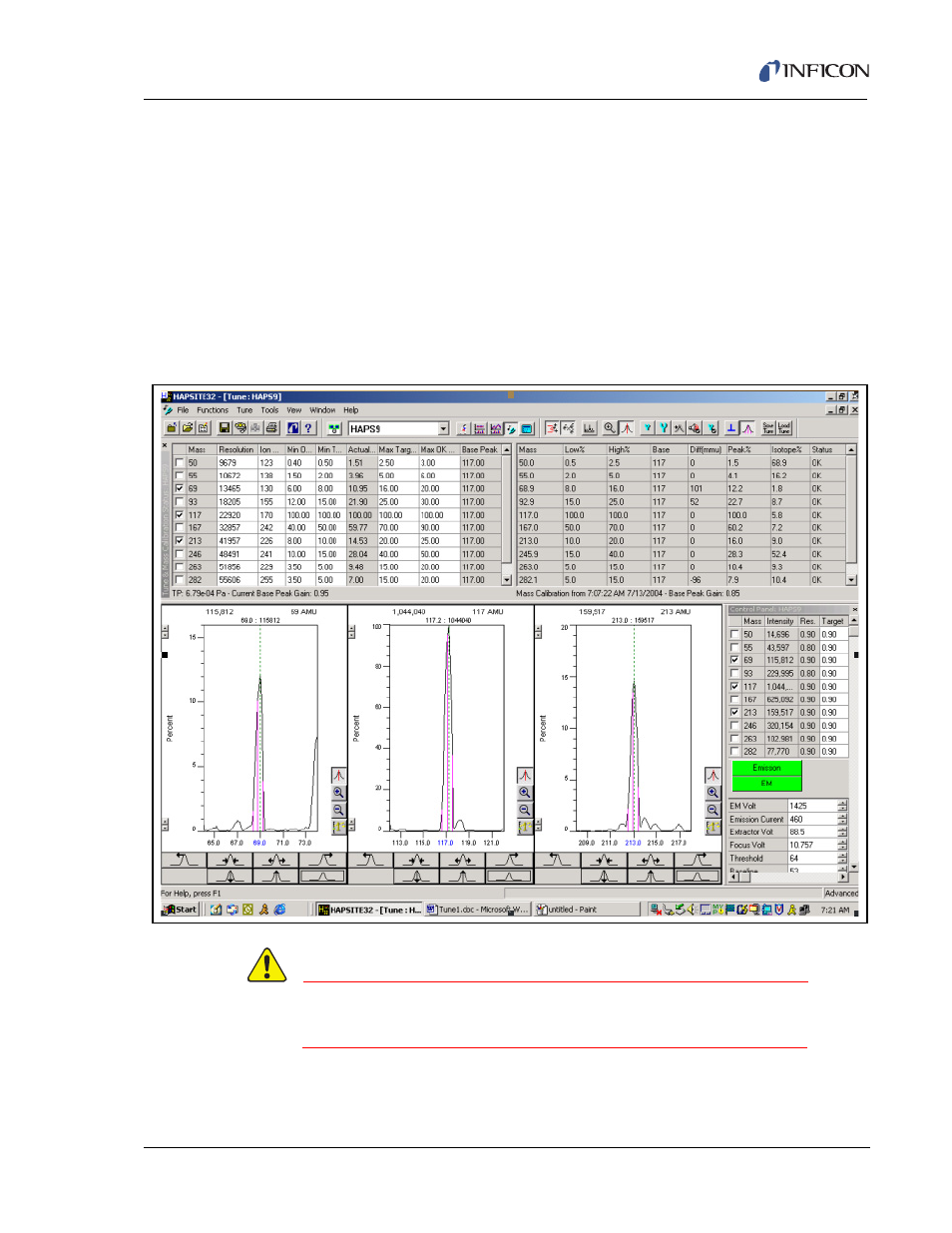

Figure 7-13 Manual Tune Screen
CAUTION
Adjusting parameters without proper training may
damage the instrument.
