HAPSITE ER Operating Manual

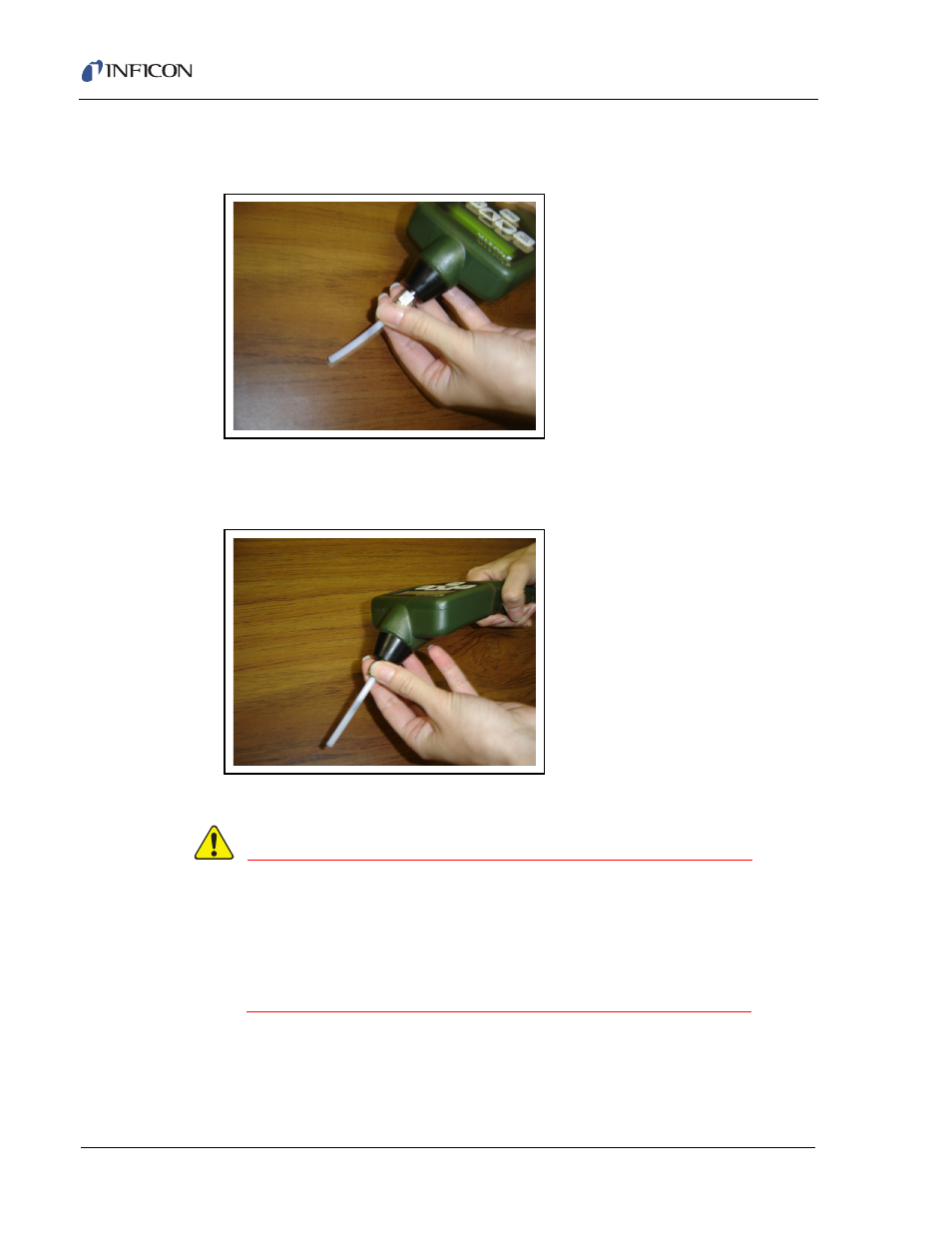

3 Insert either end of the VX-G Conversion Tube into the nut. Make sure the tube
is firmly seated into the front ferrule. See
Figure 2-48 .
Figure 2-48 Inserting the Tube
4 Finger tighten the nut. Pull gently on the conversion tube. It should be held
firmly in place. See
Figure 2-49 .
Figure 2-49 Tightening the Nut
2.8.3.2 VX-G Conversion Tube Removal
WARNING
If the conversion tube has been exposed, take the proper
precautions by wearing the recommended personal
protection equipment (PPE). PPE guidelines can be
found in the chemicals’ MSDS. If the tube has been
exposed, dispose of the conversion tube according to
local regulations.
1 Loosen the nut 1/4 to 1/2 of a turn.
2 Gently pull the VX-G Conversion Tube out of the probe.
3 Finger tighten the nut.
