HAPSITE ER Operating Manual
NOTE: Tune files are saved, by default, to the HAPSITE hard drive under the Tune
folder.

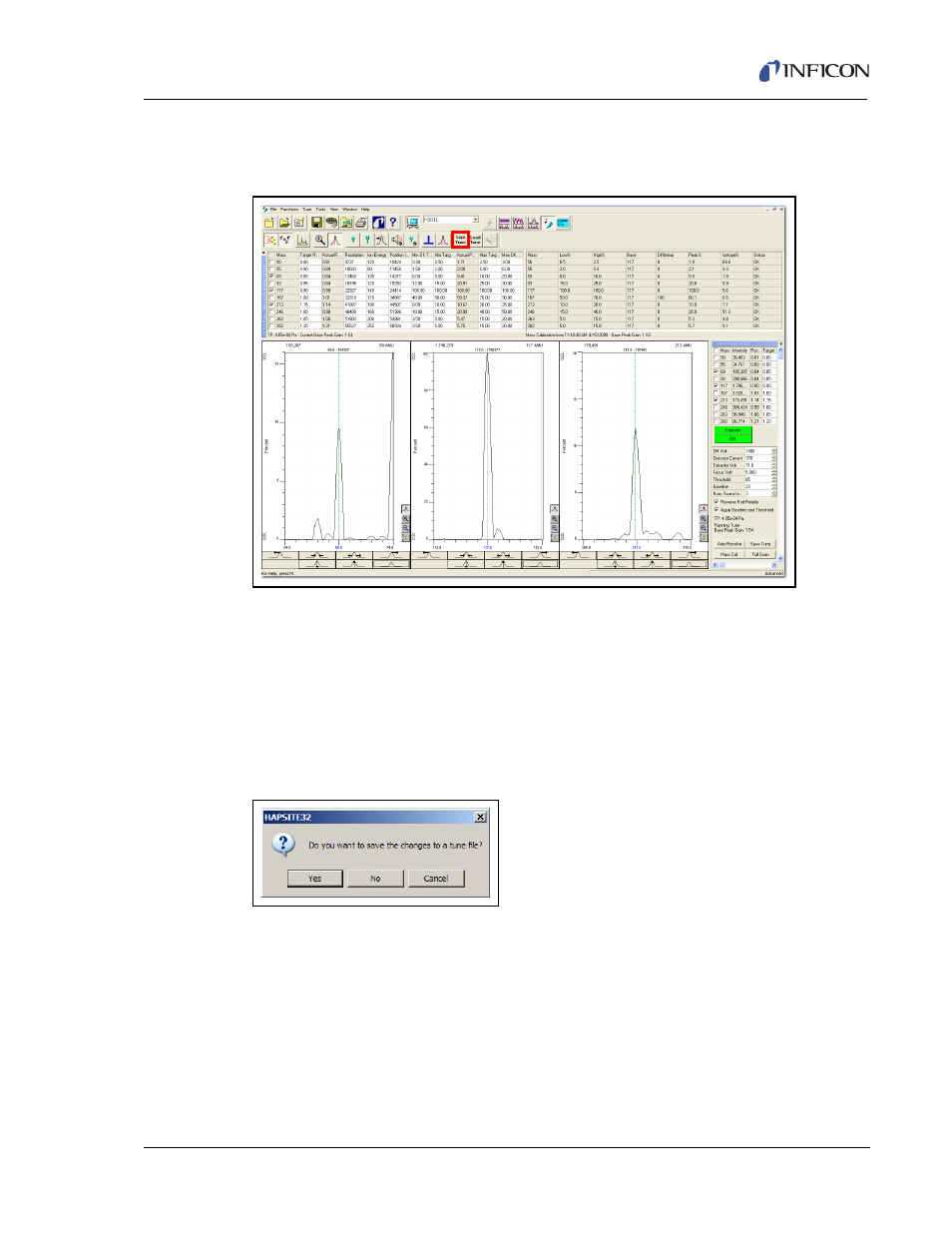

Figure 10-5 Manual Tuning Screen Showing Save Tune Button
When an attempt is made to exit Manual Tune without saving, a window will appear
asking Do you want to save the changes to a tune file? See
Figure 10-6 . To
save, press Yes or to exit without saving, press No. Pressing Cancel will abort
exiting tune and will not save the tune file. If saving the tune file, the Save Tune
File window will appear as shown in
Figure 10-7 . Select a Tune file name and press
OK.
HINT: It is highly recommended to always save the tune as default.tun .
Figure 10-6 Save Changes Prompt
