HAPSITE ER Operating Manual
2.2.3 Install Battery
Insert the battery by sliding it into the rectangular opening to the left of the gas
canisters. Push firmly and listen for the battery to click into place. Once the battery
is installed, gently pull on the battery to make sure the battery is locked into place.
See
Figure 2-7 .

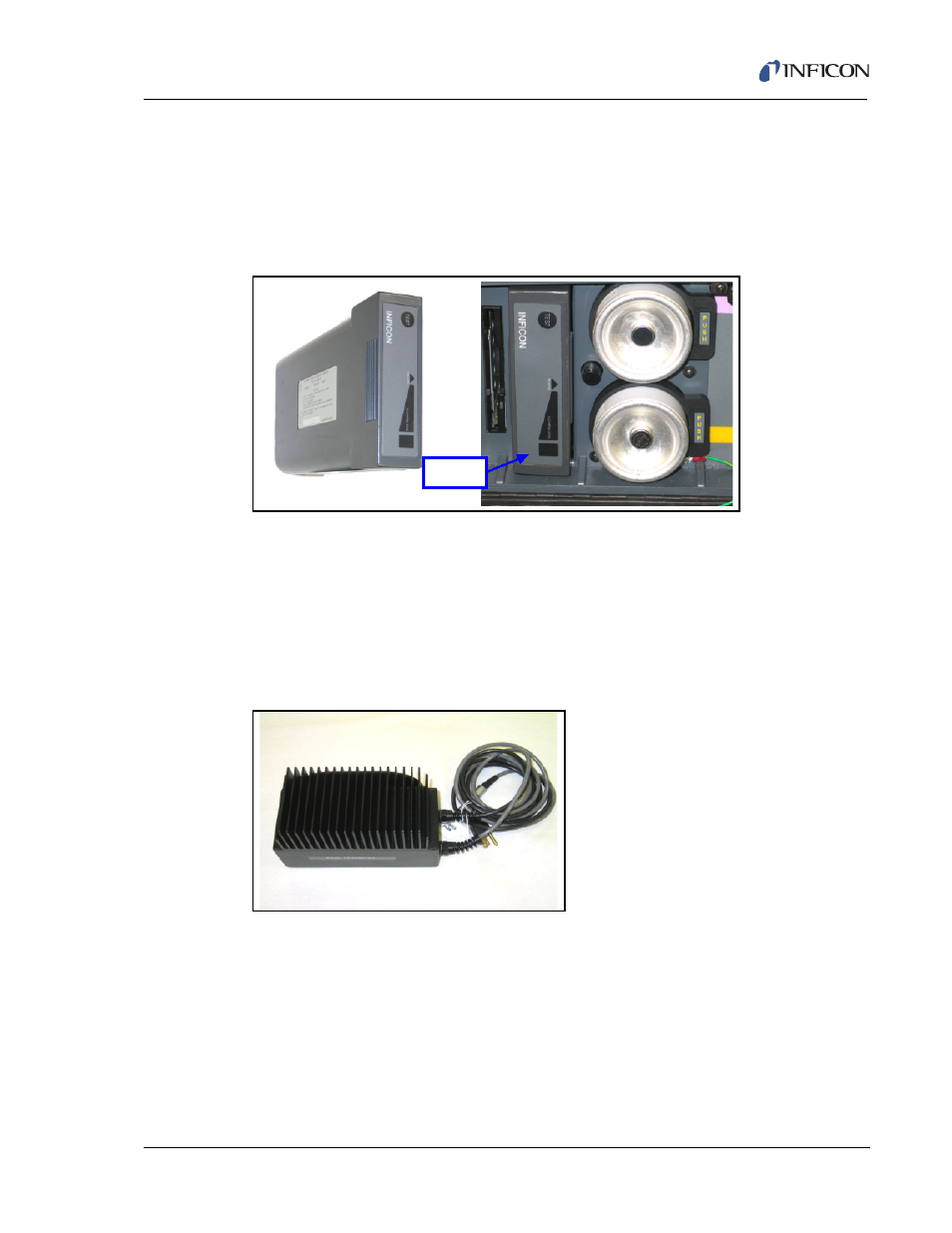

Figure 2-7 Battery Insertion
2.2.4 Connect the AC To DC Power Converter Power Supply
The AC to DC power converter plugs into the four prong plug on the left side of the
HAPSITE (when facing the front of the HAPSITE). A red dot on the connector
aligns with the corresponding red line on the receptor of the HAPSITE (if the red
dot is not visible on the HAPSITE, the red dot on the power supply should be facing
forward.) Plug the AC to DC power converter into an outlet. See
Figure 2-8 .
Figure 2-8 The AC To DC Power Converter Power Supply
Battery
