Survey Menu

R-95

Resection

6XUYH\ 5HVHFWLRQ

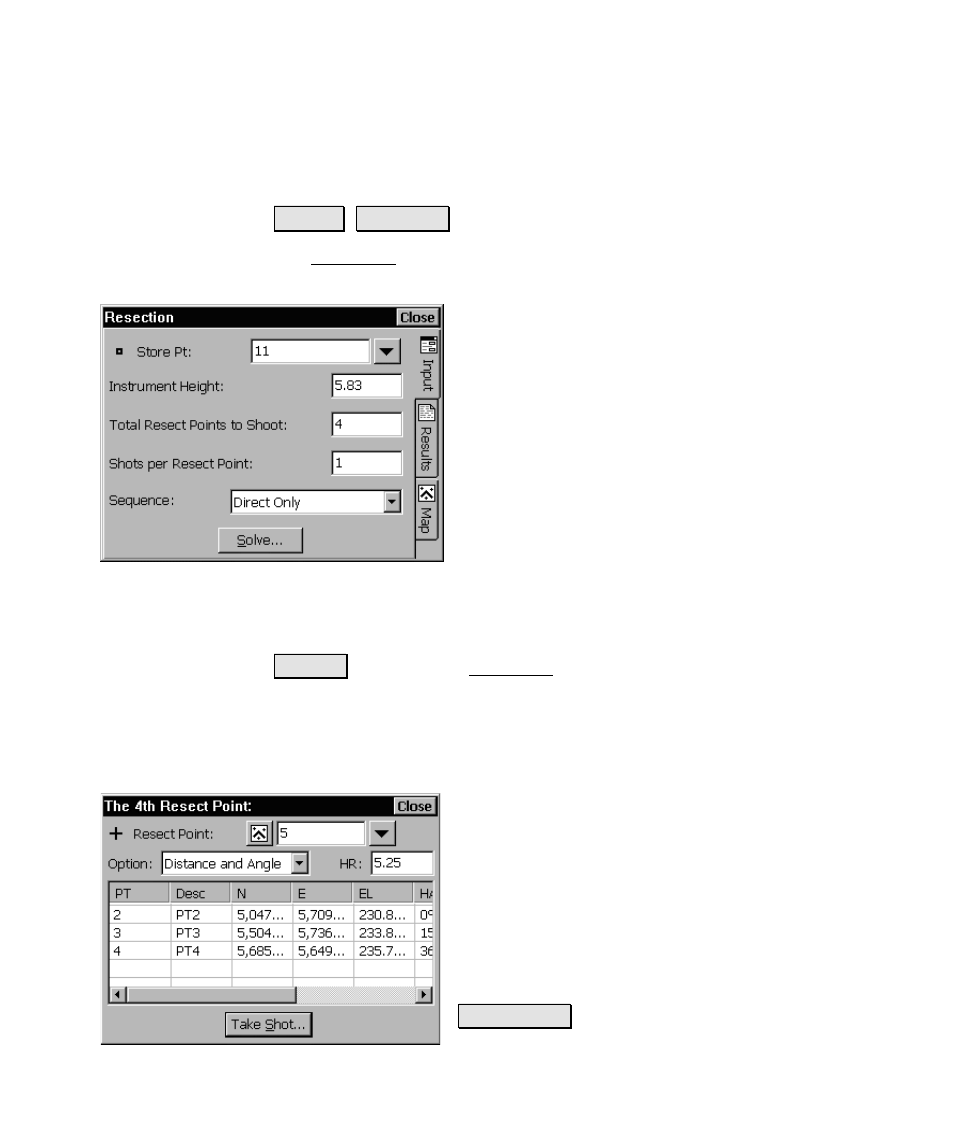

The Resection screen allows you to compute an unknown occupied
position by shooting two to seven known positions.

Store Point

: is the name that will be used when

the new occupied point is stored.

Instrument Height

: is the height of the

instrument above the ground.

Total Resect Points to Shoot

: is the number of

known positions that will be shot, from 2 to 7.

Shots per Resect Point

: is the required number

of shots to shoot to each foresight when

Direct

Only

is selected in the next field and is the

required number of sets when

Direct and

Reverse

is selected in the next field.

Sequence

: is the set order when shooting each foresight. You can

select either

Direct and Reverse

Direct Only

6ROYH« : accesses the Resection dialog box, described below, where

all of the shots are performed.

Resection Dialog Box

Resect Point

: is the known point that you will

shoot.

Option

: allows you to select the type of data that

is recorded when shooting the specified
foresight. You can select

Distance and Angle

, or if

shooting at least three foresights, you can also
select to record the

Angle Only

: is the length of the rod.

7DNH 6KRW« : takes a shot to the prism at the

specified foresight point. After the last shot is
