KORG Electronic Keyboard - Manual (Page 891)

Mono/Mono Parallel 144: P4EQ // Exciter
881
144: P4EQ // Exciter

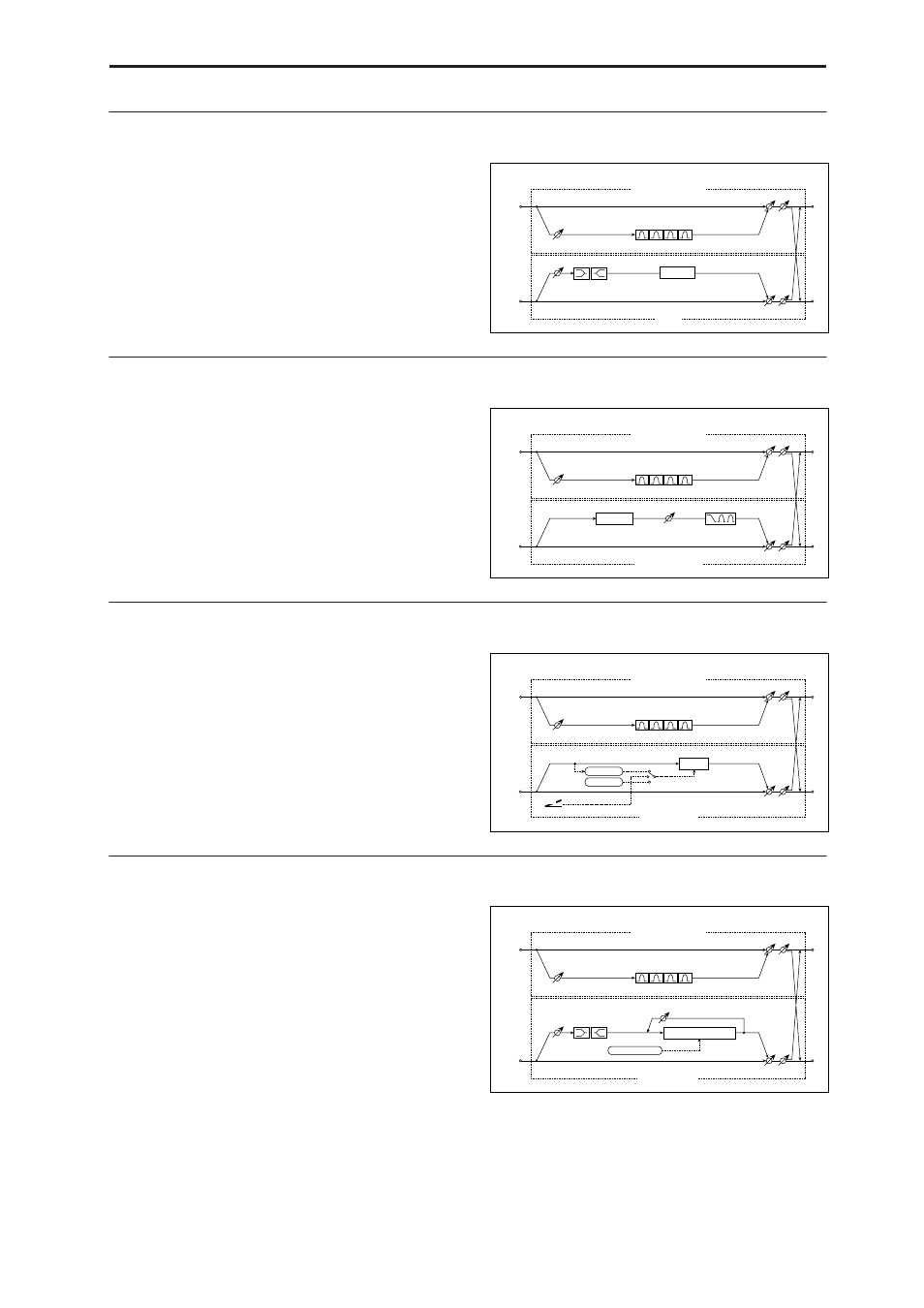

This effect connects a four-band EQ and an exciter in
parallel. The pan and effect balance can be adjusted
independently for each.
For detailed information on the effects parameters, see
“4 band EQ” on page 877 and “Exciter” on page 878.
145: P4EQ // OD/Hi Gain
This effect connects a four-band EQ and an overdrive
in parallel. The pan and effect balance can be adjusted
independently for each.
For detailed information on the effects parameters, see
“4 band EQ” on page 877 and “OD/HI-GAIN” on
page 878.
146: P4EQ // Wah
This effect connects a four-band EQ and a wah in
parallel. The pan and effect balance can be adjusted
independently for each.
For detailed information on the effects parameters, see
“4 band EQ” on page 877 and “WAH” on page 878.
147: P4EQ // Chorus/Flanger
This effect connects a four-band EQ and a chorus /
flanger in parallel. The pan and effect balance can be
adjusted independently for each.
For detailed information on the effects parameters, see
“4 band EQ” on page 877 and “Chorus/Flanger” on
page 879.
