Combination mode
392

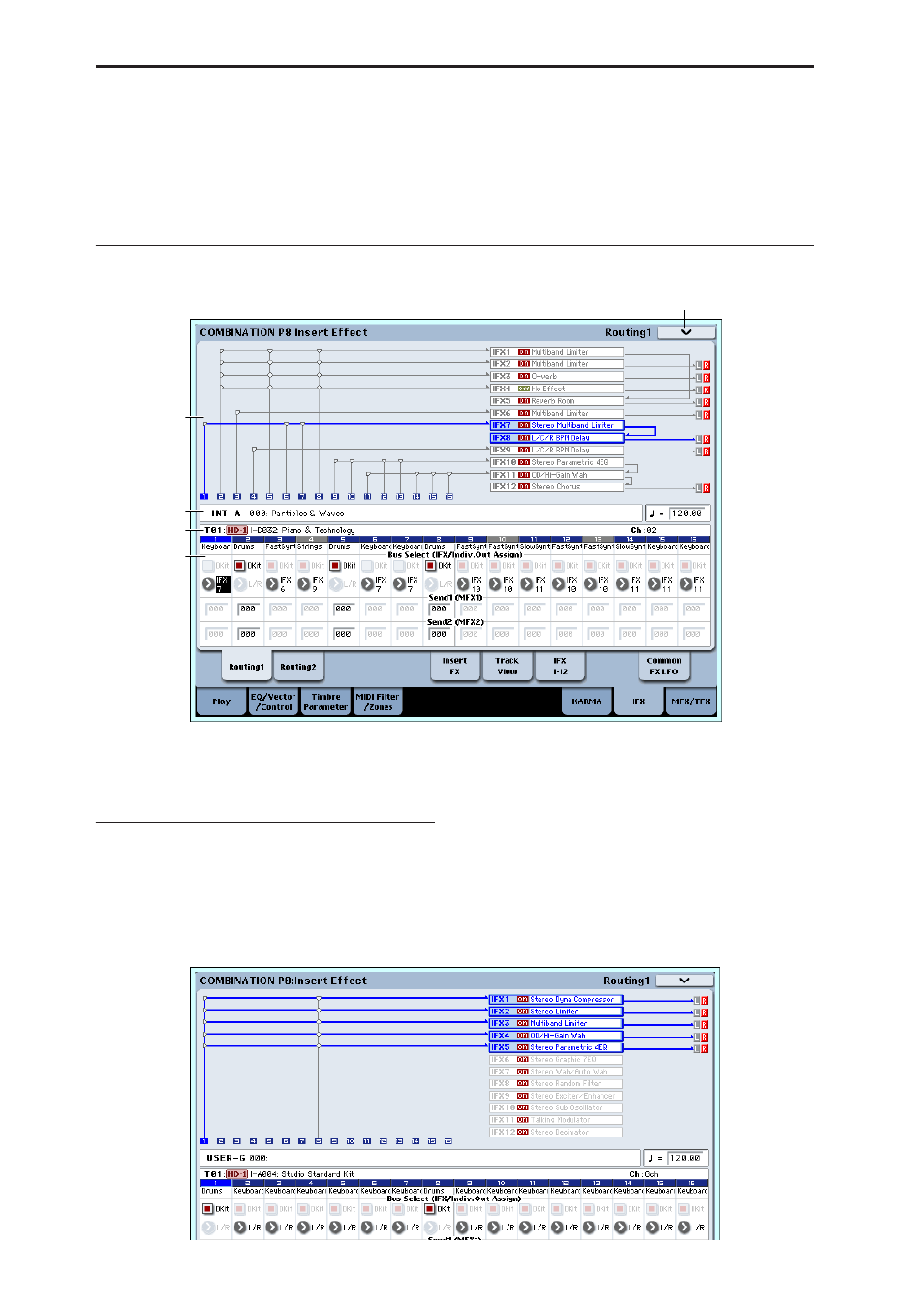

Combination P8: Insert Effect
You can also specify the bus routing for the program
used by each timbre 1–16. For instance, you can:
• Send the output of a timbre to an insert effect
• Route a sound to an insert effect
• Make detailed settings for insert effects
• Make common LFO settings for effects
For more details on the Insert Effects, see the “Effect
Guide” on page 727.
8–1: Routing1
Specifies the bus to which the program oscillator(s)
used by each timbre 1–16 will be sent. You can also set
the send levels to the master effects from this page.
8–1a: Routing Map
This shows the status of the insert effects.
This area shows the insert effect routing (Bus Select),
the name of the assigned effect, the on/off status,
chaining, and the output bus that follows the insert
effect. The type of insert effect, the on/off status, and
the chain settings can be edited in the P8– Insert FX
page.
1–1a
1–1b
8–1a
8–1b
8–1PMC
