Mono-Mono Serial 130: OD/Hi Gain - Amp Sim
869

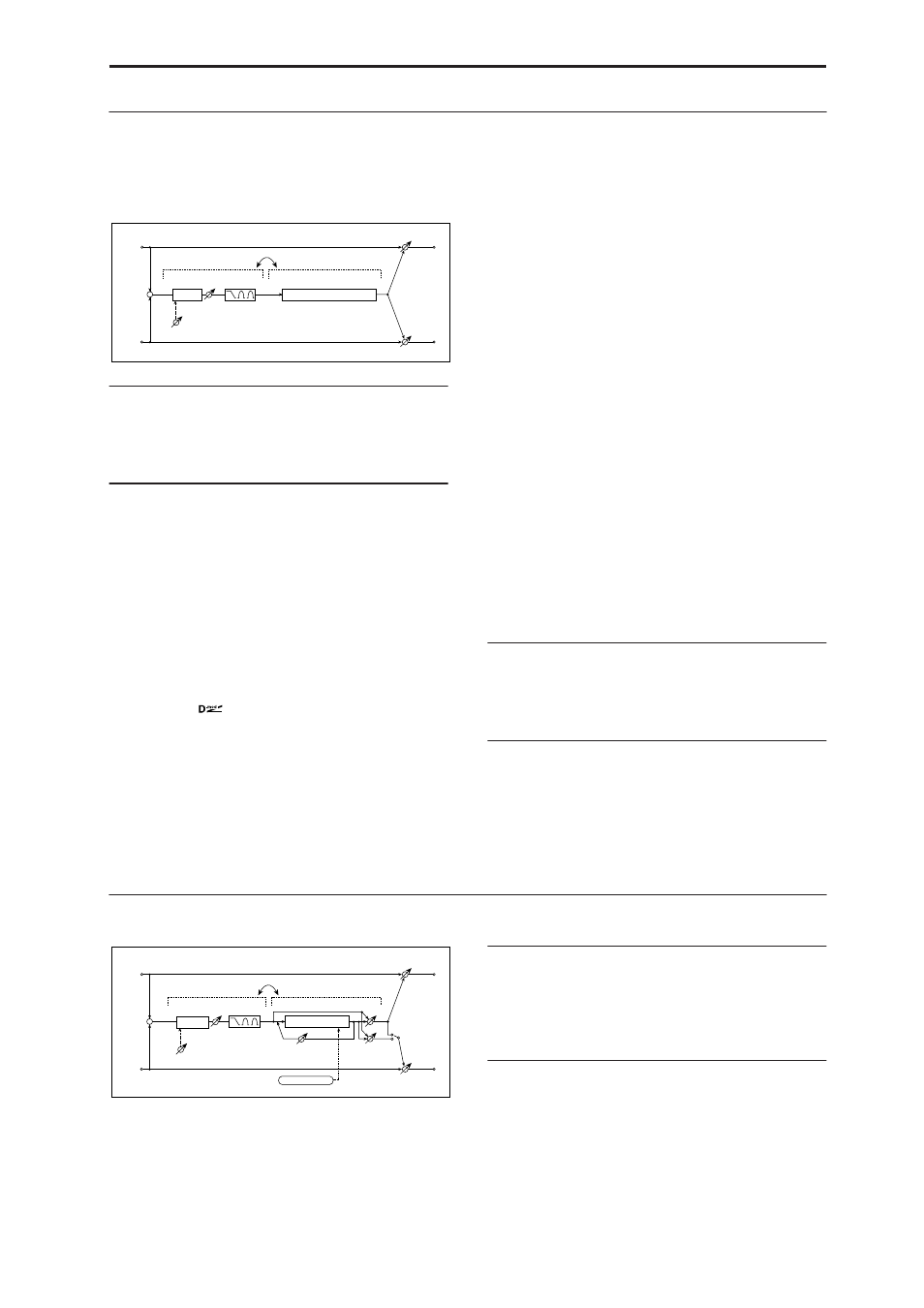

130: OD/Hi Gain - Amp Sim
This effect combines a mono overdrive/high-gain
distortion and an amp simulation. You can change the
order of the effects.
Routing
Routing [OD/HG ➝ Amp, Amp ➝ OD/HG]
Switches the order of the overdrive and amp.
OD/HI-GAIN
DRIVE
For more information on these parameters, see
“DRIVE” on page 788.
Drive Mode [Overdrive, Hi-Gain]
Switches between overdrive and high-gain distortion.
Drive [1…100]
Sets the degree of distortion.
Output Level [0…50]
Sets the overdrive output level.
Source [Off…Tempo]
Selects the modulation source for the overdrive output
level.
Amount [–50…+50]
Sets the modulation amount of the overdrive output
level.
EQ
Low Fc [Hz] [20…1.00k]
Sets the center frequency for Low EQ (shelving type).
Gain [dB] [–18…+18]
Sets the gain of the Low EQ.
Mid1 Fc [Hz] [300…10.00k]
Sets the center frequency for Mid/High EQ 1 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 1.
Mid2 Fc [Hz] [500…20.00k]
Sets the center frequency for Mid/High EQ 2 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 2.
AMP SIM
Amplifier Type [SS, EL84, 6L6]
Selects the type of guitar amplifier.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
131: OD/Hi Gain - Cho/Flanger
This effect combines a mono overdrive/high-gain
distortion and a chorus/flanger. You can change the
order of the effects.
Routing
Routing [OD/HG ➝ Flanger, Flanger ➝ OD/HG]
Switches the order of the overdrive and chorus /
flanger.
OD/HI-GAIN
DRIVE
For more information on these parameters, see
“DRIVE” on page 788.
Drive Mode [Overdrive, Hi-Gain]
Switches between overdrive and high-gain distortion.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
—
+
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
