Effect Guide
872
EQ
Low Fc [Hz] [20…1.00k]
Sets the center frequency for Low EQ (shelving type).
Gain [dB] [–18…+18]
Sets the gain of the Low EQ.
Mid1 Fc [Hz] [300…10.00k]
Sets the center frequency for Mid/High EQ 1 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 1.
Mid2 Fc [Hz] [500…20.00k]
Sets the center frequency for Mid/High EQ 2 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 2.
MULTITAP DELAY
Tap1 Time [msec] [0.0…1360.0]
Sets the Tap1 delay time.
Tap2 Time [msec] [0.0…1360.0]
Sets the Tap2 delay time.
Tap1 Level [0…100]
Sets the Tap1 output level. p.832.
Feedback [+/–100]
Sets the Tap2 feedback amount.
High Damp [%] [0…100]
Sets the damping amount in the high range. p.829.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the multitap delay effect balance
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
multitap delay.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the multitap
delay.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

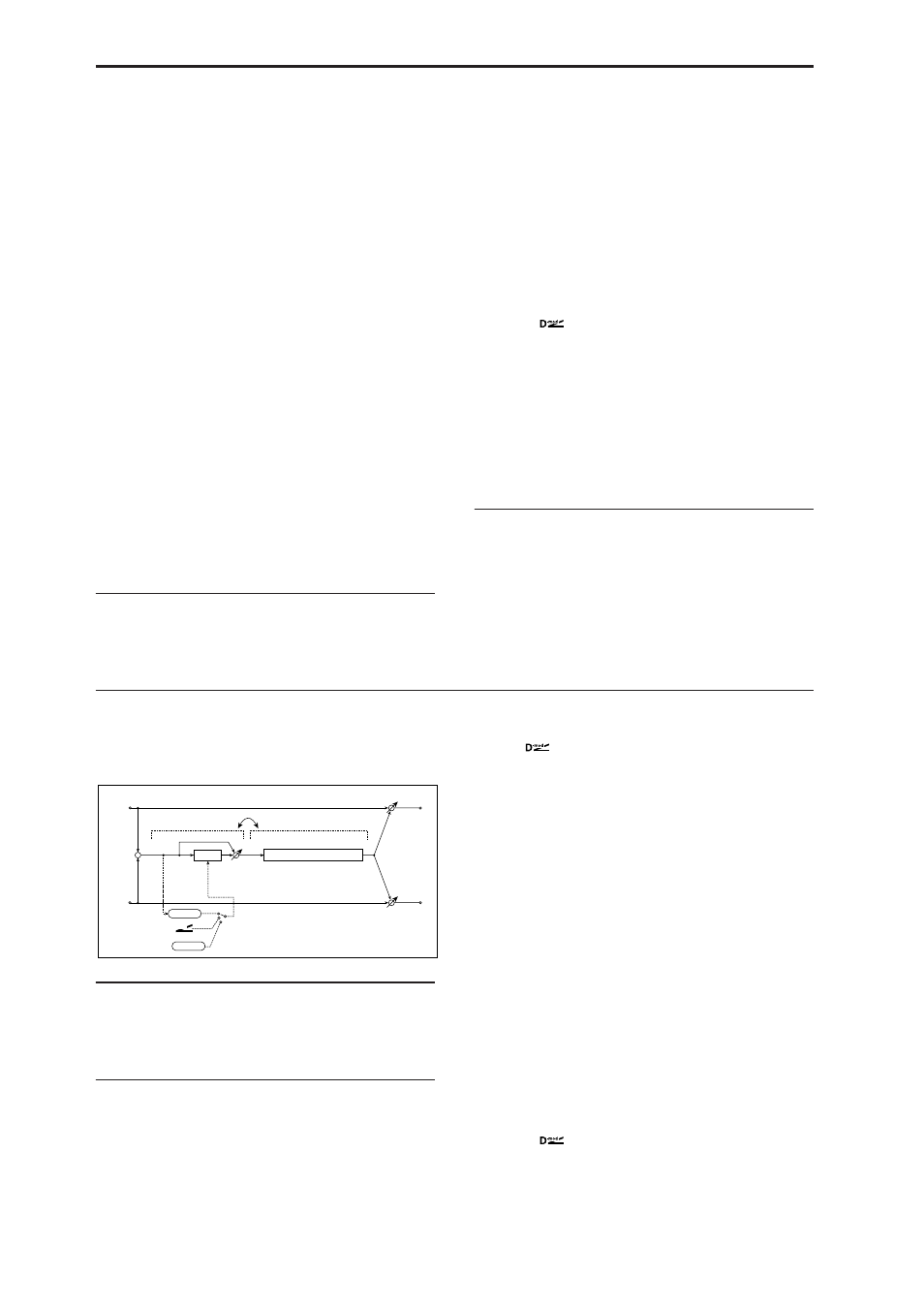

134: Wah - Amp Sim
This effect combines a mono wah and an amp
simulation. You can change the order of the effects.
Routing
Routing [Wah ➝ Amp, Amp ➝ Wah]
Switches the order of the wah and amp simulation.
WAH
CONTROL
Sweep Mode [Auto, Dmod, LFO]
Selects the control from auto-wah, modulation source,
and LFO. See “Sweep Mode” on page 776.
Source [Off…Tempo]
Selects the modulation source for the wah when Sweep
Mode=Dmod.
LFO
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
WAH
Frequency Bottom [0…100]
Sets the lower limit of the wah center frequency. p.777.
Frequency Top [0…100]
Sets the upper limit of the wah center frequency. p.777.
Resonance [0…100]
Sets the resonance amount.
Low Pass Filter [Check-box]
Switches the wah low pass filter on and off.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the wah effect balance.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the wah.
Wet / Dry
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Amp Simulation
Amp Simulation Filter
Wah/Auto Wah
Wah
D -mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
