Effect Guide
770
Amount [–63…+63]
Sets the modulation amount of the output gain.
LOW
Offset [dB] [–40…0]
This adjusts the Threshold level for the low range.
MID
Offset [dB] [–40…0]
This adjusts the Threshold level for the mid range.
HIGH
Offset [dB] [–40…0]
This adjusts the Threshold level for the high range.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

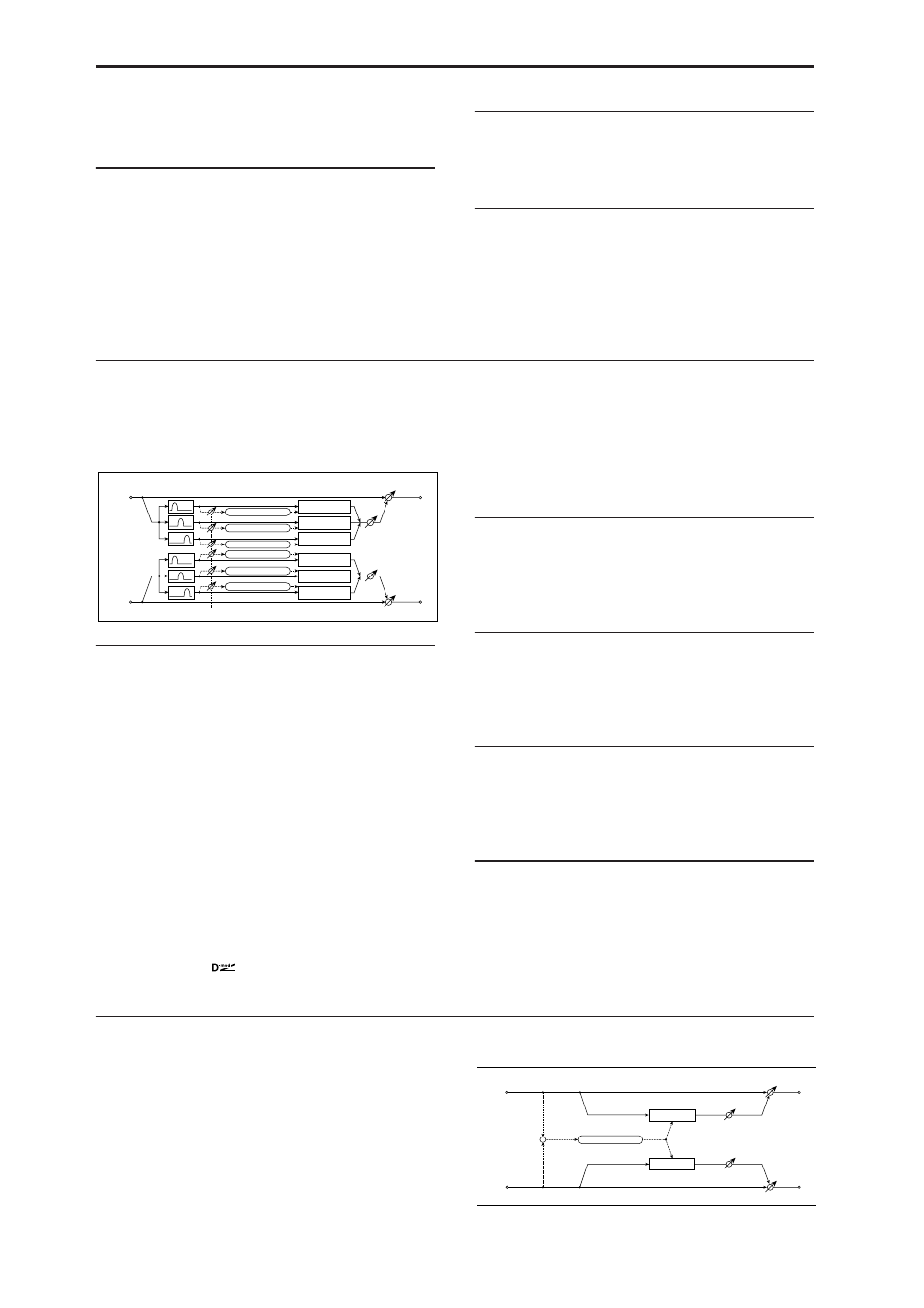

007: Stereo Multiband Limiter
This is a true-stereo multiband limiter. For more
information, see the mono version, “006: Multiband
Limiter,” above.
LIMITER
Ratio [1.0 :1…50.0 :1, Inf :1]
Sets the signal compression ratio. For more
information, see “Ratio” on page 765.
Threshold [dB] [–40…0]
Sets the level above which the compressor is applied.
For more information, see “Threshold [dB]” on
page 766.
Attack [1…100]
Sets the attack time. For more information, see “Attack
[msec]” on page 766.
Release [1…100]
Sets the release time. p.766.
Gain Adjust [dB] [–Inf, –38…+24]
Sets the output gain. p.766.
Source [Off…Tempo]
Selects the modulation source for the output gain.
Amount [–63…+63]
Sets the modulation amount of the output gain.
LOW
Offset [dB] [–40…0]
Sets the low range gain of trigger signal. For more
information, see “Threshold Offsets” on page 769.
MID
Offset [dB] [–40…0]
Sets the mid range gain of trigger signal. For more
information, see “Threshold Offsets” on page 769.
HIGH
Offset [dB] [–40…0]
Sets the high range gain of trigger signal. For more
information, see “Threshold Offsets” on page 769.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
008: Stereo Mastering Limiter
This stereo limiter is optimized for mastering full
mixes. It uses a short look-ahead delay (1.3 ms) for
zero-overshoot performance.
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Gain Adjust
Limiter
Limiter
Limiter
Envelope - Control
Envelope - Control
Envelope - Control
Gain Adjust
Limiter
Limiter
Low
Mid
High
Envelope - Control
Envelope - Control
Envelope - Control
Low
Mid
High
Offset
Band-Pass Filters
Limiter
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Limiter
Limiter
Out Ceiling
Out Ceiling
Envelope - Control +
