Effect Guide
874
Output Level [0…100]
Sets the compressor output level. p.764.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

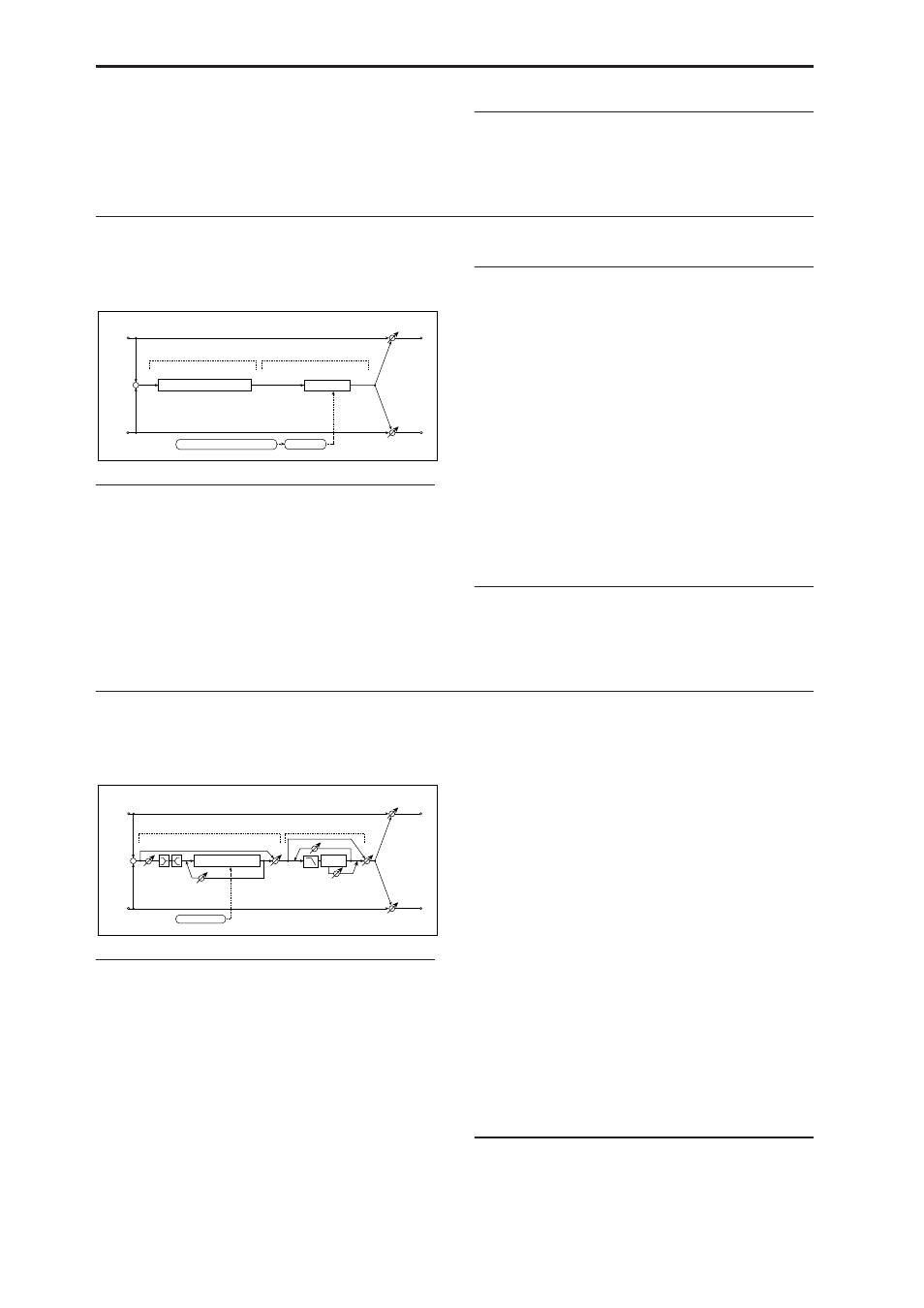

137: Amp Sim - Tremolo
This effect combines a mono amp simulation and a
tremolo.
AMP SIM
Amplifier Type [SS, EL84, 6L6]
Selects the type of guitar amplifier.
TREMOLO
LFO
Waveform [Triangle, Sine, Vintage, Up, Down]
Selects the LFO Waveform. p.814.
Shape [+/–100]
Changes the curvature of the LFO Waveform. p.780.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
TREMOLO
Depth [0…100]
Sets the depth of LFO modulation.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
138: Cho/Flanger - Multitap Dly
This effect combines a mono chorus/flanger and a
multitap delay.
CHORUS/FLANGER
Pre EQ
Trim [0…100]
Sets the EQ input level.
LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
FLANGER
Delay Time [msec] [0.0…1350.0]
Sets the delay time.
Depth [0…100]
Sets the depth of LFO modulation.
Feedback [+/–100]
Sets the feedback amount. p.803.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the effect balance of the chorus/flanger. p.780,
p.804.
MULTITAP DELAY
Tap1 Time [msec] [0.0…1360.0]
Sets the Tap1 delay time.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Amp Simulation Tremolo
Amp Simulation Filter Tremolo
LFO: Tri/Sin/Vintage/Up/Down LFO Shape
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ HEQ EQ
Trim
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Chorus/Flanger
Cho/Flng
Wet / Dry Mt.Dly
Wet / Dry
Chorus/Flanger
Feedback
LFO: Tri / Sine
