Mono-Mono Serial 121: Limiter - P4EQ
863
121: Limiter - P4EQ

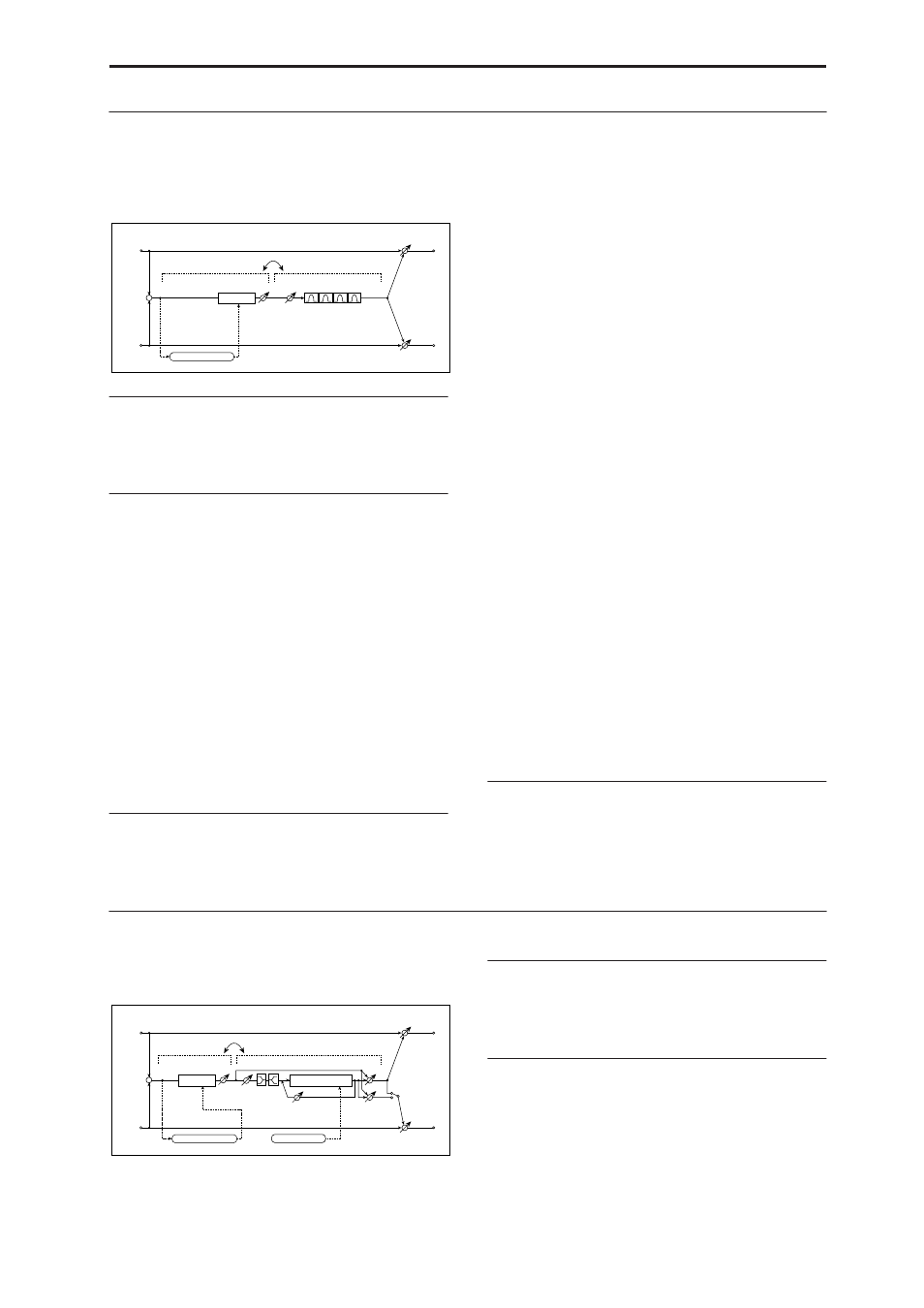

This effect combines a mono limiter and a four-band
parametric equalizer. You can change the order of the
effects.
Routing
Routing [Limiter ➝ P4EQ, P4EQ ➝ Limiter]
Switches the order of the limiter and parametric EQ.
LIMITER
Ratio [1.0 : 1…50.0 :1, Inf :1]
Sets the signal compression ratio. p.765.
Threshold [dB] [–40…0]
Sets the level above which the compressor is applied.
p.766.
Attack [1…100]
Sets the attack time. p.766.
Release [1…100]
Sets the release time. p.766.
Gain Adjust [dB] [–Inf, –38…+24]
Sets the limiter output gain. p.766.
PARAMETRIC EQ
Trim [0…100]
Sets the parametric EQ input level.
Band1 Fc [Hz] [20…1.00k]
Sets the center frequency of Band 1.
Q [0.5…10.0]
Sets the bandwidth of Band 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 1.
Band2 Fc [Hz] [50…5.00k]
Sets the center frequency of Band 2.
Q [0.5…10.0]
Sets the bandwidth of Band 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 2.
Band3 Fc [Hz] [300…10.00k]
Sets the center frequency of Band 3.
Q [0.5…10.0]
Sets the bandwidth of Band 3. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 3.
Band4 Fc [Hz] [500…20.00k]
Sets the center frequency of Band 4.
Q [0.5…10.0]
Sets the bandwidth of Band 4. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 4.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
122: Limiter - Chorus/Flanger
This effect combines a mono limiter and a
chorus/flanger. You can change the order of the effects.
Routing
Routing [Limiter ➝ Flanger, Flanger ➝ Limiter]
Switches the order of the limiter and chorus/flanger.
LIMITER
Ratio [1.0 : 1…50.0 :1, Inf :1]
Sets the signal compression ratio. p.765.
Threshold [dB] [–40…0]
Sets the level above which the compressor is applied.
p.766.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Limiter
Trim
Parametric 4Band EQ
Limiter
Gain Adjust
Envelope - Control
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Feedback
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
—
+
Limiter
Limiter
Gain Adjust
Envelope - Control
LEQ HEQ EQ Trim
Chorus/Flanger
LFO: Tri / Sine
