Effect Guide
790

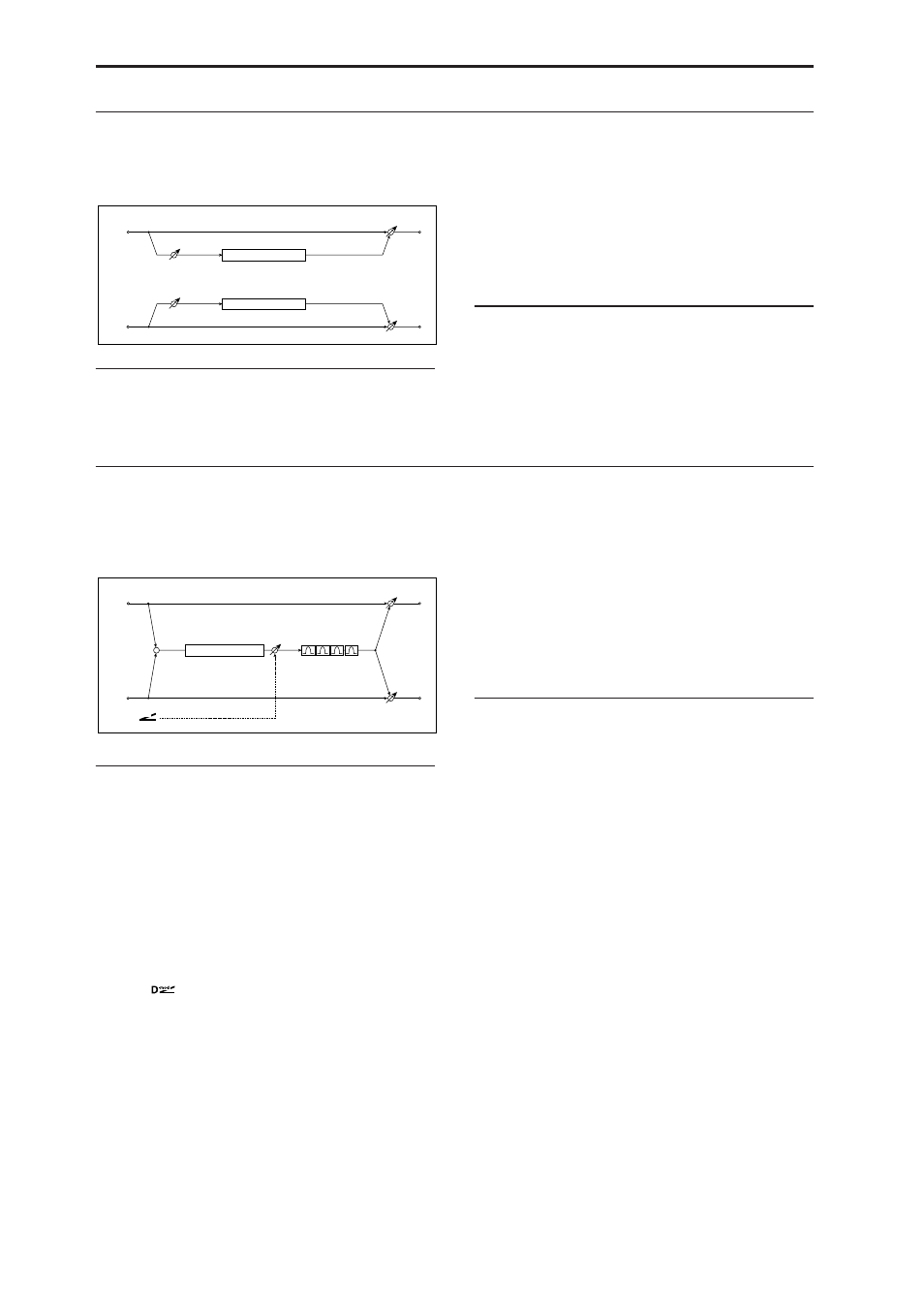

029: Stereo Guitar Cabinet
This simulates the acoustical character of a guitar
amp’s speaker cabinet.
CABINET SIMULATOR
Trim [0…100]
Sets the input level.
Type [TWEED 1x12, TWEED 4x10, BLACK 2x10,
BLACK 2x12, AC15, AC30, AD412,
UK H30, UK T75, US V30]
Selects the type of the cabinet. p.791.
Air [0…100]
Sets the mic position.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
030: Guitar Amp Model +P4EQ
This combines a guitar amp simulation (which even
faithfully replicates the distortion and tone control
circuitry) with a four-band equalizer.
GUITAR AMP MODEL
Type [AC15, AC15TB, AC30, AC30TB, UK BLUES,
UK 70'S, UK 80'S, UK 90'S, UK MODERN, US
MODERN, US HIGAIN, BOUTIQUE OD, BOUTIQUE
CL, BLACK 2x12, TWEED 1x12, TWEED 4x10]
Selects the type of the amplifier. For more information,
see “Type” on page 791.
Gain [0…100]
Sets the input gain.
Volume [0…100]
Sets the output level.
Source [Off…Tempo]
Selects the modulation source for the output level.
Amount [+/–100]
Sets the modulation amount of the output level.
Bass [0…100]
Sets the bass (low range) level.
Middle [0…100]
Sets the middle (mid range) level.
Treble [0…100]
Sets the treble (high range) level.
Cut / Presence [0…100]
This controls the high-frequency tone.
If the Type is AC15…AC30TB, the Cut (high frequency
attenuation) parameter is available. For other Type
settings, the Presence (high frequency boost)
parameter is available.
PARAMETRIC EQ
Band1 Fc [Hz] [20…1.00k]
Sets the center frequency of Band 1.
Q [0.5…10.0]
Sets Band 1’s bandwidth.
Gain [dB] [–18…+18]
Sets the gain of Band 1.
Band2 Fc [Hz] [50…5.00k]
Sets the center frequency of Band 2.
Q [0.5…10.0]
Sets Band 2’s bandwidth.
Gain [dB] [–18…+18]
Sets the gain of Band 2.
Band3 Fc [Hz] [300…10.00k]
Sets the center frequency of Band 3.
Q [0.5…10.0]
Sets Band 3’s bandwidth.
Gain [dB] [–18…+18]
Sets the gain of Band 3.
Band4 Fc [Hz] [500…20.00k]
Sets the center frequency of Band 4.
Left
Trim
Trim
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Cabinet Simulator
Cabinet Simulator
+
Left
Right
Wet / Dry
Volume
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Parametric 4Band EQ
D -mod
Guitar Amp Model
