Effect Guide
858

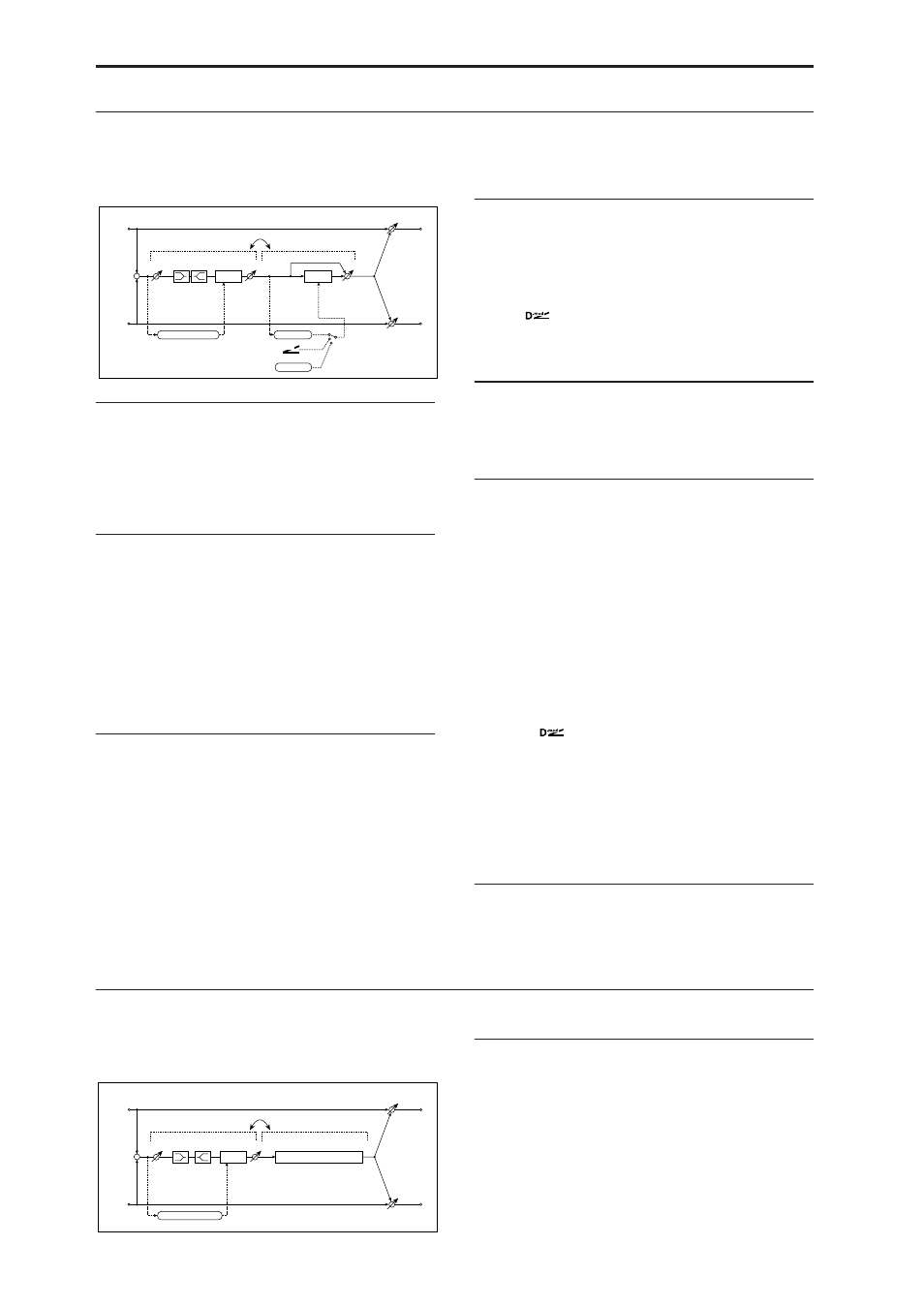

114: Comp - Wah
This effect combines a mono compressor and a wah.
You can change the order of the connection.
Routing
Routing [Comp › Wah, Wah › Comp]
Switches the order of the compressor and wah.
COMPRESSOR
Pre EQ
Trim [0…100]
Sets the EQ input level.
Pre LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
Pre HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ
COMPRESSOR
Sensitivity [0…100]
Sets the sensitivity (see “Sensitivity” on page 764).
Attack [0…100]
Sets the attack level (see “Attack” on page 764).
Output Level [0…100]
Sets the compressor output level (see “OUTPUT” on
page 764).
WAH
CONTROL
Sweep Mode [Auto, Dmod, LFO]
Selects the control from auto-wah, modulation source,
and LFO (see “Sweep Mode” on page 776).
Source [Off…Tempo]
Selects the modulation source for the wah when Sweep
Mode=Dmod.
LFO
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
WAH
Frequency Bottom [0…100]
Sets the lower limit of the wah center frequency. p.777.
Frequency Top [0…100]
Sets the upper limit of the wah center frequency. p.777.
Resonance [0…100]
Sets the resonance amount.
Low Pass Filter [Check-box]
Switches the wah low pass filter on and off.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the wah effect balance.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the wah.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the wah.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
115: Comp - Amp Sim
This effect combines a mono compressor and an amp
simulation. You can change the order of the effects.
Routing
Routing [Comp ➝ Amp, Amp ➝ Comp]
Switches the order of the compressor and amp
simulation.
Left
Right
Wet / Dry
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Wah/Auto Wah
Wah
D -mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
LEQ HEQ EQ Trim
Output Level
Envelope - Control
Comp
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Amp Simulation
Amp Simulation Filter
LEQ HEQ EQ Trim
Output Level
Envelope - Control
Comp
