EQ and Filters 024: Stereo Wave Shaper
785
Wave Shape Tables
Pre LPF [0…100]
Sets the damping amount in the high range.
Source [Off…Tempo]
Selects the source that will modulate the amount of
high range damping.
Amount [+/–100]
Sets the depth by which the amount of high range
damping will be modulated.
Scale [dB] [–36…+36]
This sets the input level to the wave shape table. Even
for the same waveform, changing the input level will
dramatically modify the output waveform and the
tone.
Source [Off…Tempo]
Selects the modulation source for the Scale.
Amount [–72…+72]
Selects the modulation amount for the Scale.
EQ
LEQ Fc [Low, Mid-Low]
Selects the cutoff frequency (low or mid-low) of the
low-range equalizer.
LEQ Gain [dB] [–15.0…+15.0]
Sets the gain of the Low EQ.
HEQ Fc [High, Mid-High]
Selects the cutoff frequency (high or mid-high) of the
high-range equalizer.
HEQ Gain [dB] [–15.0…+15.0]
Sets the gain of the High EQ.
Output Level [0…100]
Sets the output level.
Source [Off…Tempo]
Selects the modulation source for the Output Level.
Amount [+/–100]
Sets the modulation amount for the Output Level.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

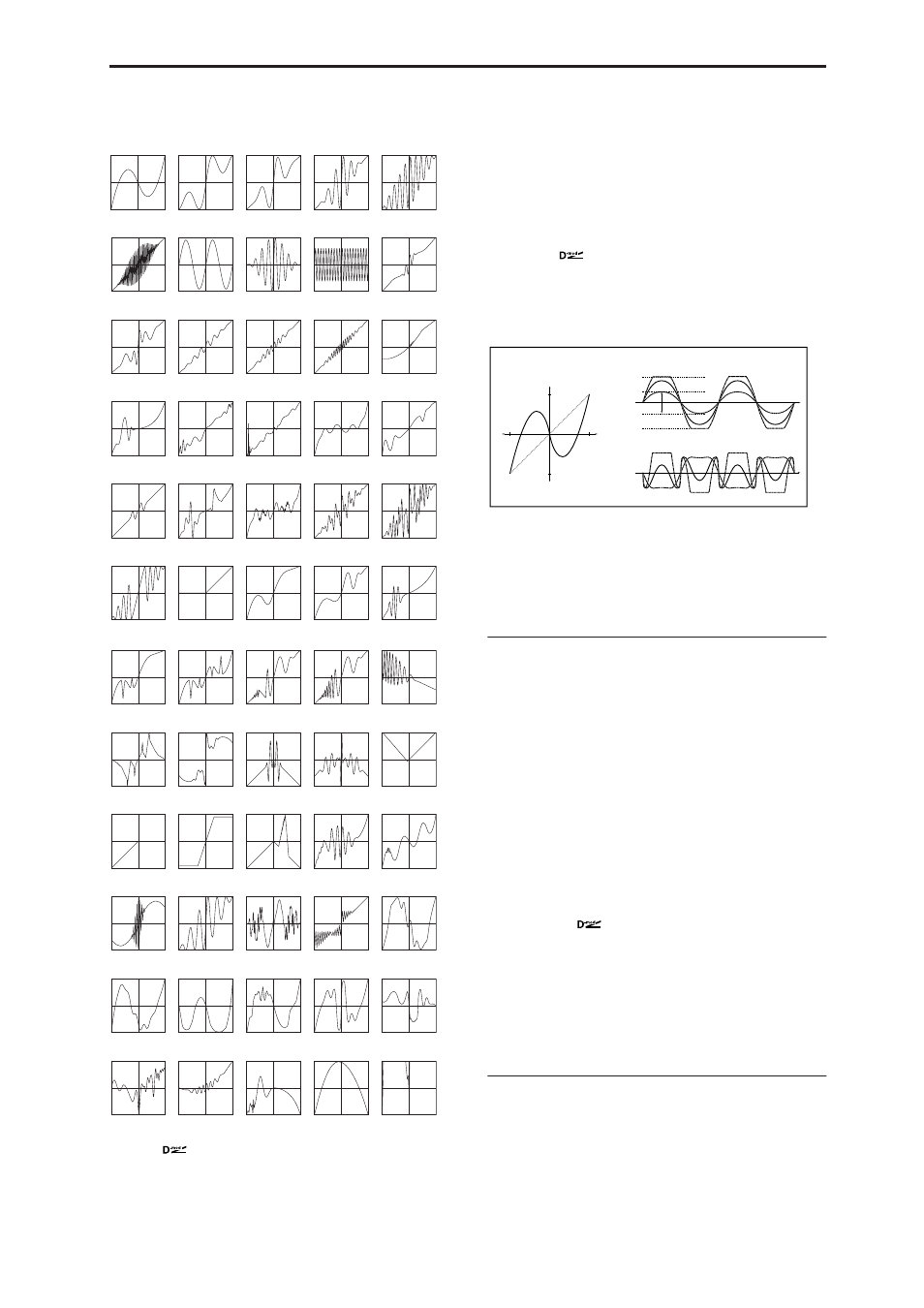

00:Sine
06:Double Sine
01:2 Cycle 02:Frequency3 03:Frequency7
07:Phase
04:10 Cycle
08:20 Cycle 05:Cocoon
20:Take1
09:Attack Up
10:Symmetry 11:Frequency8 12:Resonant1 13:Resonant2
23:Zigzag 24:High Pass
15:GeoGraphic
29:Log Sine1
34:Experiment
14:Zinger
16:Reptile 19:Star 17:SyncSter 18:Profile
22:Forest 21:Vital Signs
36:Pulse5
26:WS Bass
40:Integers
39:Inverter1
41:Super Square
59:Wurly
33:Take5
35:Real Steep
42:Line Sine2
55:Claver
37:BowwBass 38:Pulse Octave
43:Comb
32:Take4
52:Take6
45:Rezzo
44:Snake
47:Accordion 48:Triangles 46:Super Resonant
57:Rubber
27:Soft Curve
30:Take2 31:Take3
49:Inverter2
50:7th Resonant 53:Exciter
58:Parabola
51:Waves 54:Booster
56:Soft Rord
28:Smoothy 25:Line Sine1
In
+1.0
-1.0
Scale
Out
In
Out
Table : "CLICK1"
Wave Shaper - Scale
