Appendices
1038

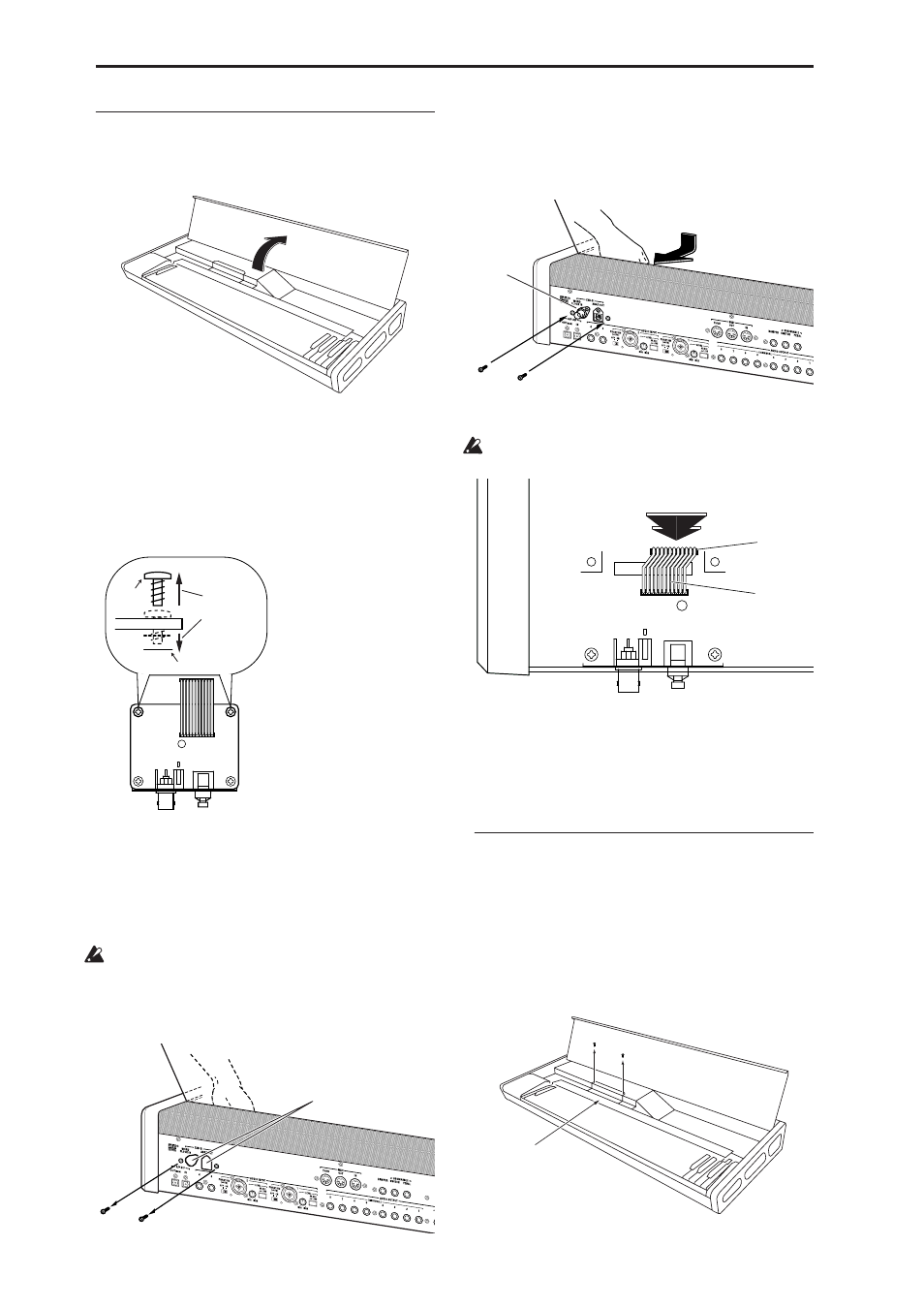

Installing the EXB-DI
1. Open the front panel as described in “Opening
and closing the front panel,” steps 1–6.
2. Remove the EXB-DI from its bag. Be careful not to
touch the contacts or the components.
3. Remove the two screws and washers from the two
corners of the EXB-DI board
Note: Be careful to save the screws that you remove.
Some models that can use the EXB-DI, will require
these two screws.
4. Detach and remove the EXB-DI cover that blocks
the EXB-DI opening in the rear panel from the
inside.
Use one hand to support the cover from inside, and
remove two screws from outside to detach the
cover. Then remove the cover.
Do not allow the cover to fall into the OASYS.
The two screws you removed will be used to fasten
the EXB-DI in place.
The cover you removed will not be used. Do not
leave it inside the OASYS.
5. With the connectors of the EXB-DI protruding
from the rear panel of the OASYS, support the
EXB-DI with one hand and use the two screws you
removed to fasten the EXB-DI from the rear of the
OASYS.
6. Attach the cable as shown in the diagram. Firmly
press the cable all the way into the connector.
Do not touch any part of the circuit board other than
the connector to which you are connecting the cable.
7. Close the front panel as described in “Opening
and closing the front panel,” steps 8 and 9.
8. After you have completed all the above steps, turn
on the power and verify that the EXB-DI has been
installed correctly. (See “Checking after
installation” on page 1036)
Installing memory
Before installing additional memory, please confirm
that it meets the required technical specifications, as
detailed under “DRAM DIMM” on page 1036.
1. Open the front panel as described in “1.
Opening/closing the front panel,” steps 1–6.
2. Remove the two screws from the memory/calendar
battery cover.
Washer
Screw Remove
screw and
washer.
Cover
EXB-DI
Connector
Cable
Press all the way in
Memory/calendar
battery cover
