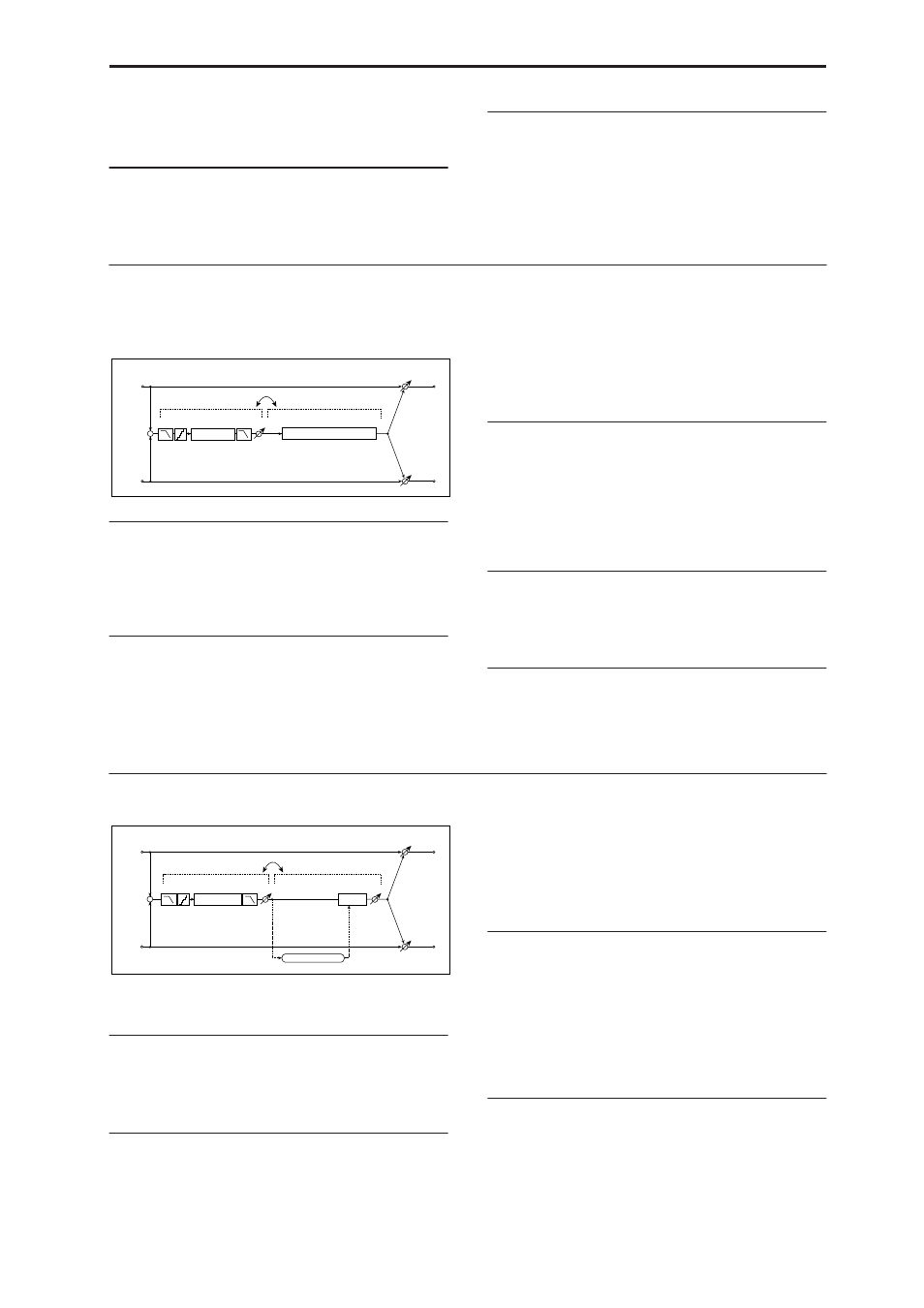

Mono-Mono Serial 135: Decimator - Amp Sim
873
Amount [+/–100]
Sets the Wet/Dry modulation amount for the wah.
AMP SIM
Amplifier Type [SS, EL84, 6L6]
Selects the type of guitar amplifier.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
135: Decimator - Amp Sim
This effect combines a mono decimator and an amp
simulation. You can change the order of the effects.
Routing
Routing [Decimator ➝ Amp, Amp ➝ Decimator]
Switches the order of the decimator and amp
simulation.
DECIMATOR
Pre LPF [Check-box]
Turn the harmonic noise caused by lowered sampling
on and off. See “Pre LPF” on page 783.
Sampling Frequency [Hz] [1.00k…] 48.00k
Sets the sampling frequency.
High Damp [%] [0…100]
Sets the ratio of high-range damping.
BIT SHAPE
Resolution [bits] [4…24]
Sets the data bit length. p.783.
Output Level [0…100]
Sets the decimator output level. p.783.
AMP SIM
Amplifier Type [SS, EL84, 6L6]
Selects the type of guitar amplifier.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
136: Decimator - Comp
This effect combines a mono decimator and a
compressor. You can change the order of the effects.
Routing
Routing [Decimator ➝ Comp, Comp ➝ Decimator]
Switches the order of the decimator and compressor.
DECIMATOR
Pre LPF [Check-box]
Enables and disables a filter which prevents aliasing
noise. See “Pre LPF” on page 783.
Sampling Frequency [Hz] [1.00k…] 48.00k
Sets the sampling frequency.
High Damp [%] [0…100]
Sets the ratio of high-range damping.
BIT SHAPE
Resolution [bits] [4…24]
Sets the data bit length. p.783.
Output Level [0…100]
Sets the decimator output level. p.783.
COMPRESSOR
COMPRESSOR
Sensitivity [1…100]
Sets the sensitivity. p.764.
Attack [1…100]
Sets the attack level. p.764.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Decimator
Routing
Amp Simulation
Amp Simulation Filter
Pre LPF High Damp
Output Level
Decimator
Resolution
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Decimator
Routing
Pre LPF High Damp
Output Level
Decimator
Resolution
Compressor
Comp
Output Level
Envelope - Control
