Modulation and Pitch Shift 066: Stereo Frequency Shifter
819

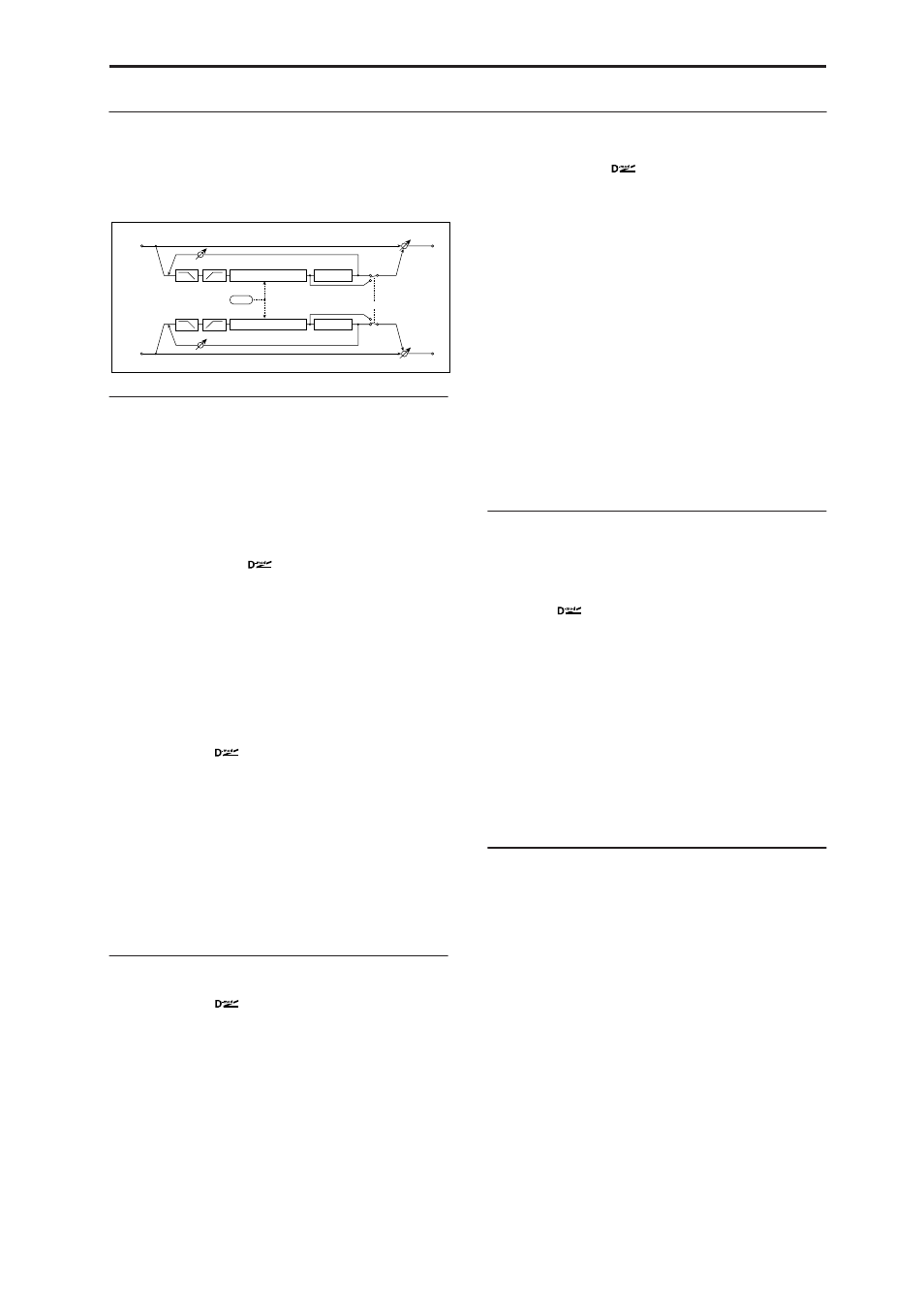

066: Stereo Frequency Shifter
This is a stereo effect that shifts the frequency of the
input signal. You can use LFO modulation and delay to
produce a wide range of pitch-change effects.
FREQUENCY SHIFTER
High Damp [%] [0…99]
Sets the high-frequency attenuation of the delayed
sound.
HPF Fc [Hz] [20…11.90k]
Sets the cutoff frequency for the high pass filter.
Frequency Shift [Hz] [–6.00k…+6.00k]
Sets the amount of frequency shift.
Source [Off…Tempo]
Selects the modulation source that will control
frequency shift.
Amount [–6.00k…+6.00k]
Sets the modulation amount for controlling frequency
shift.
LFO Depth [Hz] [–6.00k…+6.00k]
Sets the depth by which the LFO will modulate the
frequency shift.
Source [Off…Tempo]
Selects the modulation source that will control LFO
modulation of frequency shift.
Amount [–6.00k…] +6.00k
Sets the amount by which the modulation source will
control LFO modulation of the frequency shift.
LFO
Frequency [Hz] [0.02…20.00]
This sets the LFO speed, in Hz. It applies only when
MIDI/Tempo Sync, below, is Off.
Source [Off…Tempo]
This selects a modulation source for the Frequency.
Amount [–20.00…+20.00]
This sets the Frequency modulation amount, in Hz.
MIDI/Tempo Sync [Check-box]
BPM [MIDI, 40.00…240.00]
Base Note [ … ]
Times [x1…x32]
When MIDI/Tempo Sync is on, the LFO speed is set by
BPM, Base Note, and Times, instead of Frequency. For
more information, see “MIDI/Tempo Sync” on
page 777.
Type [Individual, Common1, Common2]
This controls whether the effect uses its individual
LFO, or one of the Common FX LFOs. For more
information, see “LFO Type” on page 777.
Common LFO Phase Offset [degrees] [+/–180]
When Type is set to Common FX LFO 1 or 2, this lets
you offset the phase from the master LFO.
DELAY
Delay Time [msec] [0.0…2730.0]
Sets the delay time.
Feedback [+/–100]
Sets the feedback amount.
Source [Off…Tempo]
Selects the modulation source of feedback amount.
Amount [+/–100]
Sets the depth by which feedback amount will be
modulated.
Output Select [pre-delay, post-delay]
Selects whether the pre-delay or the post-delay sound
will be output.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
High Damp HPF
High Damp HPF
Frequency Shifter Delay
Pre-Delay
Feedback
Feedback
Post-Delay
Output Select
LFO
Frequency Shifter Delay
