Effect Guide
854
Mono-Mono Serial

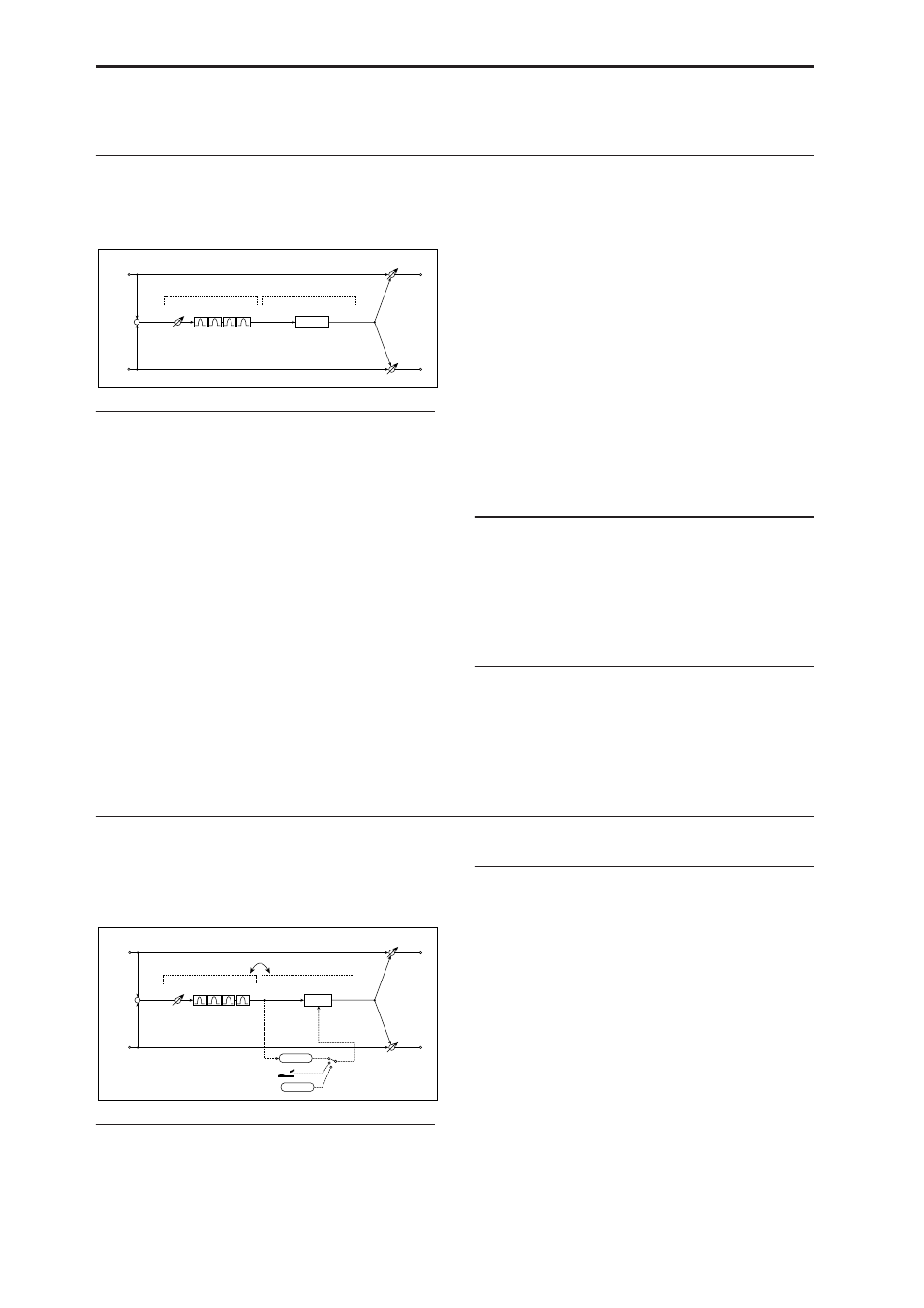

109: P4EQ - Exciter
This effect combines a mono four-band parametric
equalizer and an exciter.
PARAMETRIC EQ
Trim
[0…100]
Sets the parametric EQ input level.
Band1 Fc [Hz]
[20…1.00k]
Sets the center frequency of Band 1.
Q
[0.5…10.0]
Sets the bandwidth of Band 1. p.773.
Gain [dB]
[–18…+18]
Sets the gain of Band 1.
Band2 Fc [Hz]
[50…5.00k]
Sets the center frequency of Band 2.
Q
[0.5…10.0]
Sets the bandwidth of Band 2. p.773.
Gain [dB]
[–18…+18]
Sets the gain of Band 2.
Band3 Fc [Hz]
[300…10.00k]
Sets the center frequency of Band 3.
Q
[0.5…10.0]
Sets the bandwidth of Band 3. p.773.
Gain [dB]
[–18…+18]
Sets the gain of Band 3.
Band4 Fc [Hz]
[500…20.00k]
Sets the center frequency of Band 4.
Q
[0.5…10.0]
Sets the bandwidth of Band 4. p.773.
Gain [dB]
[–18…+18]
Sets the gain of Band 4.
EXCITER
Emphasis Frequency
[0…70]
Sets the frequency range to be emphasized. p.775.
Exciter Blend
[+/–100]
Sets the intensity (depth) of the Exciter effect. p.775.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
110: P4EQ - Wah
This effect combines a mono four-band parametric
equalizer and a wah. You can change the order of the
connection.
Routing
Routing
[P4EQ
➝ Wah, Wah ➝ P4EQ]
Changes the order of the parametric equalizer and wah
connection.
P4EQ
PARAMETRIC EQ
Trim
[0…100]
Sets the parametric EQ input level.
Band1 Fc [Hz]
[20…1.00k]
Sets the center frequency of Band 1.
Q
[0.5…10.0]
Sets the bandwidth of Band 1. p.773.
Gain [dB]
[–18…+18]
Sets the gain of Band 1.
Band2 Fc [Hz]
[50…5.00k]
Sets the center frequency of Band 2.
Q
[0.5…10.0]
Sets the bandwidth of Band 2. p.773.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Exciter
Parametric 4Band EQ
Exciter
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ
Routing
Wah/Auto Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
Wah
