Mono-Mono Serial 116: Comp - OD/HiGain
859
COMPRESSOR
Pre EQ
Trim [0…100]
Sets the EQ input level.
LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
COMPRESSOR
Sensitivity [1…100]
Sets the sensitivity. p.764.
Attack [1…100]
Sets the attack level. p.764.
Output Level [0…100]
Sets the compressor output level. p.4.
AMP SIM
Amplifier Type [SS, EL84, 6L6]
Selects the type of guitar amplifier.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

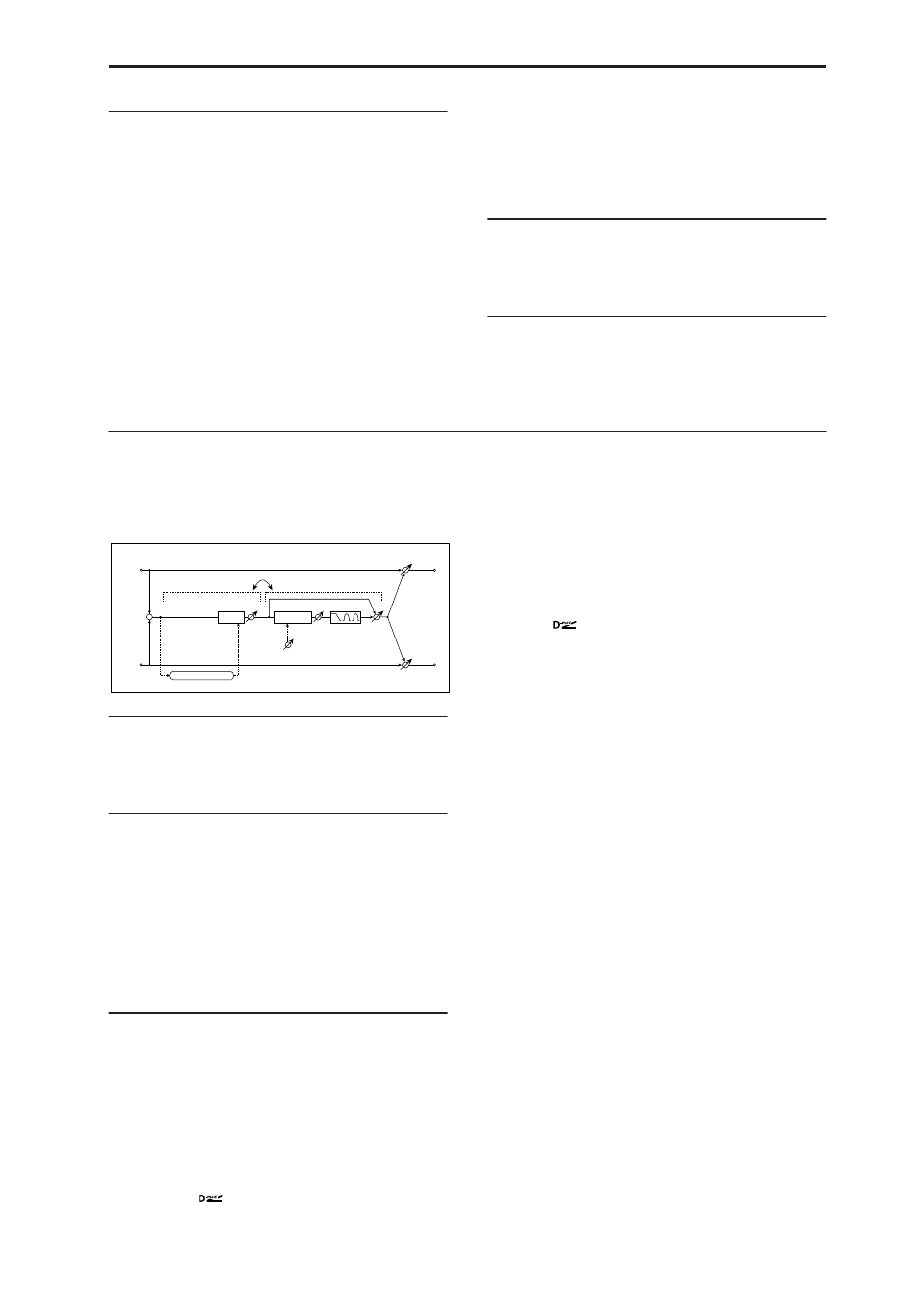

116: Comp - OD/HiGain
This effect combines a mono compressor and an
overdrive/high-gain distortion. You can change the
order of the effects.
Routing
Routing [Comp ➝ OD/HG, OD/HG ➝ Comp]
Switches the order of the compressor and overdrive.
COMPRESSOR
Sensitivity [1…100]
Sets the sensitivity. p.764.
Attack [1…100]
Sets the attack level. p.764.
Output Level [0…100]
Sets the compressor output level. p.764.
OD/HI-GAIN
DRIVE
Drive Mode [Overdrive, Hi-Gain]
Switches between overdrive and high-gain distortion.
Drive [1…100]
Sets the degree of distortion. See “DRIVE” on page 789.
Output Level [0…50]
Sets the overdrive output level.
Source [Off…Tempo]
Selects the modulation source for the overdrive output
level.
Amount [–50…+50]
Sets the modulation amount of the overdrive output
level.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the overdrive effect balance.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
overdrive.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the
overdrive.
EQ
Low Fc [Hz] [20…1.00k]
Sets the center frequency for Low EQ (shelving type).
Gain [dB] [–18…+18]
Sets the gain of the Low EQ.
Mid1 Fc [Hz] [300…10.00k]
Sets the center frequency for Mid/High EQ 1 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 1.
Mid2 Fc [Hz] [500…20.00k]
Sets the center frequency for Mid/High EQ 2 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 2. p.773.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Compressor
Output Level
Envelope - Control
Comp
Wet / Dry
