Effect Guide
864
Attack [1…100]
Sets the attack time. p.766.
Release [1…100]
Sets the release time. p.766.
Gain Adjust [dB] [–Inf, –38…+24]
Sets the limiter output gain. p.766.
CHORUS/FLANGER
Pre EQ
Trim [0…100]
Sets the EQ input level.
LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
LFO
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
Waveform [Triangle, Sine]
Selects the LFO Waveform.
FLANGER
Delay Time [msec] [0.0…1350.0]
Sets the delay time.
Depth [0…100]
Sets the depth of LFO modulation.
Feedback [+/–100]
Sets the feedback amount. p.803.
Output Mode [Normal, Wet Invert]
Selects whether the chorus/flanger output is mono or
pseudo-stereo. For more information, see “Output
Mode” on page 857.
When Routing is set to Flanger→ → → → Comp, Output Mode
will automatically be set to Normal.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the effect balance of the chorus/flanger. p.780,
p.804.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
chorus/flanger.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the
chorus/flanger.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

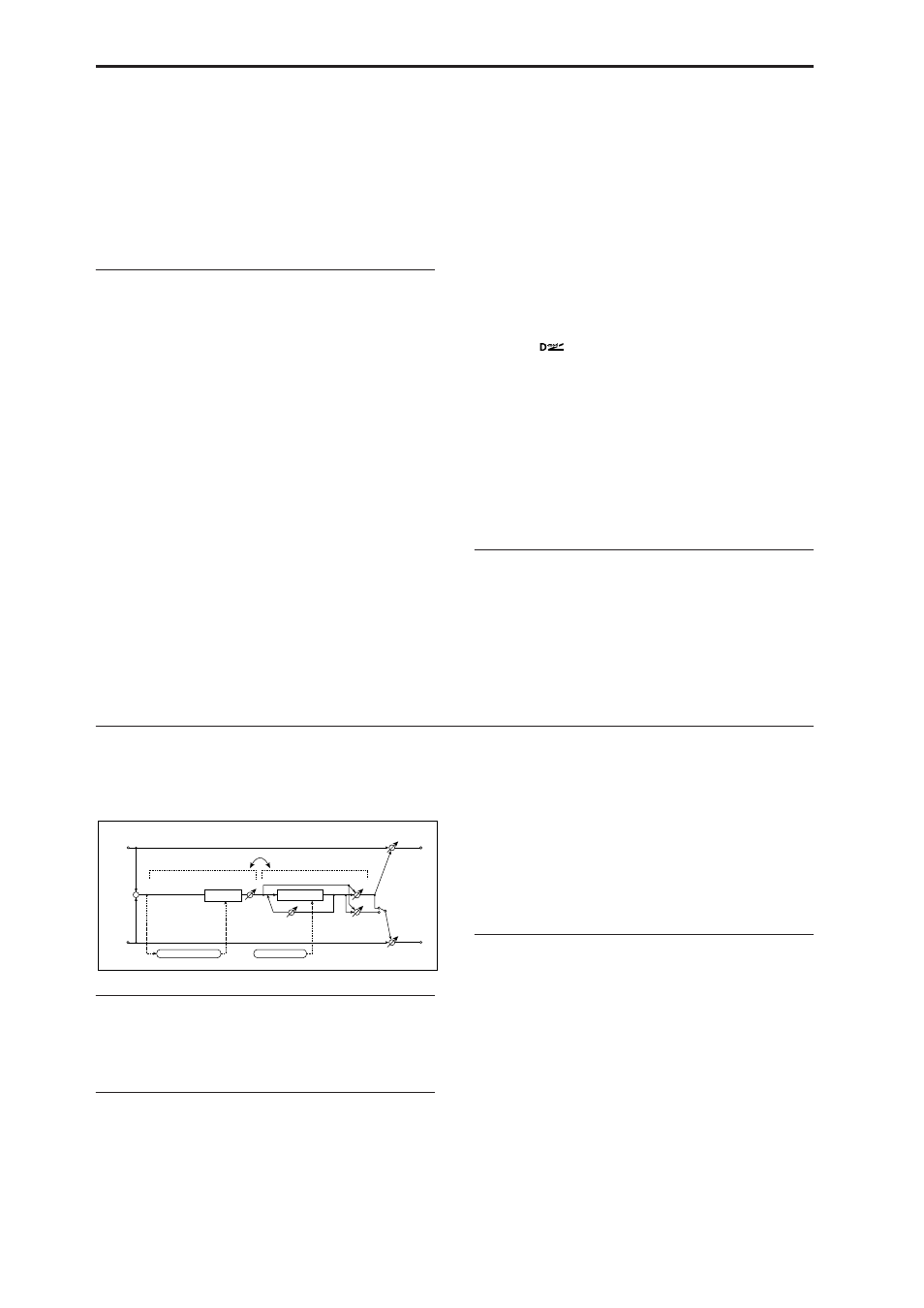

123: Limiter - Phaser
This effect combines a mono limiter and a phaser. You
can change the order of the effects.
Routing
Routing [Limiter ➝ Phaser, Phaser ➝ Limiter]
Switches the order of the limiter and phaser.
LIMITER
Ratio [1.0 : 1…50.0 :1, Inf :1]
Sets the signal compression ratio. p.765.
Threshold [dB] [–40…0]
Sets the level above which the compressor is applied.
p.766.
Attack [1…100]
Sets the attack time. p.766.
Release [1…100]
Sets the release time. p.766.
Gain Adjust [dB] [–Inf, –38…+24]
Sets the limiter output gain. p.766.
PHASER
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
PHASER
Manual [0…100]
Sets the frequency to which the effect is applied.
Depth [0…100]
Sets the depth of LFO modulation.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Limiter
Limiter
Gain Adjust
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
—
+
