Mono-Mono Serial 133: OD/Hi Gain - Multitap Dly
871
Drive [1…100]
Sets the degree of distortion.
Output Level [0…50]
Sets the overdrive output level.
Source [Off…Tempo]
Selects the modulation source for the overdrive output
level.
Amount [–50…+50]
Sets the modulation amount of the overdrive output
level.
EQ
Low Fc [Hz] [20…1.00k]
Sets the center frequency for Low EQ (shelving type).
Gain [dB] [–18…+18]
Sets the gain of the Low EQ.
Mid1 Fc [Hz] [300…10.00k]
Sets the center frequency for Mid/High EQ 1 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 1.
Mid2 Fc [Hz] [500…20.00k]
Sets the center frequency for Mid/High EQ 2 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 2.
PHASER
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
PHASER
Manual [0…100]
Sets the frequency to which the effect is applied.
Depth [0…100]
Sets the depth of LFO modulation.
Resonance [+/–100]
Sets the resonance amount. p.805.
Output Mode [Normal, Wet Invert]
Selects whether the phaser output is mono or pseudo-
stereo. For more information, see “Output Mode” on
page 857.
When Routing is set to Phaser→ → → → Comp, Output Mode
will automatically be set to Normal.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the phaser effect balance. p.780, p.806.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the phaser.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the phaser.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

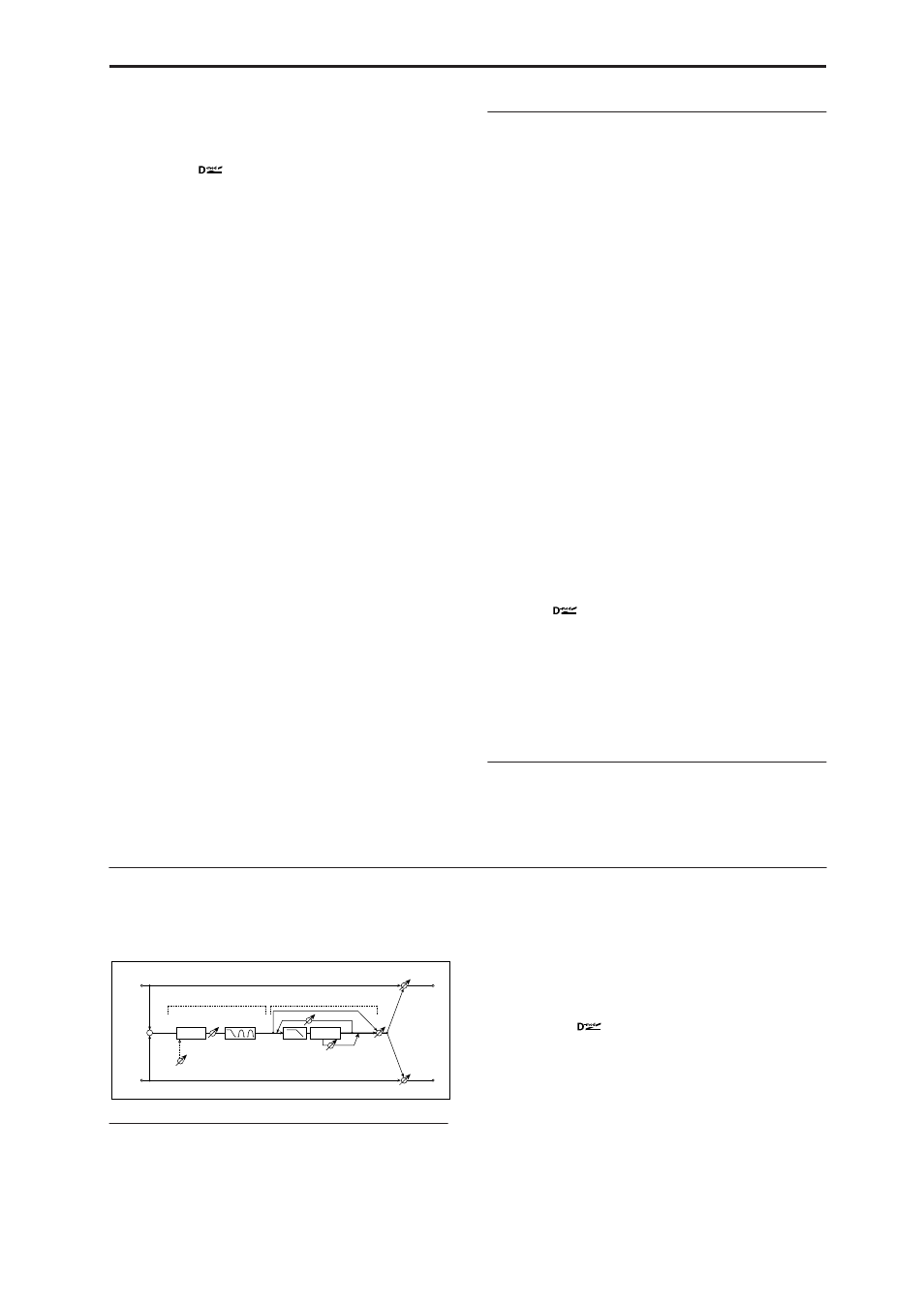

133: OD/Hi Gain - Multitap Dly
This effect combines a mono overdrive/high-gain
distortion and a multitap delay
OD/HI-GAIN
DRIVE
For more information on these parameters, see
“DRIVE” on page 788.
Drive Mode [Overdrive, Hi-Gain]
Switches between overdrive and high-gain distortion.
Drive [1…100]
Sets the degree of distortion.
Output Level [0…50]
Sets the overdrive output level
Source [Off…Tempo]
Selects the modulation source for the overdrive output
level.
Amount [–50…+50]
Sets the modulation amount of the overdrive output
level.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
