Effect Guide
866
Routing
Routing [Exciter ➝ Comp, Comp ➝ Exciter]
Switches the order of the exciter and compressor.
EXCITER
Pre EQ
Trim [0…100]
Sets the EQ input level.
LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
EXCITER
Emphasis Frequency [0…70]
Sets the frequency range to be emphasized. p.775.
Exciter Blend [+/–100]
Sets the intensity (depth) of the Exciter effect. p.775.
COMPRESSOR
Sensitivity [1…100]
Sets the sensitivity. p.764.
Attack [1…100]
Sets the attack level. p.764.
Output Level [0…100]
Sets the compressor output level. p.764.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

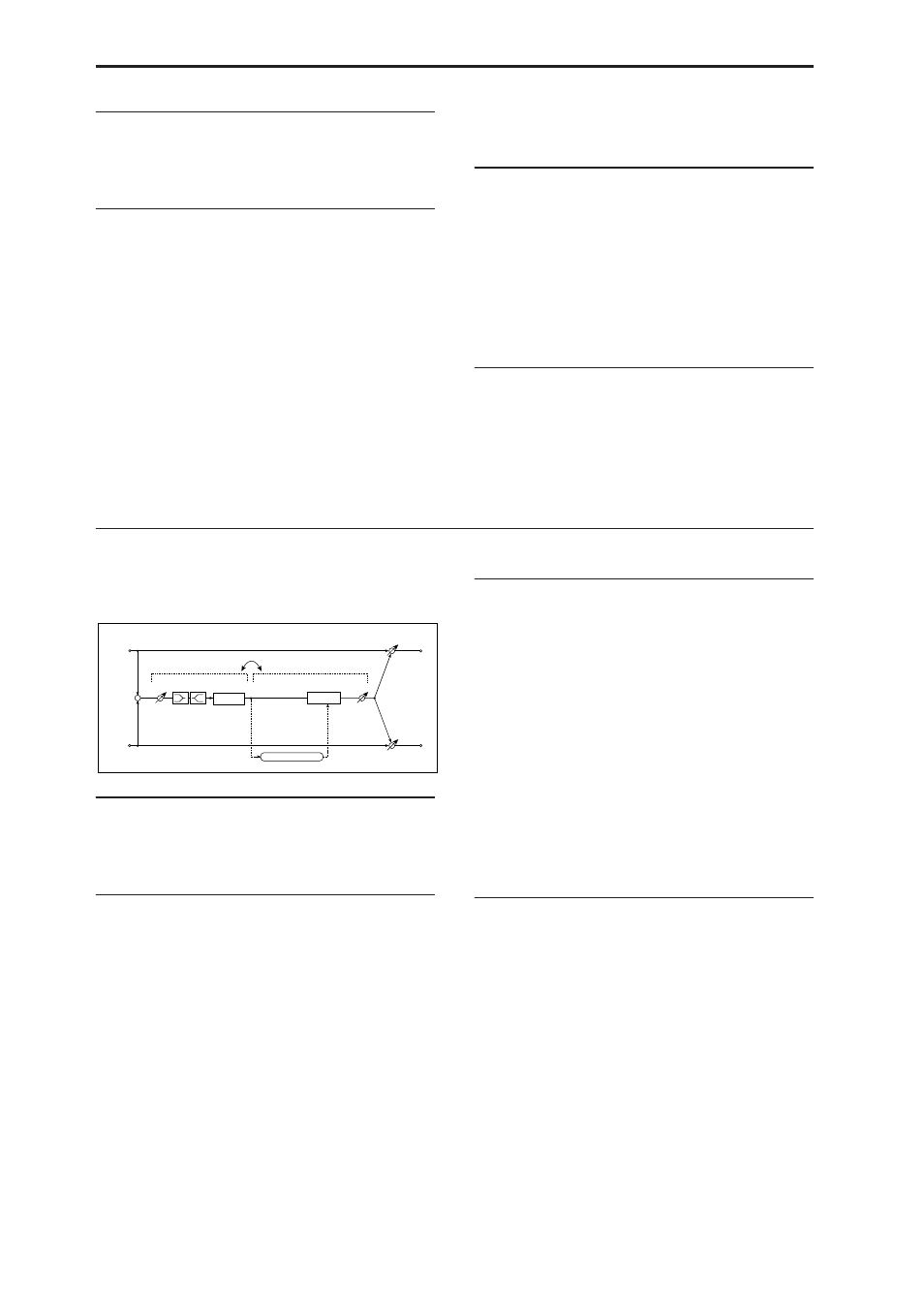

126: Exciter - Limiter
This effect combines a mono exciter and a limiter. You
can change the order of the effects.
Routing
Routing [Exciter ➝ Limiter, Limiter ➝ Exciter]
Switches the order of the exciter and limiter.
EXCITER
Pre EQ
Trim [0…100]
Sets the EQ input level.
LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
EXCITER
Emphasis Frequency [0…70]
Sets the frequency range to be emphasized. p.775.
Exciter Blend [+/–100]
Sets the intensity (depth) of the Exciter effect. p.775.
LIMITER
Ratio [1.0 :1…50.0 :1, Inf :1]
Sets the signal compression ratio. p.765.
Threshold [dB] [–40…0]
Sets the level above which the compressor is applied.
p.766.
Attack [1…100]
Sets the attack time. p.766.
Release [1…100]
Sets the release time. p.766.
Gain Adjust [dB] [–Inf, –38…+24]
Sets the limiter output gain. p.766.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Routing
LEQ HEQ EQ Trim
Exciter
Exciter Limiter
Limiter
Gain Adjust
Envelope - Control
