Effect Guide
870
Drive [1…100]
Sets the degree of distortion.
Output Level [0…50]
Sets the overdrive output level.
Source [Off…Tempo]
Selects the modulation source for the overdrive output
level.
Amount [–50…+50]
Sets the modulation amount of the overdrive output
level.
EQ
Low Fc [Hz] [20…1.00k]
Sets the center frequency for Low EQ (shelving type).
Gain [dB] [–18…+18]
Sets the gain of the Low EQ.
Mid1 Fc [Hz] [300…10.00k]
Sets the center frequency for Mid/High EQ 1 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 1.
Mid2 Fc [Hz] [500…20.00k]
Sets the center frequency for Mid/High EQ 2 (peaking
type).
Q [0.5…10.0]
Sets the band width of Mid/High EQ 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Mid/High EQ 2.
CHORUS/FLANGER
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
FLANGER
Delay Time [msec] [0.0…1350.0]
Sets the delay time.
Depth [0…100]
Sets the depth of LFO modulation.
Feedback [+/–100]
Sets the feedback amount. p.803.
Output Mode [Normal, Wet Invert]
Selects whether the chorus/flanger output is mono or
pseudo-stereo. For more information, see “Output
Mode” on page 857.
When Routing is set to Flanger→ → → → OD/HG, Output
Mode will automatically be set to Normal.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the effect balance of the chorus/flanger. p.780,
p.804.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
chorus/flanger.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the
chorus/flanger.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
132: OD/Hi Gain - Phaser
This effect combines a mono overdrive/high-gain
distortion and a phaser. You can change the order of
the effects.
Routing
Routing [OD/HG ➝ Phaser, Phaser ➝ OD/HG]
Switches the order of the overdrive and phaser.
OD/HI-GAIN
DRIVE
For more information on these parameters, see
“DRIVE” on page 788.
Drive Mode [Overdrive, Hi-Gain]
Switches between overdrive and high-gain distortion.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+

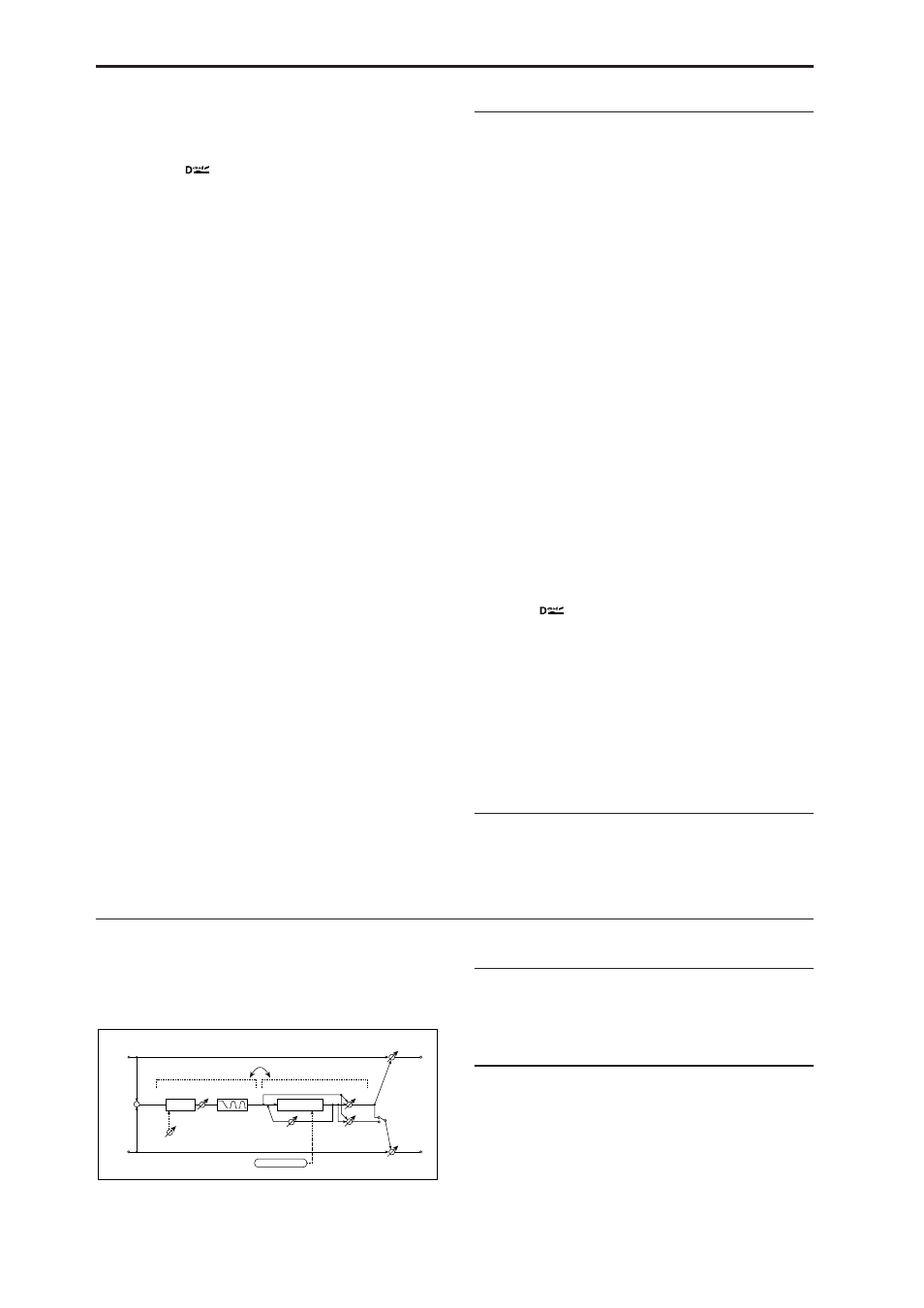

Routing
Overdrive / Hi-Gain
3 Band PEQ
Output Level
Mode: Overdrive / Hi-Gain
Drive
Driver
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
—
+
