Mono-Mono Serial 119: Comp - Phaser
861
LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
COMPRESSOR
Sensitivity [1…100]
Sets the sensitivity. p.764.
Attack [1…100]
Sets the attack level. p.764.
Output Level [0…100]
Sets the compressor output level. p.764.
CHORUS/FLANGER
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
FLANGER
Delay Time [msec] [0.0…1350.0]
Sets the delay time.
Depth [0…100]
Sets the depth of LFO modulation.
Feedback [+/–100]
Sets the feedback amount. p.803.
Output Mode [Normal, Wet Invert]
Selects whether the chorus/flanger output is mono or
pseudo-stereo. For more information, see “Output
Mode” on page 857.
When Routing is set to Flanger→ → → → Comp, Output Mode
will automatically be set to Normal.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the effect balance of the chorus/flanger. p.780,
p.804.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
chorus/flanger.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the
chorus/flanger.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

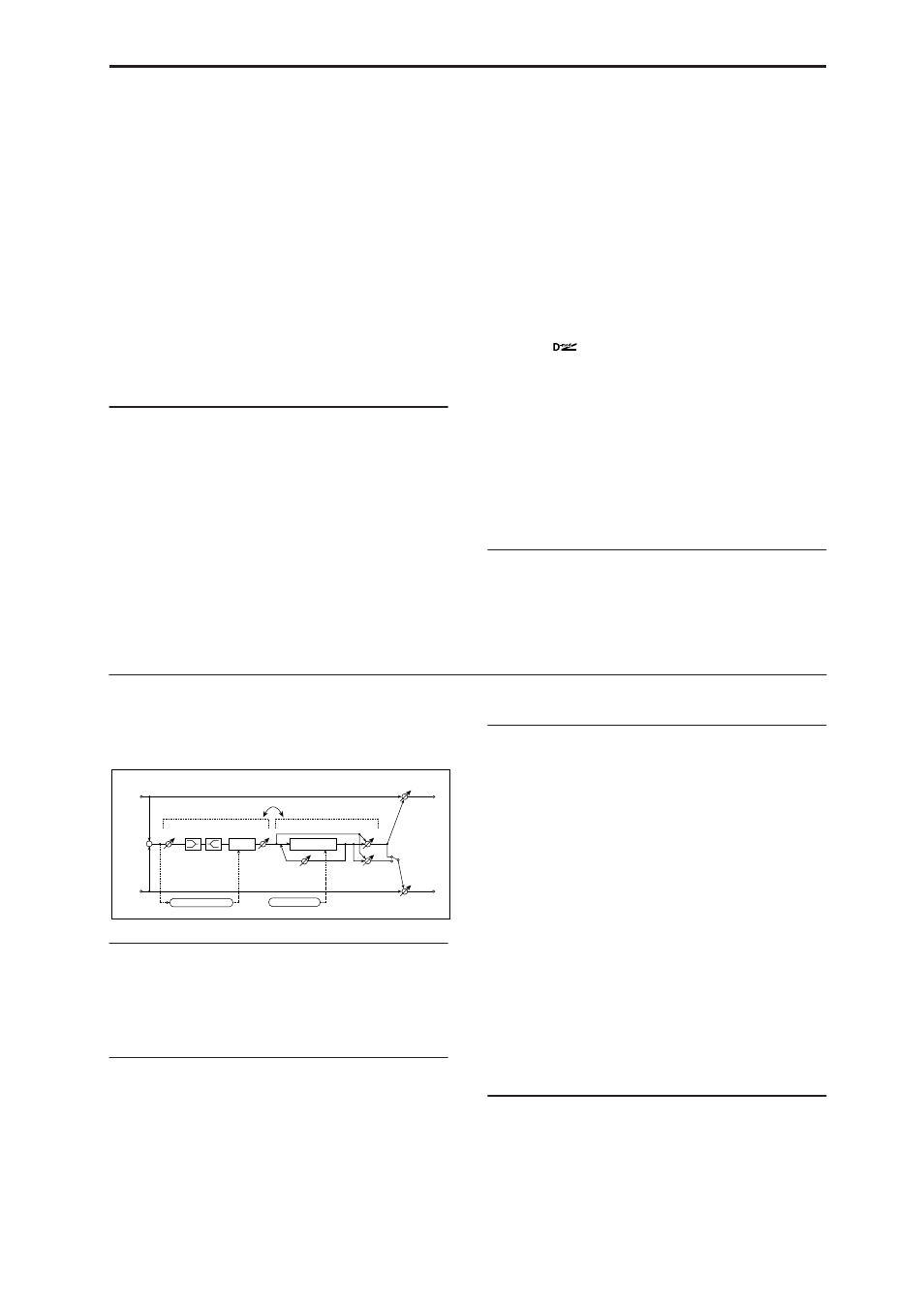

119: Comp - Phaser
This effect combines a mono compressor and a phaser.
You can change the order of the effects.
Routing
Routing [Comp ➝ Phaser, Phaser ➝ Comp]
Switches the order of the compressor and phaser.
p.860.
COMPRESSOR
Sensitivity [1…100]
Sets the sensitivity. p.764.
Attack [1…100]
Sets the attack level. p.764.
Output Level [0…100]
Sets the compressor output level. p.764.
PHASER
Pre EQ
EQ Trim [0…100]
Sets the EQ input level.
Pre LEQ Gain [dB] [–15…+15]
Sets the gain of the Low EQ.
Pre HEQ Gain [dB] [–15…+15]
Sets the gain of the High EQ.
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
PHASER
Manual [0…100]
Sets the frequency to which the effect is applied.
Depth [0…100]
Sets the depth of LFO modulation.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Compressor
LEQ HEQ EQ Trim
Comp
Output Level
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
—
+
