EXi: CX-3 Tonewheel Organ

232

Tone Adjust

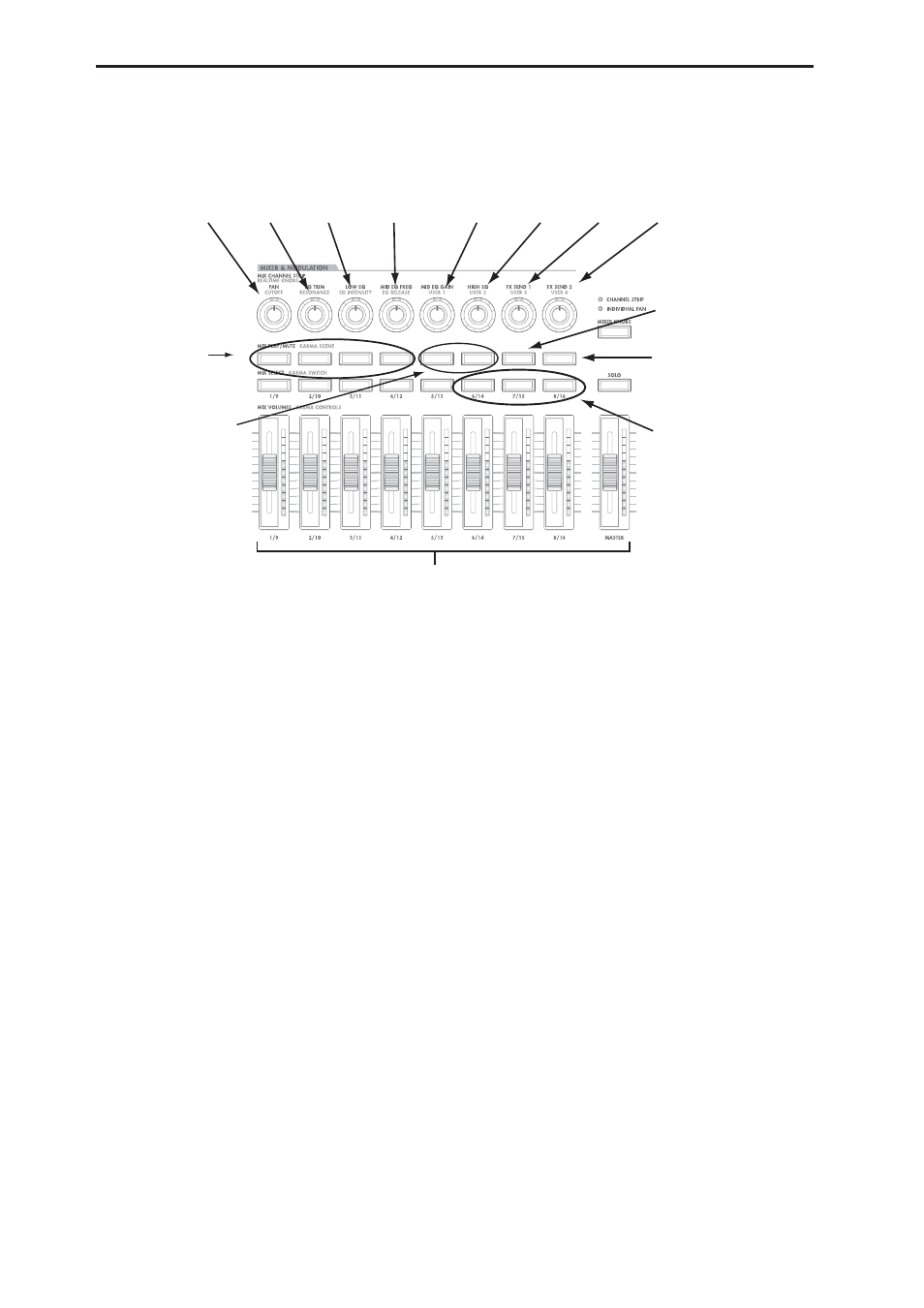

CX-3 Tone Adjust Default Settings

Tone Adjust provides an elegant physical interface to
the CX-3’s parameters. Most of the factory sounds use
the default layout, as shown above.

You can also customize the layout for individual
sounds, if desired. For instance, most of the factory
sounds use the sliders for the upper drawbars; if you
like, you can re-assign them to the lower drawbars
instead.

For more information about Tone Adjust, please see
“0–9f: Tone Adjust,” on page 26.

CX-3 Tone Adjust parameters

The CX-3 is substantially different from other EXi
instruments, so it does not support the Common Tone
Adjust parameters. Instead, it adds a number of its
own, unique parameters, as described below.

All of these parameter are absolute, which means that
they over-write the stored parameter values.

Note that these controls are separate for each EXi, as
opposed to being shared by both EXi in the Program.

Drawbars

• Upper Drawbars 1-9

• Lower Drawbars 1-9

• Upper EX Drawbars 1-4

• Lower EX Drawbars 1-4

• Noise level

• Leakage level

• Wheel Brake

• Overtone Level

• Key-On Click Level

Percussion

• Percussion On/Off

• Level Soft/Loud

• Decay Slow/Fast

• Harmonic 2nd/3rd

• EX Percussion levels 1-5

Vibrato/Chorus

• Vibrato/Chorus Type

• Upper Drawbars V/C On/Off

• Lower Drawbars V/C On/Off

Expression

• Expression Level

Amp

• Amp Gain

• EQ Bass

• EQ Mid

• EQ Treble

Split

• Split On/Off

Rotary Speaker

• On/Off

• Rotate/Stop

• Slow/Fast

Switches 1–4:
Percussion
On/Off,
Fast/Slow,
Loud/Soft,
2nd/3rd

V/C Type Amp Gain Expression Noise Level Leakage Level EQ Bass EQ Mid EQ Treble

Upper Drawbars 1–9

Switches 5–6:
Vibrato/Chorus
Lower On/Off,
Upper On/Off

Switches 14–16:
Rotary Speaker
On/Off,
Rotate/Stop,
Slow/Fast

Switch 7:
Wheel Brake

Switch 8:
Split On/Off
