Combination P8: Insert Effect 8–5: Insert FX
397
IFX1
[000…185]
IFX1 On/Off
[Off, On]
Chain to
[IFX2…IFX12]
Chain
[Off, On]
Pan(CC#8) (Post IFX Pan)
[L000…C064…R127]
Bus Sel. (Bus Select)
[L/R, 1…8, 1/2…7/8, Off]
Ctrl Bus (FX Control Bus)
[Off, 1, 2]
REC Bus
[Off, 1…4, 1/2, 3/4]
Send1
[000…127]
Send2
[000…127]
Note: You can use the control surface to control Send 1
and 2. See “Send1 (MFX1)” on page 394.
IFX2…12
These parameters specify the type of each insert effect,
its on/off status, chaining, and post-IFX mixer settings.
With the exception of Chain to and Chain, the
parameters are the same as for IFX1. For more
information, please see “IFX1” on page 127.
IFX2: Chain to
[IFX3…IFX12]
IFX3: Chain to
[IFX4…IFX12]
IFX4: Chain to
[IFX5…IFX12]
IFX5: Chain to
[IFX6…IFX12]
IFX6: Chain to
[IFX7…IFX12]
IFX7: Chain to
[IFX8…IFX12]
IFX8: Chain to
[IFX9…IFX12]
IFX9: Chain to
[IFX10…IFX12]
IFX10: Chain to
[IFX11…IFX12]
IFX11: Chain to
[IFX12]

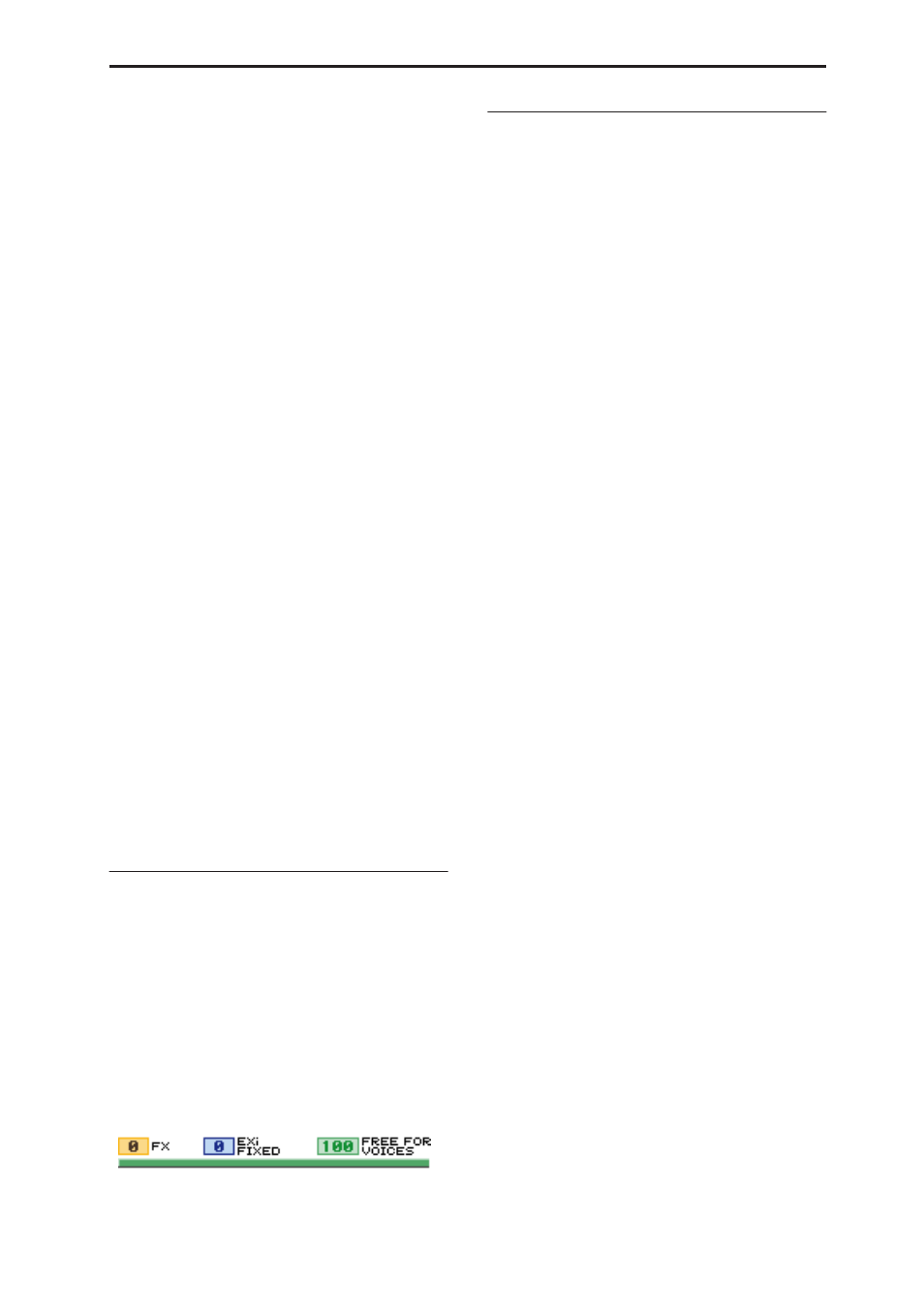

8–5b: Effect/EXi Fixed Resource Meter
FX
EXi FIXED
FREE FOR VOICES
The number of voices you can play is affected by how
effects and EXi are being used. This meter shows the
resource allocation as an approximate percentage (%)
of the total processing power.
For more information, see “CX-3 & STR-1: Limitations
on EXi fixed resources” on page 326, and “About
effects resources” on page 727.
▼ 8–5: Page Menu Commands
The number before each command shows its ENTER +
number-key shortcut. For more information on these
shortcuts, see “ENTER + 0-9: shortcuts for menu
commands” on page 138.
• 0: Write Combination. For more information, see
“Write Combination” on page 405.
• 1: Exclusive Solo. For more information, see
• 2: Copy Insert Effect. For more information, see
“Copy Insert Effect” on page 149.
• 3: Swap Insert Effect. For more information, see
“Swap Insert Effect” on page 150.
• 4: Insert IFX Slot. For more information, see “Insert
• 5: Cut IFX Slot. For more information, see “Cut IFX
• 6: Clean Up IFX Routings. For more information,
