Effect Guide
856
CHORUS/FLANGER
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
FLANGER
Delay Time [msec] [0.0…1350.0]
Sets the delay time.
Depth [0…100]
Sets the depth of LFO modulation.
Feedback [+/–100]
Sets the feedback amount. p.803.
Output Mode [Normal, Wet Invert]
Normal sends the output of the chorus/flanger to both
outputs with the same phase.
Wet Invert flips the phase of the chorus/flanger’s right
channel. This creates a pseudo-stereo effect, adding
depth to the sound.
However, if a mono-input type effect is connected after
this effect, the left and right sounds may cancel each
other, eliminating the chorus/flanger effect.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the effect balance of the chorus/flanger. p.780,
p.804.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
chorus/flanger.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the
chorus/flanger.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

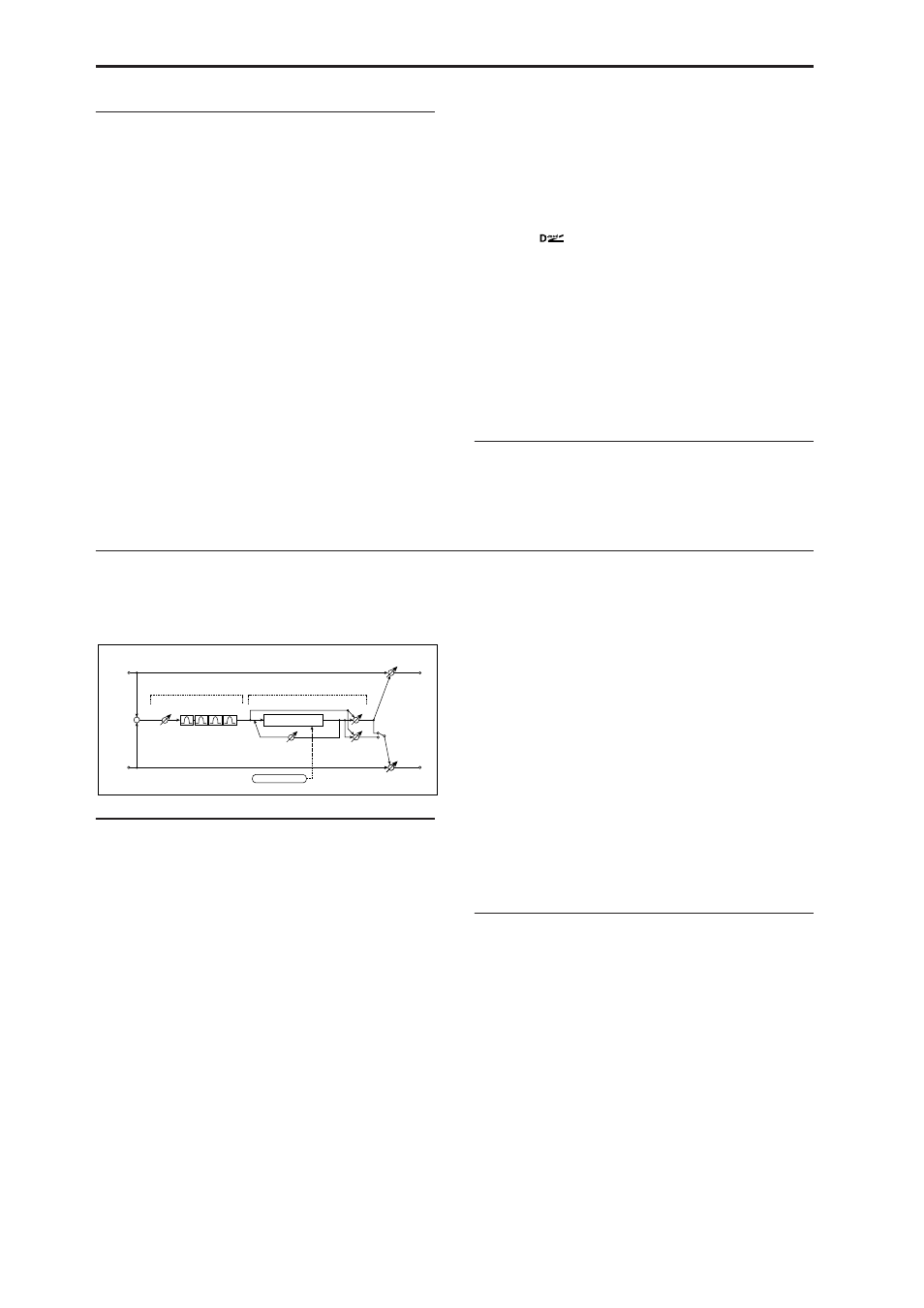

112: P4EQ - Phaser
This effect combines a mono four-band parametric
equalizer and a phaser.
PARAMETRIC EQ
Trim [0…100]
Sets the parametric EQ input level.
Band1 Fc [Hz] [20…1.00k]
Sets the center frequency of Band 1.
Q [0.5…10.0]
Sets the bandwidth of Band 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 1.
Band2 Fc [Hz] [50…5.00k]
Sets the center frequency of Band 2.
Q [0.5…10.0]
Sets the bandwidth of Band 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 2.
Band3 Fc [Hz] [300…10.00k]
Sets the center frequency of Band 3.
Q [0.5…10.0]
Sets the bandwidth of Band 3. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 3.
Band4 Fc [Hz] [500…20.00k]
Sets the center frequency of Band 4.
Q [0.5…10.0]
Sets the bandwidth of Band 4. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 4.
PHASER
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Frequency [Hz] [0.02…20.00]
Sets the LFO speed.
PHASER
Manual [0…100]
Sets the phaser’s center frequency.
Depth [0…100]
Sets the depth of LFO modulation.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
—
+
