Effect Guide
780
Common 1 or 2: the steps use the frequency or tempo
sync of the selected Common LFO, so that you can
synchronize multiple LFO-based effects together.
Common LFO Phase Offset [degrees] [+/–180]
Sets the phase offset when Type = Common 1 or
Common 2. p.777.
OUTPUT
Wet/Dry [–Wet, –99:1…–1:99,
Dry, 1:99…99:1, Wet]
This sets the balance between the effect and the dry
input. From –Wet to –1:99, the effect sound’s phase will
be reversed.
Source [Off…Tempo]
This selects a modulation source for Wet/Dry.
Amount [+/–100]
This sets the modulation amount for Wet/Dry.

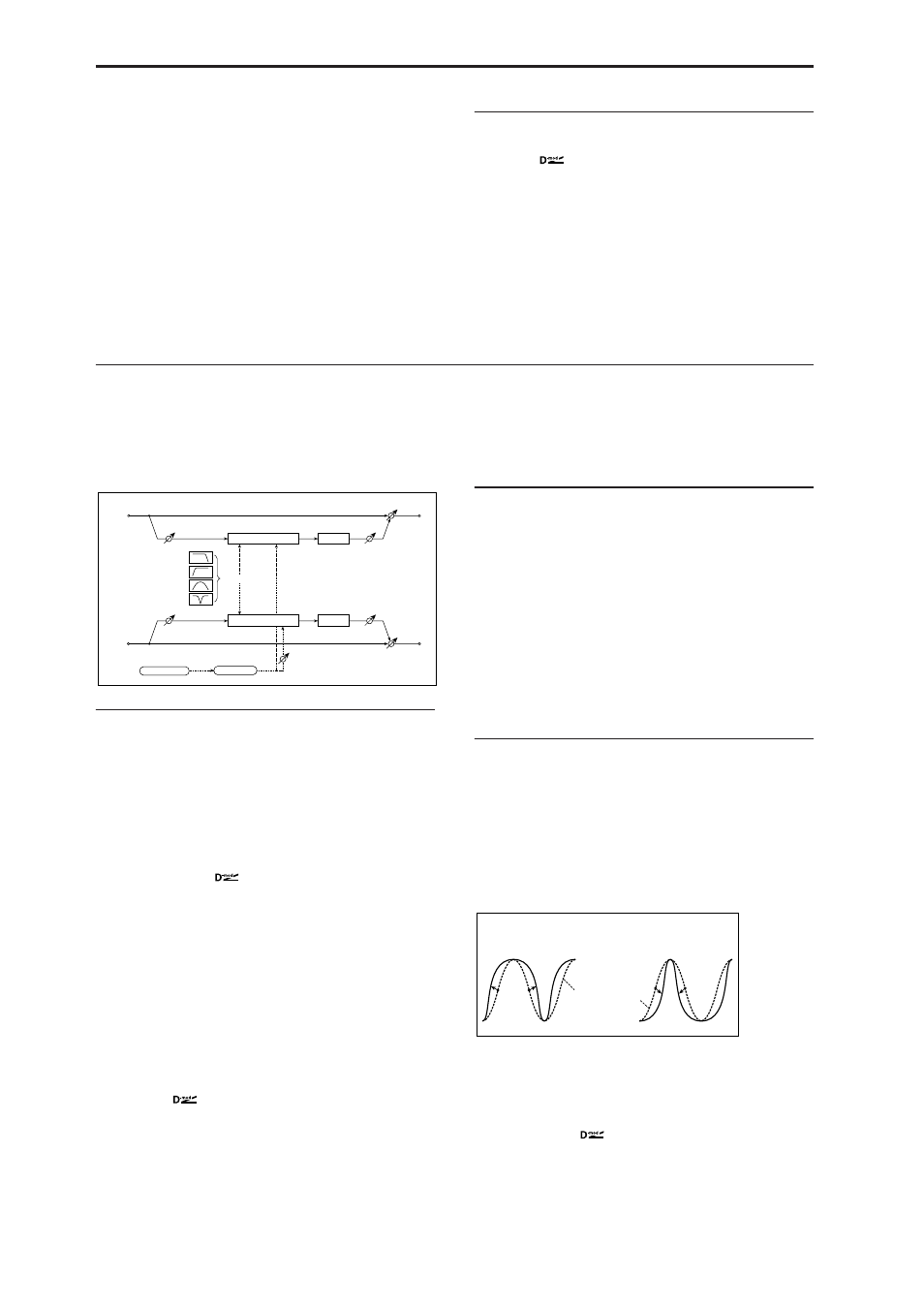

019: Multi Mode Filter
This multi-mode filter includes low pass, high pass,
band pass, and band reject modes. You can modulate
the cutoff frequency and resonance from either an LFO
or dynamic modulation.
MULTIMODE FILTER
Trim [0…100]
Sets the input level.
Type [LPF, HPF, BPF, BRF]
Selects the type of filter. For more information, see
“Filter Type” on page 61.
Cutoff Frequency [0…100]
Sets the cutoff frequency (center frequency).
Source [Off…Tempo]
Selects the modulation source of the cutoff.
Amount [+/–100]
Sets the modulation amount of the cutoff.
Depth [0…100]
Sets the depth to which the LFO will modulate the
cutoff frequency.
Resonance [0…100]
Sets the resonance amount.
Source [Off…Tempo]
Selects the source that will modulate the amount of
resonance.
Amount [+/–100]
Sets the amount by which the resonance will be
modulated.
DRIVER
Bypass [Check-box]
Switches distortion on/off within the filter.
Gain [0…100]
Sets the distortion amount.
Low Boost [0…100]
Sets the amount of low-range boost.
Output [0…100]
Sets the output level.
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Shape [+/–100]
This changes the curvature of the LFO Waveform,
which emphasizes or de-emphasizes the peaks, as
shown below.
Phase [degrees] [–180…+180]
Sets the LFO phase difference between the left and
right. See “Phase [degrees]” on page 779.
Frequency [Hz] [0.02…20.00]
This sets the LFO speed, in Hz. It applies only when
MIDI/Tempo Sync, below, is Off.
Source [Off…Tempo]
This selects a modulation source for the Frequency.
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Multimode Filter Driver
Driver
Trim Output
Output Trim
LFO Phase
LFO: Tri / Sine LFO Shape
LPF
HPF
BPF
BRF
Filter Type
Multimode Filter
LFO Shape
LFO Shape = 0...+100 LFO Shape = 0...—100
LFO Waveform=Sine
