Mono-Mono Serial 113: P4EQ - Multitap Delay
857
Resonance [+/–100]
Sets the resonance amount. p.805.
Output Mode [Normal, Wet Invert]
Selects whether the phaser output is mono or pseudo-
stereo. For more information, see “Output Mode” on
page 857.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the phaser effect balance. p.780, p.806.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the phaser.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the phaser.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.

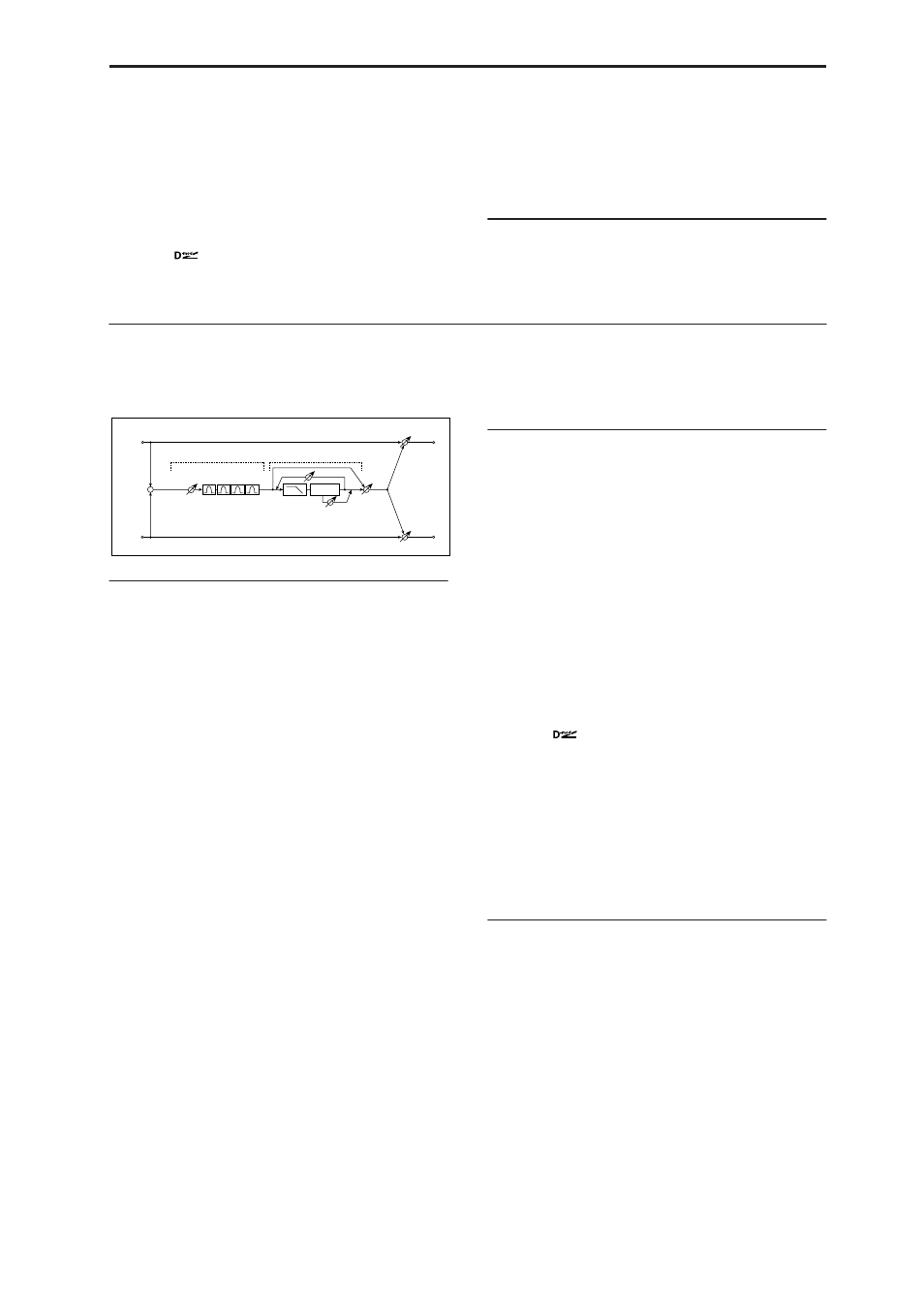

113: P4EQ - Multitap Delay
This effect combines a mono four-band parametric
equalizer and a multitap delay.
PARAMETRIC EQ
Trim [0…100]
Sets the parametric EQ input level.
Band1 Fc [Hz] [20…1.00k]
Sets the center frequency of Band 1.
Q [0.5…10.0]
Sets the bandwidth of Band 1. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 1.
Band2 Fc [Hz] [50…5.00k]
Sets the center frequency of Band 2.
Q [0.5…10.0]
Sets the bandwidth of Band 2. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 2.
Band3 Fc [Hz] [300…10.00k]
Sets the center frequency of Band 3.
Q [0.5…10.0]
Sets the bandwidth of Band 3. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 3.
Band4 Fc [Hz] [500…20.00k]
Sets the center frequency of Band 4.
Q [0.5…10.0]
Sets the bandwidth of Band 4. p.773.
Gain [dB] [–18…+18]
Sets the gain of Band 4.
MULTITAP DELAY
Tap1 Time [msec] [0.0…1360.0]
Sets the Tap1 delay time.
Tap2 Time [msec] [0.0…1360.0]
Sets the Tap2 delay time.
Tap1 Level [0…100]
Sets the Tap1 output level. p.832.
Feedback (Tap2) [+/–100]
Sets the Tap2 feedback amount.
High Damp [%] [0…100]
Sets the damping amount in the high range.
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the multitap delay effect balance. p.824.
Source [Off…Tempo]
Selects the Wet/Dry modulation source for the
multitap delay.
Amount [+/–100]
Sets the Wet/Dry modulation amount for the multitap
delay.
OUTPUT
This is the standard effects output section, with
modulatable control over wet/dry balance. For more
information, see “OUTPUT” on page 764.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
