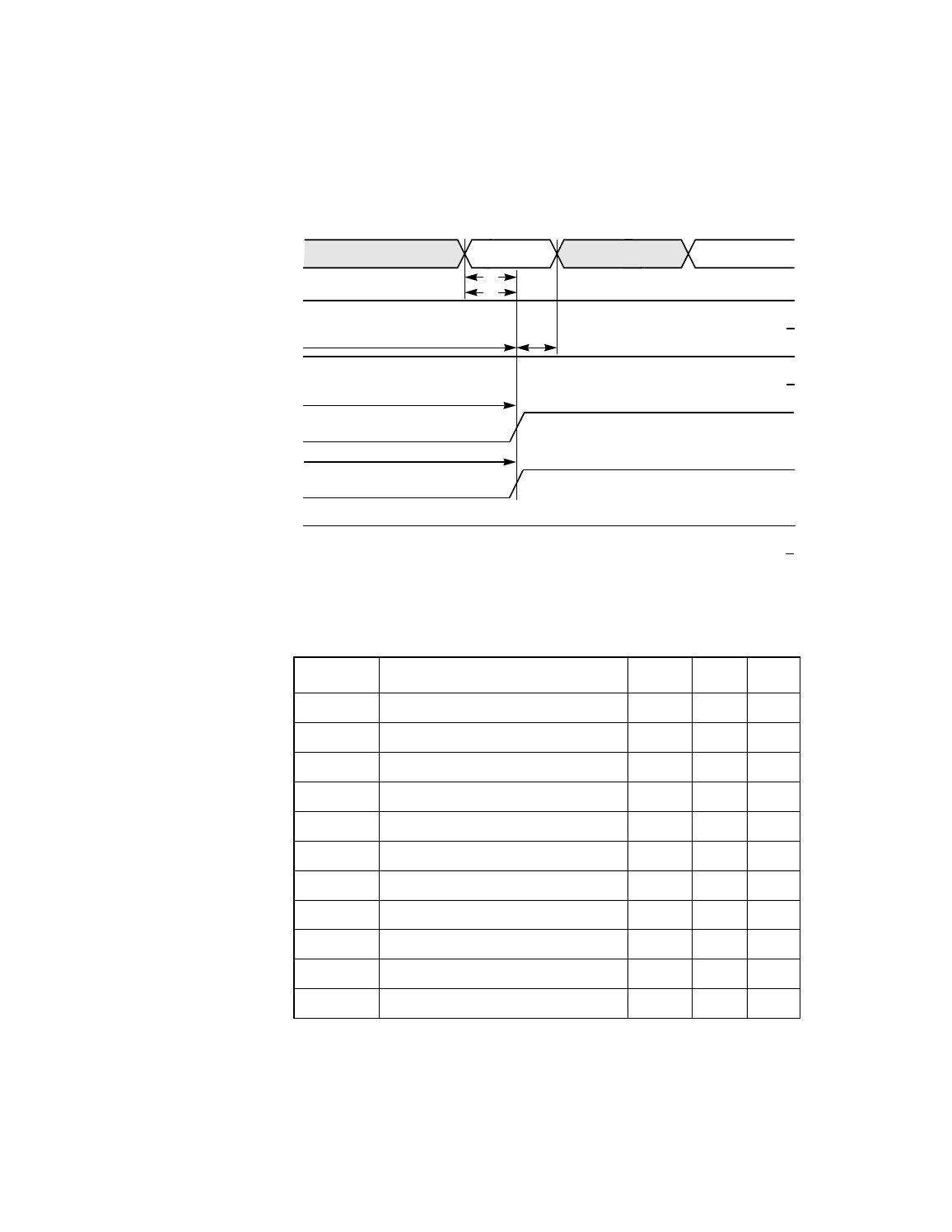

Figure 5.10 Flash ROM Read Cycle (Cont.)
Table 5.19 and Figure 5.11 provide the timing information for Flash ROM
write accesses.
Data driven by Flash)
MAD Bus
(Addr driven by LSI53C1030;
FLSHALE1/
(Driven by LSI53C1030)
FLSHALE0/
(Driven by LSI53C1030)
FLSHCE/
(Driven by LSI53C1030)
MOE/
(Driven by LSI53C1030)
BWE0/
(Driven by LSI53C1030)
t
4
t
9
t
5
Valid
t
6
t
8
t
7
Read
Data
Table 5.19 Flash ROM Write Cycle
Symbol Parameter Min Max Unit
t
11
Address setup to FLSHALE/ HIGH 25 – ns
t
12
Address hold from FLSHALE/ HIGH 25 – ns
t
13
FLSHALE/ pulse width 25 – ns
t
20
Data setup to BWE0/ LOW 40 – ns
t
21
Data hold from BWE0/ HIGH 30 – ns
t
22
BWE0/ pulse width 20 – ns
t
23
Address setup to BWE0/ LOW 75 – ns
t
24
FLSHCE/ LOW to BWE0/ HIGH 60 – ns
t
25
FLSHCE/ LOW to BWE0/ LOW 25 – ns
t
26
BWE0/ HIGH to RAMCE/ HIGH 25 – ns
t
27
FLSHCE/ pulse width 100 – ns
