MDE-4338A TopKAT™ Fuel Management System Operation Manual · February 2009 Page 15
Report Printer Interface Option - Standalone or Master Only System Overview
SW2-8 - Background Debug Module (BDM) Enable
(Only on M06333KXXXX CPU)
This switch must be OPEN for normal operation.
SW2-9 - Software Load Enable
(Only on M06333KXXXX CPU)
This switch must be OPEN for normal operation. When this switch is closed, it enables
loading the new M06333KXXXX CPU software.
SW2-10
(Only on M06333KXXXX CPU)
This switch is not used. Set to the Open position.
Report Printer Interface Option - Standalone or Master Only
A report printer interface is available as an option for the TopKAT. TopKAT is equipped with
a report printer have a printer controller board and a print mechanism mounted in the lower
right-hand side of the bezel. Printer output exits the base of the bezel through a weather-
protection printer door. This door should remain closed except while printing reports. The
system prompts you to open the printer door before printing reports. The report printer option
is available only at a standalone or master TopKAT unit.
Accessing the Printer
To access the printer, insert the key into the key slot located at the right-hand side of the bezel.
Turn it clockwise, then pull outward to open the bezel.
Printer Controller PCB

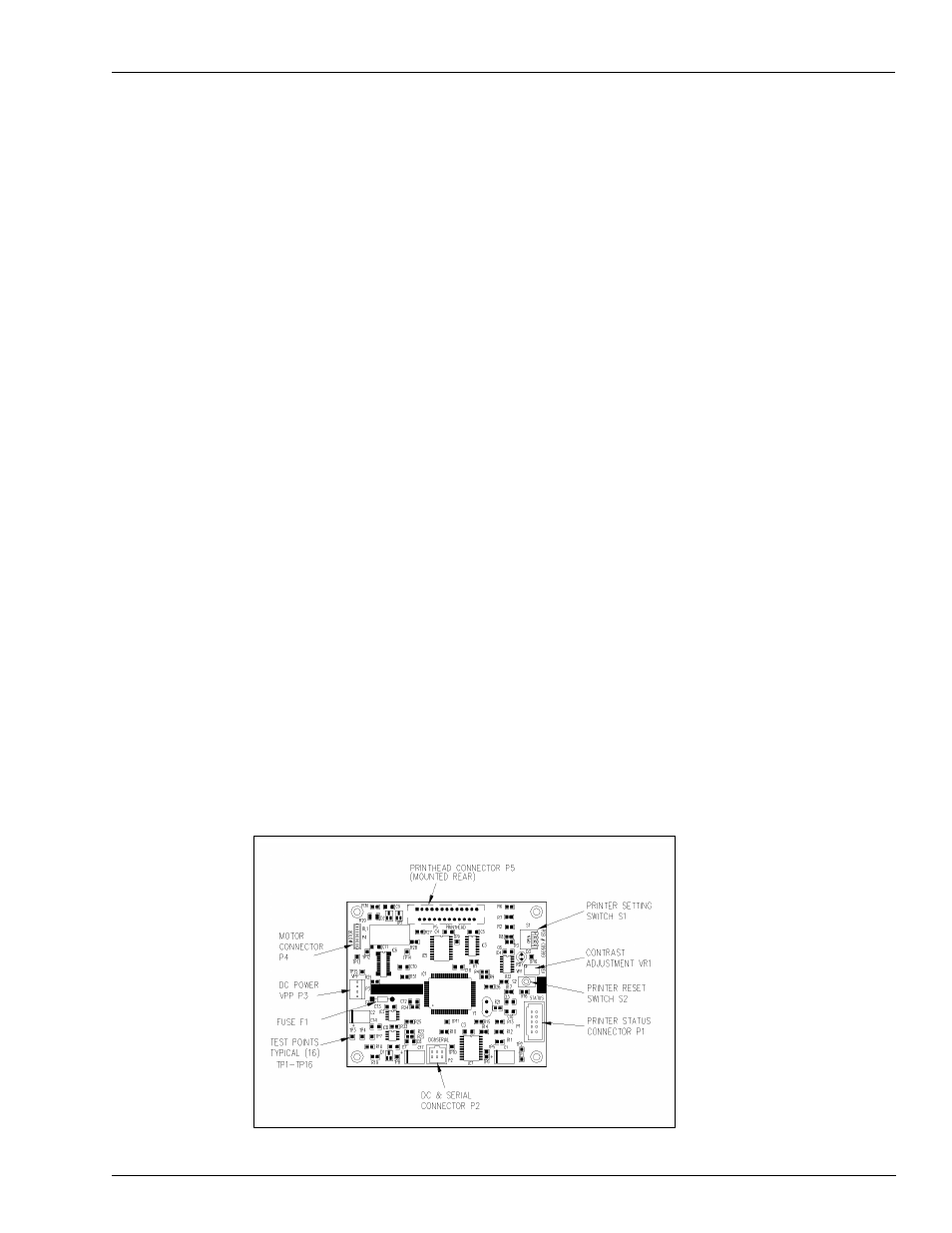

Figure 3-2: Printer Controller PCB Components
