3 Operation
3.1 M
ETHODS OF
O
PERATION
The CDM-IP IP-Centric Modem may be setup and operated using any of the following
methods:
User Interface Connection Modem
Functions CDM Functions Reference
Front Panel
Keypad ALL IP Address/Subnet
only
Chapter 4
Serial Remote
Control Serial RS-232/RS-485 via
Remote Control Port B ALL IP Address/Subnet
only
Chapter 5
Serial Command
Line Interface (CLI) Serial RS-232 via Console
Port ALL ALL Chapter 9
Telnet
Ethernet via 10/100 BaseT
IP interface ALL ALL Chapter 9
Web Server
Ethernet via 10/100 BaseT
IP interface ALL ALL Chapter 10
SNMP
Ethernet via 10/100 BaseT
IP interface ALL ALL Appendix A

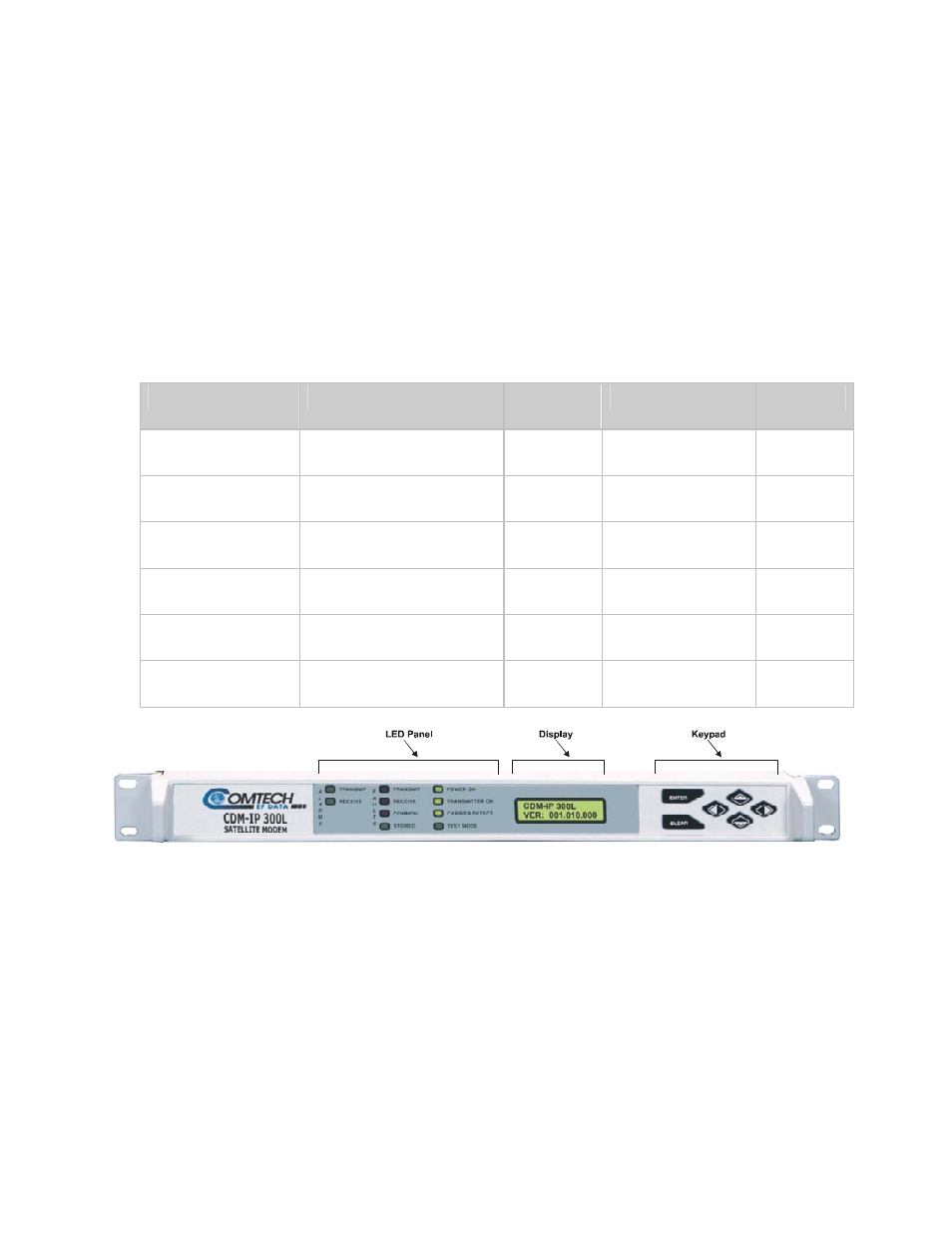

Figure 8. Front Panel
3.1.1 F
RONT
P
ANEL
O
PERATION
The front panel provides a menu driven, easy to operate, user interface that provides
control of all modem parameters plus selection of the IP address and network prefix
length. On the front panel of the unit, there are a keypad, the Liquid Crystal Display
(LCD), and ten LED indicators. The user enters data via the keypad, and messages are
displayed on the LCD. The LEDs indicate, in a summary fashion, the status of the unit.
Refer to Chapter 4 for detailed operations.
