Comtech EF Data CDM-IP 300L - Manual (Page 186)

CDM-IP 300L IP-Centric Satellite Modem Rev. 1
CD/CDMIP300L.IOM
160
6.2.3.2 Q
O
S C
ONFIGURATION
P
AGE
– M
IN
/M
AX
M
ODE

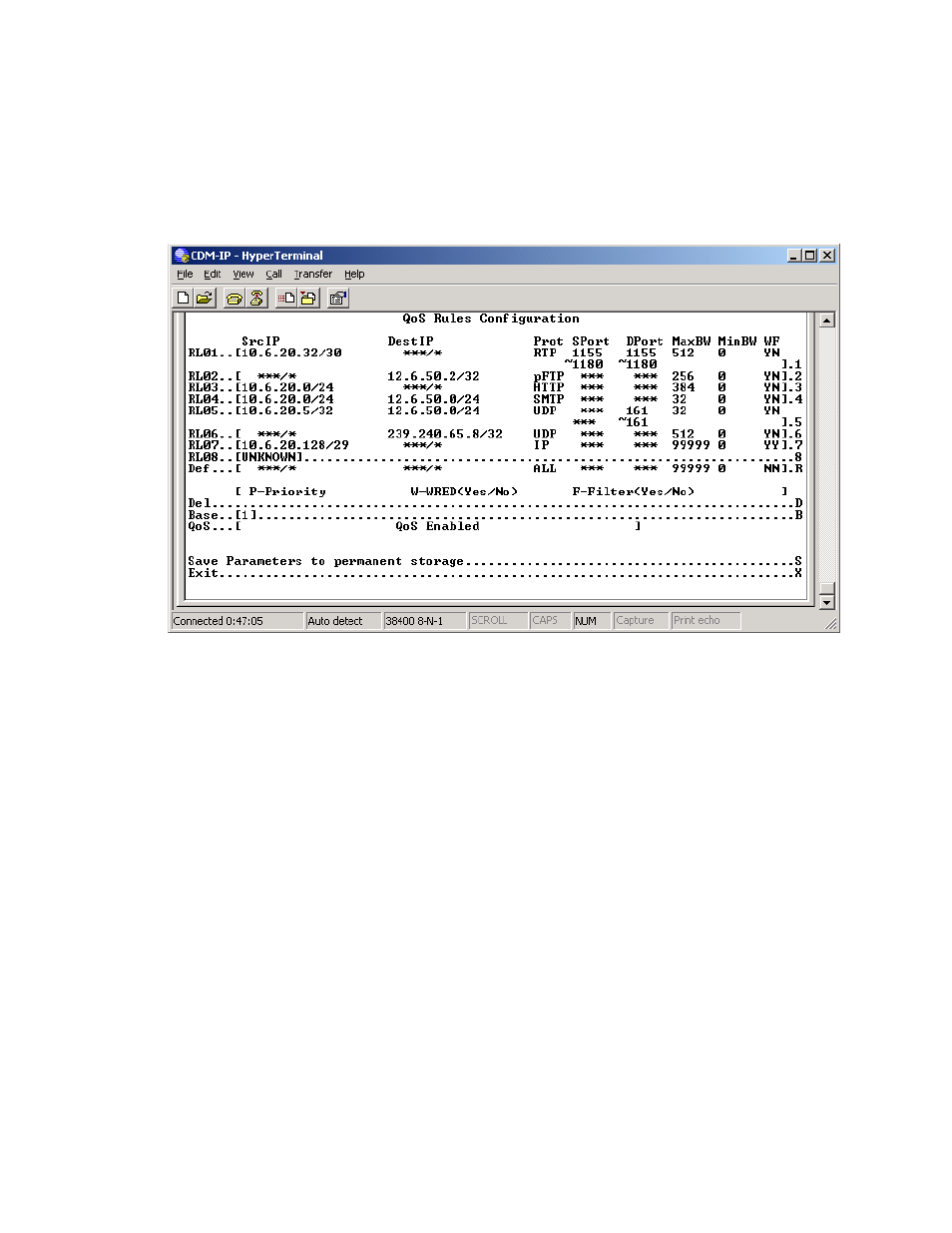

The QoS Rules Configuration page is activated from the QoS Configuration page.
In Minimum/Maximum Mode, the QoS Rules Configuration page contains the same
options/fields as in Max/Pri Mode with the following exceptions:
Priority is not assigned.
A Minimum Bandwidth can be assigned, or select enter to assign no Min Bandwidth
(displayed as ‘0’).
See Section 1.4.4.2 Minimum/Maximum Bandwidth QoS Mode for a more detailed
description of this QoS option.
