6.2.8.1.2 QoS Statistics Page

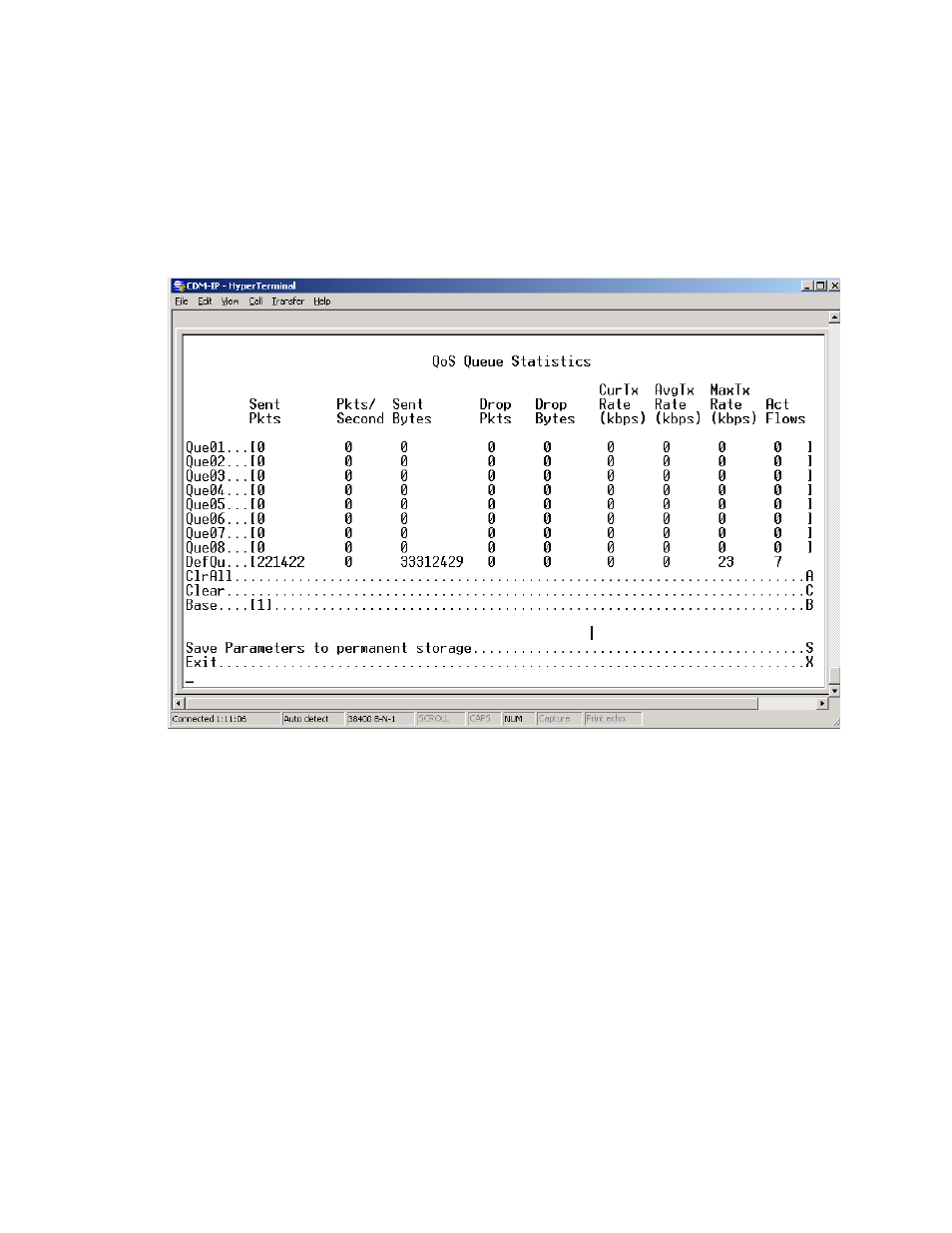

The QoS Statistics page is activated from the Statistics Menu page. The QoS Statistics
page displays the statistics for the number of IP packets routed, based upon the defined
QoS Rules, by the CDM-IP.
NOTE: In DiffServ QoS Mode, statistics for the various DiffServe DSCP Classes will be in the
following Queues:
Queue01 – Expedited Forwarding
Queue02 – Class 1 Precedence
Queue03 – Class 2 Precedence
Queue04 – Class 3 Precedence
Queue05 – Class 4 Precedence
Queue06 – Class 5 Precedence
Queue07 – Class 6 Precedence
Queue08 – Class 7 Precedence
Queue09 – Assured Forwarding Class 1
