6.2.8.5 R
EMOTE
P
ORT
B C
ONFIGURATION
P
AGE

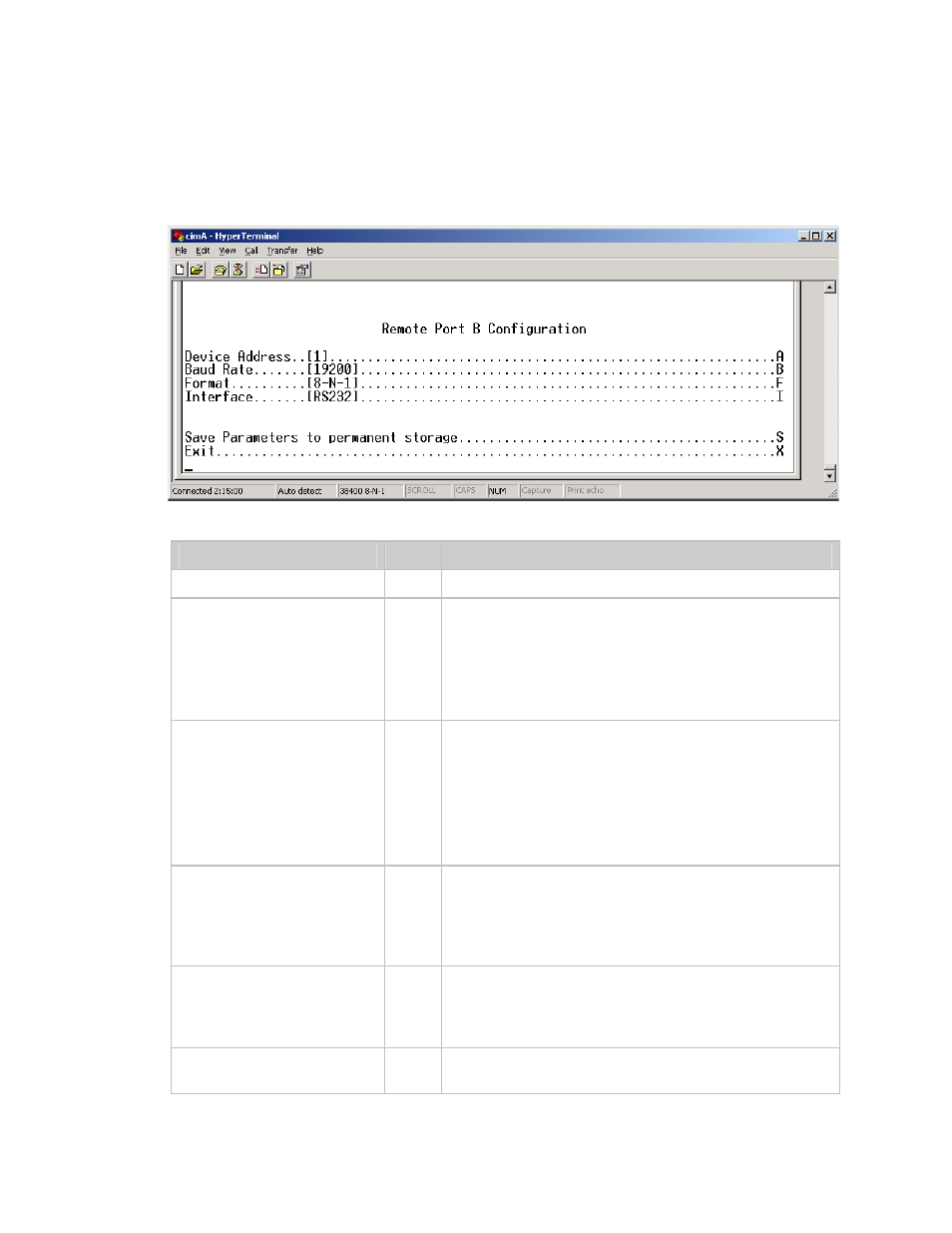

The Remote Port B Configuration page is activated from the Operations and
Maintenance page.
The Remote Port B Configuration page contains the following options/fields:
Menu Options/Fields Entry Description
Device Address A Valid ranges are from 0 to 9999
Baud Rate B The baud rate defines the speed of the serial interface.
The user can iterate through the possible rates by
successively selecting the menu option. This
parameter will assume one of the following bits per
second rates:
1200, 2400, 4800, 9600, 19200, 38400
Format F The Remote Port B interface supports three formats.
Each format describes the Data Bits, Parity, Stop Bits
that the serial interfaces will use to communicate.
The user can iterate through the list of possible values
by successively selecting the menu option. This
parameter will assume one of the following values:
[8-N-1], [7-E-2], [7-0-2]
Interface I The Interface setting configures the UART to operate in
one of three types of physical EIA-xxx interfaces (EIA-
232, EIA-485, EIA-485-4W). The user can iterate
through the list of possible values by successively
selecting the menu option.
Save Parameters S This option allows a user to save the current
configuration of the CDM-IP to permanent storage.
This configuration will be restored on each successive
power cycle of the CDM-IP.
Exit X This option allows a user to exit the current menu and
return to its parent menu.
