6.2.8.1.1 IP Statistics Page

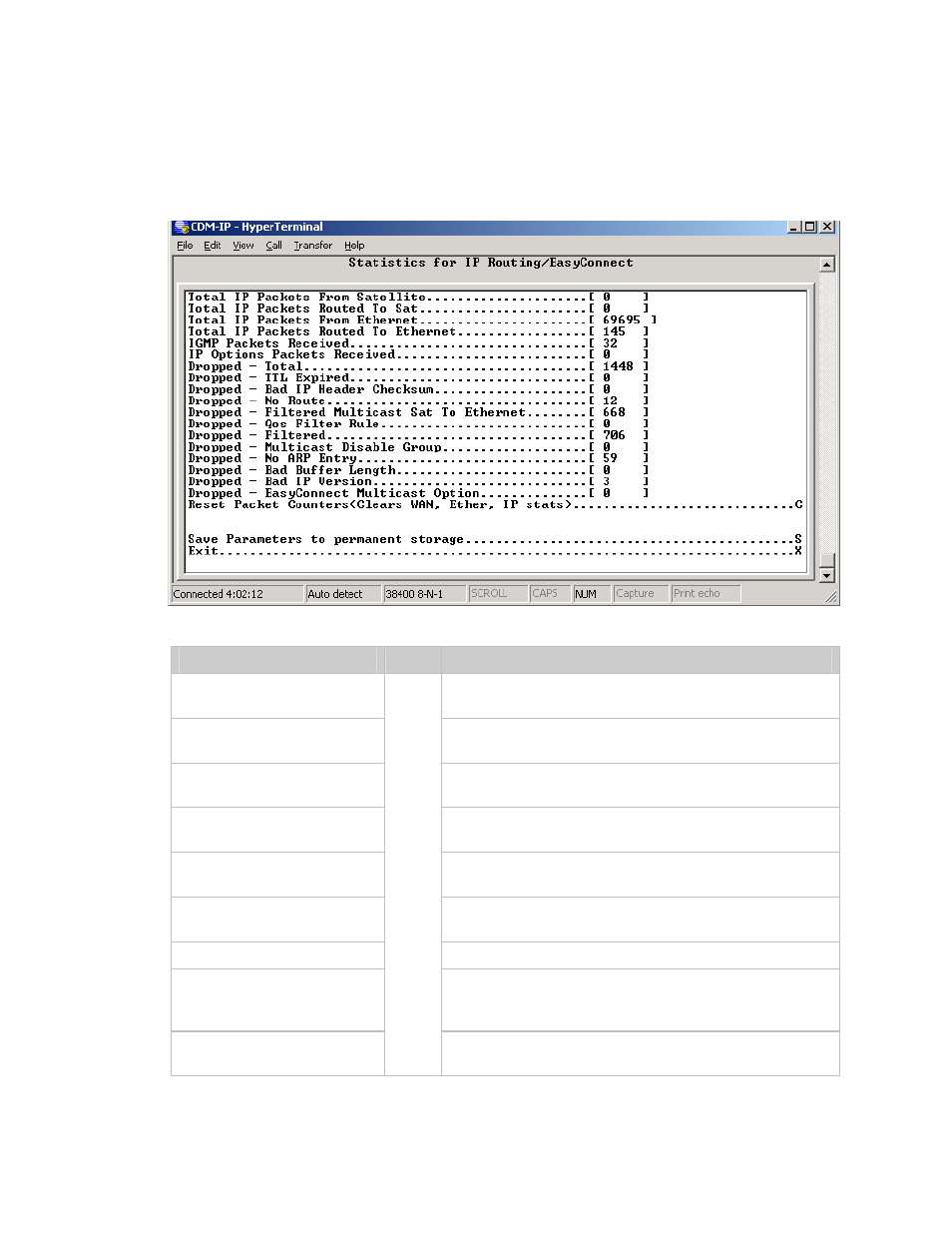

The IP Statistics page is activated from the Statistics Menu page. The IP Statistics page
displays counts of the number of packets routed or dropped in the CDM-IP.
The IP Statistics page contains the following options/fields:
Menu Options/Fields Entry Description
Total IP Packets From
Satellite WAN Statistics Page, Rx HDLC Packet Count
Total IP Packets Routed To
Sat WAN Statistics Page, Tx HDLC Packet Count
Total IP Packets From
Ethernet Ethernet Statistics Page, Rx Good Frames
Total IP Packets Routed To
Ethernet Ethernet Statistics Page, Tx Good Frames
IGMP Packets Received Internet Group Management Packets received (used
for management of multicast traffic).
IP Options Packets
Received Number of IP Options packets received.
Dropped - Total Total Dropped Packets
Dropped - TTL Expired Total Dropped Packets due to Time To Live counter
expired (TTL limits the number of hops, or seconds,
before a packet reaches it’s destination).
Dropped - Bad IP Header
Checksum Total Dropped Packets due to incorrect IP Header
Checksum.
