CDM-IP 300L IP-Centric Satellite Modem Rev. 1
CD/CDMIP300L.IOM
161

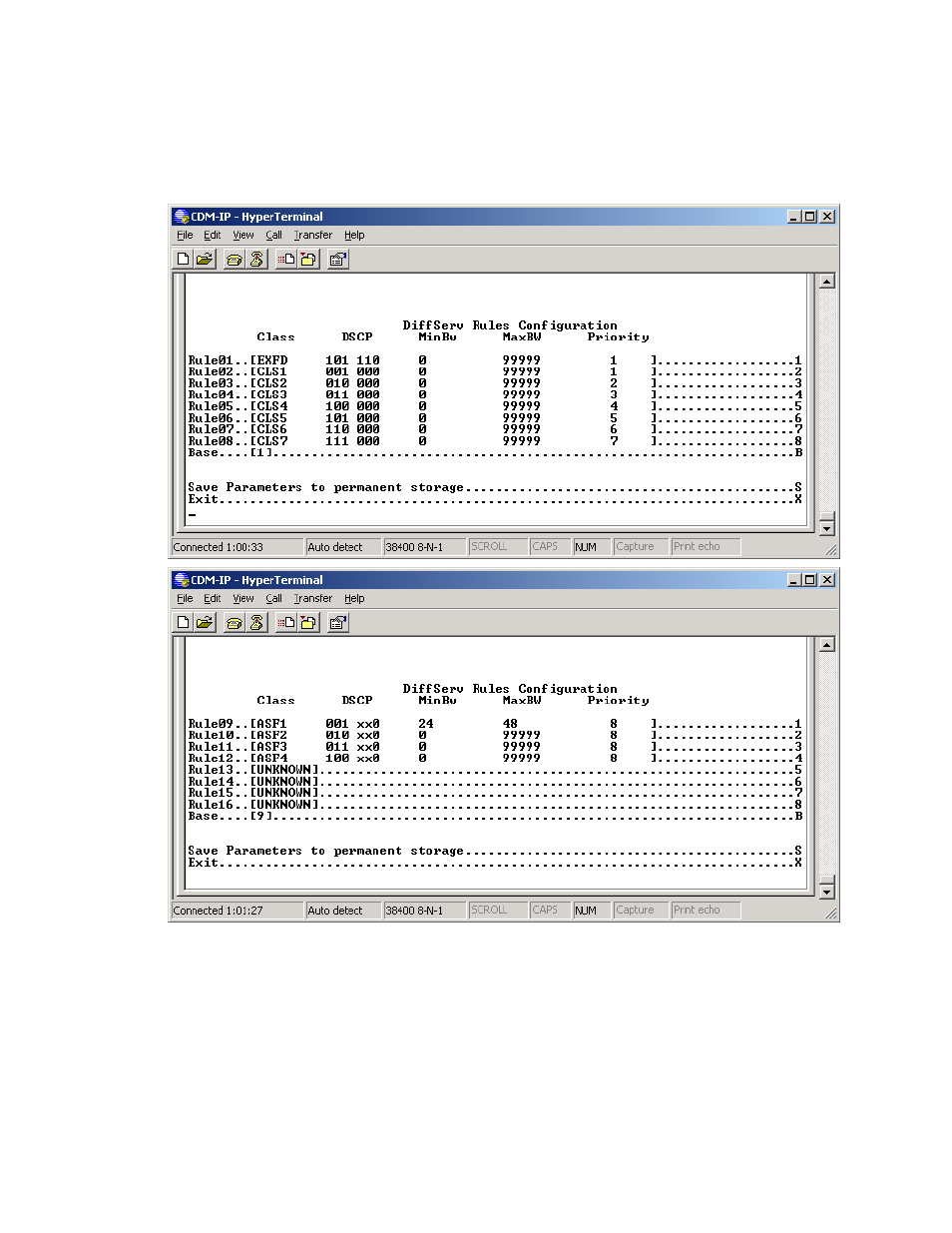

6.2.3.3 Q
O
S C
ONFIGURATION
P
AGE
– D
IFF
S
ERV
M
ODE
The QoS Rules Configuration page is activated from the QoS Configuration page.
In DiffServ Mode, the CDM-IP will prioritize all traffic by the DSCP value contained
within the IP header of each packet. All packets that do not have a DSCP value will be
placed in the Default Queue and have a Priority of 9.
Configuration of DiffServe Rules is only allowed for Assured Forwarding Classes 1-4
(Rule 9-12), where a Minimum and Maximum Bandwidth can be assigned.
See Section 1.4.4.3 DiffServ QoS Mode for a more detailed description of this QoS
option.
